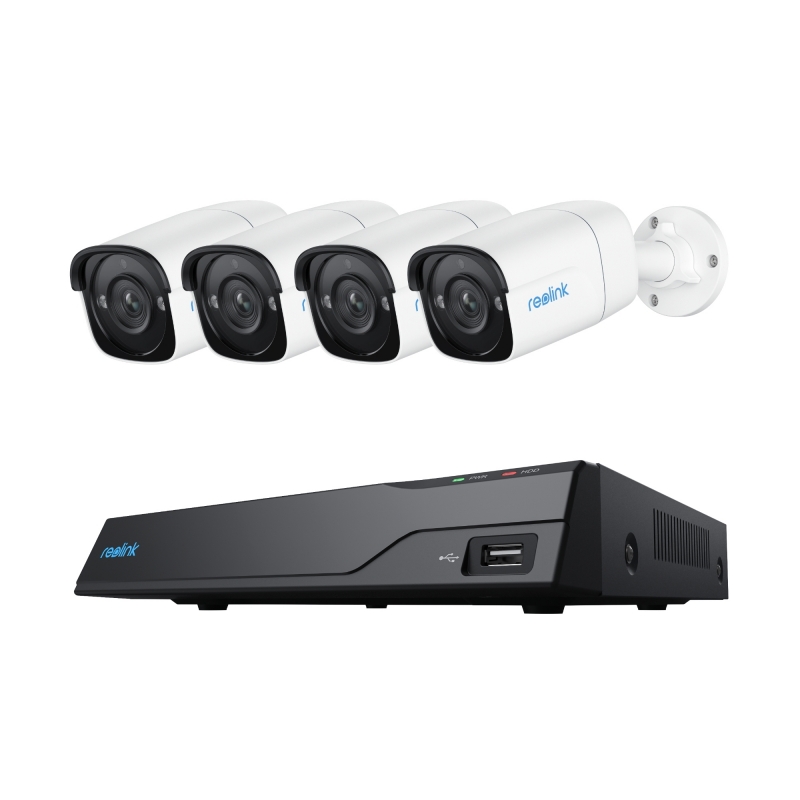

Reolink NVS8-5MB4 - 5MP Security Camera System, 8-Channel NVR with Built-in 2TB HDD, Person Vehicle Animal Detection

    Reolink NVS8-5MB4 - 5MP Security Camera System, 8-Channel NVR with Built-in 2TB HDD, Person/Vehicle/Animal Detection

    €422.06 Tax included
    Article Code: 611120
    2-Year Italian Warranty: logo ita

    Reolink NVS8-5MB4 - 5MP Security Camera System, 8-Channel NVR with Built-in 2TB HDD, Person/Vehicle/Animal Detection, Wired, Bullet, RJ-45, Indoor/outdoor, 850 nm, 256 GB

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    With the PoE surveillance system, which includes an 8-channel NVR and 4 PoE cameras, you can monitor multiple areas simultaneously. With a 2TB HDD, you can record and store videos continuously 24/7. Thanks to the 5MP Super HD resolution and infrared LEDs, you can identify rich details even at night. With real-time motion alerts, you receive immediate notifications of suspicious movements in your home.

    24/7 Recording
    Continuous recordings directly to your hard drive with expandable storage.

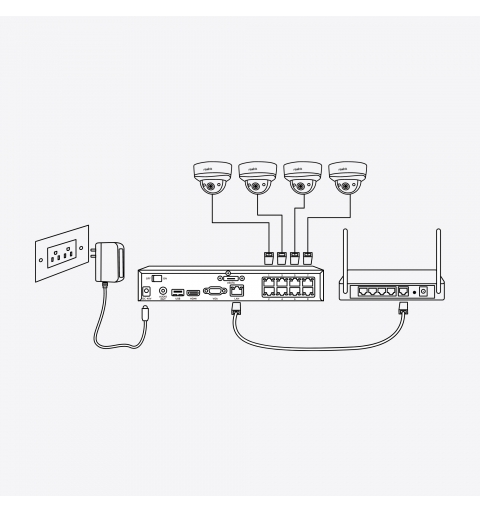

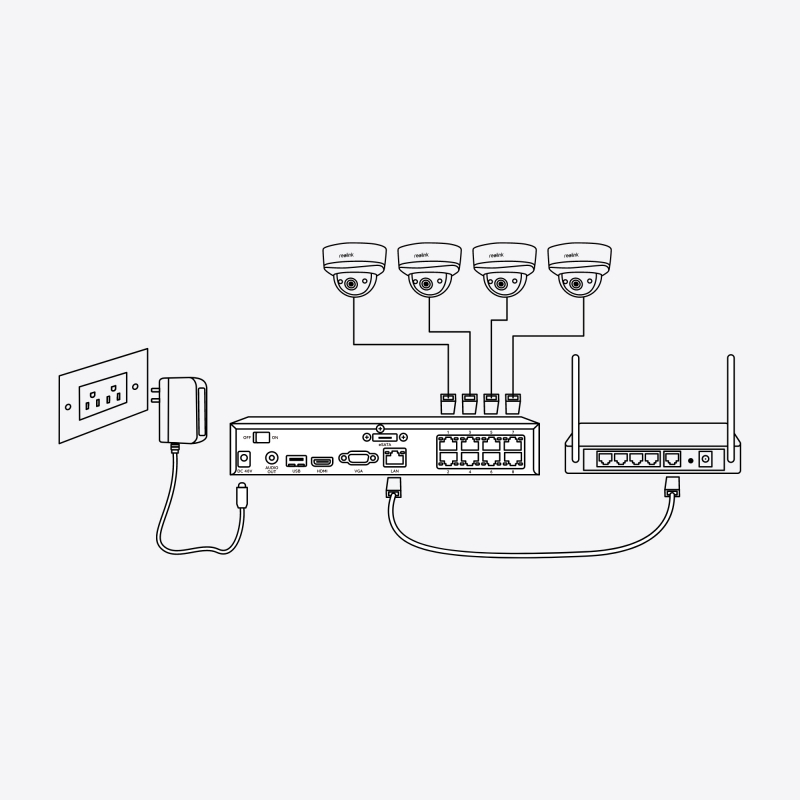

    Installation Made Easy
    The PoE technology can transmit both data and power via only one Ethernet cable, streamlining setup.

    2K+ 5MP Enhanced Definition
    Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.

    Send Alerts When It Matters
    With advanced algorithms, it accurately distinguishes between humans,vehicles and pets, providing tailored alerts and notifications to keep you informed about events that matter.

    Talk Anytime, from Anywhere
    Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.

    Enhanced Nighttime Surveillance
    Stay vigilant around the clock with infrared LEDs, providing clear and crisp images at night, ensuring reliable monitoring and security.

    Up to 12TB Storage Capacity
    Store videos locally on a pre-installed 2TB HDD (upgradable to 12TB).

    Customize Your Own System
    This system can be expanded with up to 8 Reolink IP cameras, so you can enjoy the fun of DIY your own security system.

    Stay Connected via Your Phone/PC
    Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.

    Reolink NVS8-5MB4 - 5MP Security Camera System, 8-Channel NVR with Built-in 2TB HDD, Person/Vehicle/Animal Detection. Connectivity technology: Wired, Surveillance camera form factor: Bullet, Camera interface: RJ-45. Channels quantity: 8 channels, Storage media type: HDD, Number of simultaneously playbacked channels: 4 channels. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Power source type: DC, PoE, DC output current: 1 A, DC output voltage range: 48 - 53 V. Mobile operating systems supported: Android, iOS, Browser supported: IE, Edge, Chrome, Firefox, Safari, Number of users: 20 user(s)
    Macchina fotografica
    Tecnologia di connessioneCablato
    Fotocamera integrataSì
    Fattore di forma della videocamera di sorveglianzaPallottola (forma)
    interfaccia fotocameraRJ-45
    Modalità giorno/notteSì
    Lunghezza d'onda a infrarossi850 nm
    Modalità notteSì
    Posizionamento supportatoInterno/esterno
    Lettore di schede per fotocamera integratoSì
    Dimensione massima della scheda di memoria della fotocamera256 GB
    Schede di memoria compatibili con la fotocameraMicroSD (TransFlash)
    Apertura massima1,6
    Megapixel5 MP
    Codice di protezione internazionale (IP)IP66
    Funzioni di protezioneImpermeabile
    Riconoscimento movimento videoSì
    Registratore
    registratore inclusoSì
    Quantità di canali8 canali
    Numero di canali riprodotti simultaneamente4 canali
    Tipologia disco rigidoHDD
    Capacità massima di memoria12 TB
    Modalità registrazione video720p, 1080p
    Potenza Power over Ethernet (PoE) per porta25 W
    Collegamento in rete
    Collegamento ethernet LANSì
    Standard di reteIEEE 802.3af, IEEE 802.3at
    Tipo di interfaccia EthernetFast Ethernet, Gigabit Ethernet
    WAN EthernetSì
    Gestione energetica
    Tipologia alimentazionedC, PoE
    Volt CC in uscita12
    Ampère CC in uscita1 A
    Gamma di tensione di uscita CC48 - 53 V
    Consumo di energia della fotocamera (tipico)12 W
    Consumo di energia tipico registratore10 W
    Supporto Power over Ethernet (PoE)Sì
    Audio
    Microfono incorporatoSì
    Altoparlanti incorporatiSì
    Requisiti di sistema
    Compatibilità MacSì
    Numero di utenti20 utente(i)
    Condizioni ambientali
    Temperatura di funzionamento della videocamera (T-T)-10 - 55 °C
    Umidità relativa al funzionamento della fotocamera (H-H)10 - 90%
    Temperatura di funzionamento del registratore (T-T)-10 - 45 °C
    Umidità relativa di funzionamento del registratore (H-H)10 - 90%
    Dettagli tecnici
    Formati di compressione videoH.264, H.265
    Tasto resetSì
    Dimensioni e peso
    larghezza fotocamera6,8 cm
    profondità fotocamera18,8 cm
    altezza fotocamera6,3 cm
    peso fotocamera452 g
    larghezza registratore26 cm
    profondità registratore23 cm
    altezza registratore4,1 cm
    peso registratore1,4 kg
    Reolink
     611120
      In Stock

    Data sheet
    Built-in camera
    Yes
    Windows operating systems supported
    Yes
    Ethernet LAN
    Yes
    Networking standards
    IEEE 802.3af, IEEE 802.3at
    Ethernet LAN (RJ-45) ports
    9
    Mac compatibility
    Yes
    Power over Ethernet (PoE)
    Yes
    HDD capacity
    2 TB
    Protection features
    Waterproof
    Card reader integrated
    No
    HDMI ports quantity
    1
    Video recording modes
    720p, 1080p
    Night mode
    Yes
    International Protection (IP) code
    IP66
    Virtual assistant
    Google Assistant
    Power source type
    DC, PoE
    Placement supported
    Indoor/outdoor
    Connectivity technology
    Wired
    Day/night mode
    Yes
    Sensor type
    CMOS
    Optical sensor size
    25.4 / 2.7 mm (1 / 2.7")
    Night vision distance
    30 m
    LED type
    IR
    Ethernet interface type
    Fast Ethernet, Gigabit Ethernet
    Video motion detection
    Yes
    Number of cameras
    4
    Infrared (IR) cut-off filter
    Yes
    Maximum aperture number
    1.6
    Fixed focal length
    2.8 mm
    Video compression formats
    H.264, H.265
    Built-in speaker(s)
    Yes
    Built-in microphone
    Yes
    Reset button
    Yes
    DC output voltage
    12
    DC output current
    1 A
    Number of users
    20 user(s)
    Mobile operating systems supported
    Android, iOS
    USB 2.0 ports quantity
    2
    VGA (D-Sub) ports quantity
    1
    Power over Ethernet (PoE) ports quantity
    8
    Ethernet WAN
    Yes
    Supported network protocols
    HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
    Channels quantity
    8 channels
    Line outputs (RCA)
    1
    Megapixel (approx.)
    5 MP
    Power over Ethernet (PoE) power per port
    25 W
    Storage media type
    HDD
    Browser supported
    IE, Edge, Chrome, Firefox, Safari
    Infra-red wavelength
    850 nm
    Camera resolution
    2880 x 1616 pixels
    Number of illumination LEDs
    2
    Number of HDDs installed
    1
    Camera depth
    18.8 cm
    Number of simultaneously playbacked channels
    4 channels
    Maximum storage capacity
    12 TB
    HDD interface
    SATA
    Number of HDDs supported
    2
    Surveillance camera form factor
    Bullet
    Camera interface
    RJ-45
    Camera card reader integrated
    Yes
    Camera maximum memory card size
    256 GB
    Camera compatible memory cards
    MicroSD (TransFlash)
    Recorder included
    Yes
    eSATA ports quantity
    1
    Playback resolutions supported
    3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
    External HDD support
    Yes
    DC output voltage range
    48 - 53 V
    Camera power consumption (typical)
    12 W
    Recorder power consumption (typical)
    10 W
    Camera operating temperature (T-T)
    -10 - 55 °C
    Camera operating relative humidity (H-H)
    10 - 90%
    Recorder operating temperature (T-T)
    -10 - 45 °C
    Recorder operating relative humidity (H-H)
    10 - 90%
    Camera width
    6.8 cm
    Camera height
    6.3 cm
    Camera weight
    452 g
    Recorder width
    26 cm
    Recorder depth
    23 cm
    Recorder height
    4.1 cm
    Recorder weight
    1.4 kg
