Daikin 2AMXF40A + ATXF35A + ATXF25A Siesta Air Conditioner Dual Split 12000 + 9000 Btu A++/A+ Inverter Wifi Ready R32

Daikin 2AMXF40A + ATXF35A + ATXF25A Siesta Air Conditioner Dual Split 12000 + 9000 Btu A++/A+ Inverter Wifi Ready R32

Daikin air conditioners have always been a symbol of high efficiency and reliable performance, both in cooling and heating. With the new ATXF model, Daikin introduces the eco-friendly R32 refrigerant, which reduces environmental impact by 68% compared to R-410A systems. Additionally, energy consumption is directly reduced thanks to its high energy efficiency rating (A++), without compromising on maximum comfort.

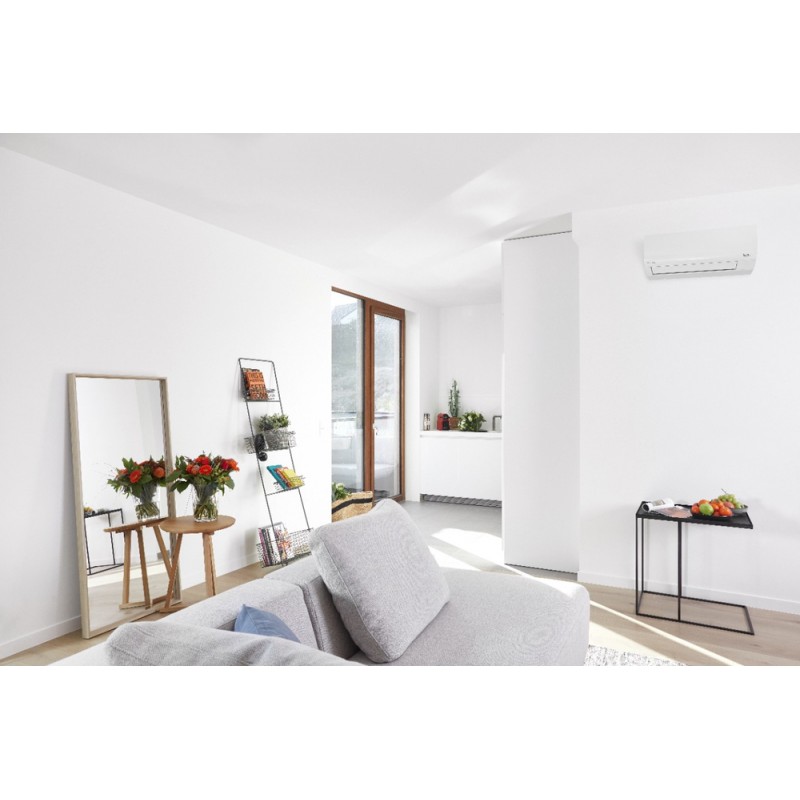

Featuring an extremely elegant and compact design that easily fits into any interior décor. Beyond ecology and design, the unit offers high-tech performance with smart features, such as built-in Smart Control that allows you to manage your air conditioner from your smartphone using the dedicated Daikin App.

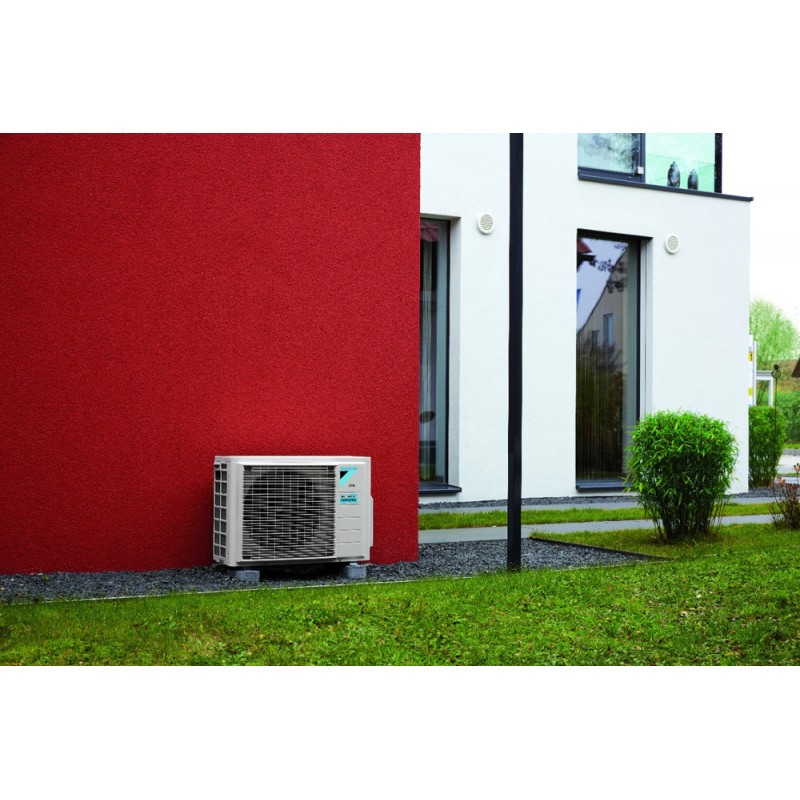

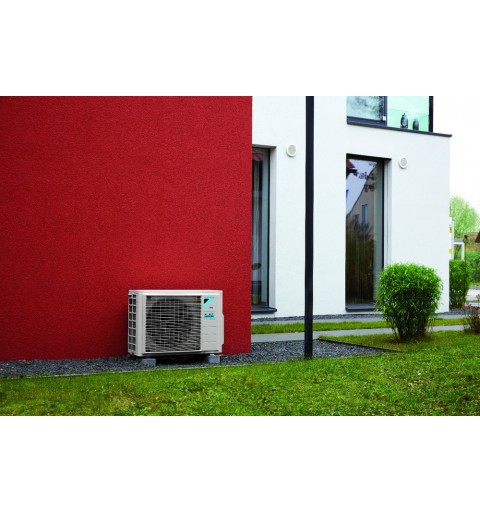

Efficiency and reliability are also guaranteed through the easy installation of the outdoor unit anywhere you choose, with a heat exchanger treated with anti-corrosion coating (Blue Fin) that ensures high resistance even in the harshest weather conditions.

Technical Specifications

• SEER: 6.22

• SCOP: 4.06

• Energy Class (cooling): A++

• Energy Class (heating): A+

• Power: 9000 + 12000 BTU

• Covered Area: 15–25 m² for 9000 BTU unit, 25–40 m² for 12000 BTU unit



Cooling Performance:

• Capacity: 4.0 kW

• Power Input: 0.90 kW

• Operating Range (Min.~Max): 10~46 ℃;

Heating Performance:

• Capacity: 4.2 kW

• Power Input: 0.99 kW

• Operating Range (Min.~Max): -15~18 ℃;



Noise Level:

• Indoor Unit Sound Pressure: 21 dBA

• Indoor Unit Sound Power: 55 dBA

• Outdoor Unit Sound Power: 60 dBA



Data:

• Power Supply (V/Hz/Φ): 230/50/1

• Refrigerant: R-32

• Piping Connections (Liquid/Gas): 6.35 (1/4") / 9.5 (3/8") mm/inch

• Max Piping Length: 30 m

• Max Elevation Difference (IU - OU): 15 m

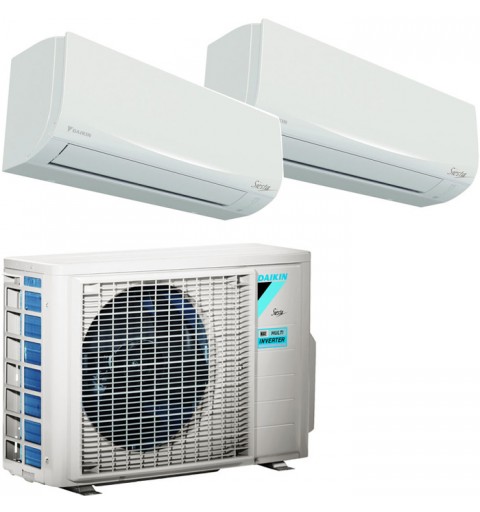

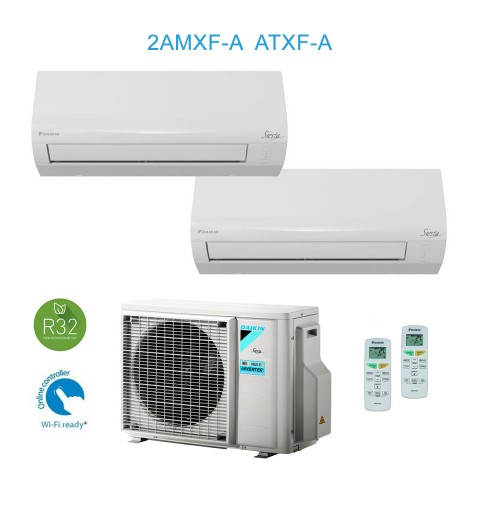

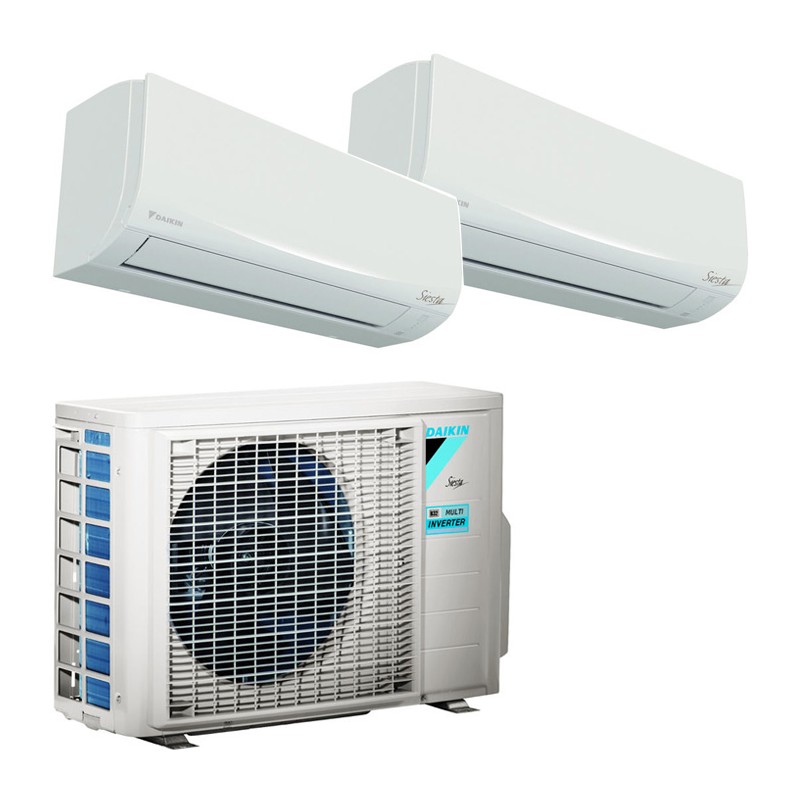

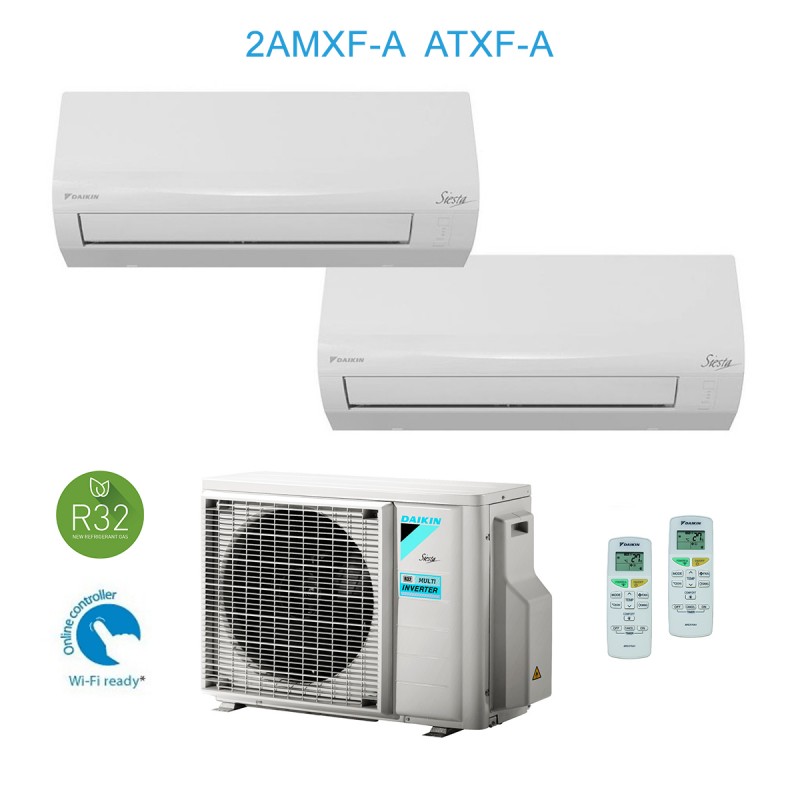

Includes:

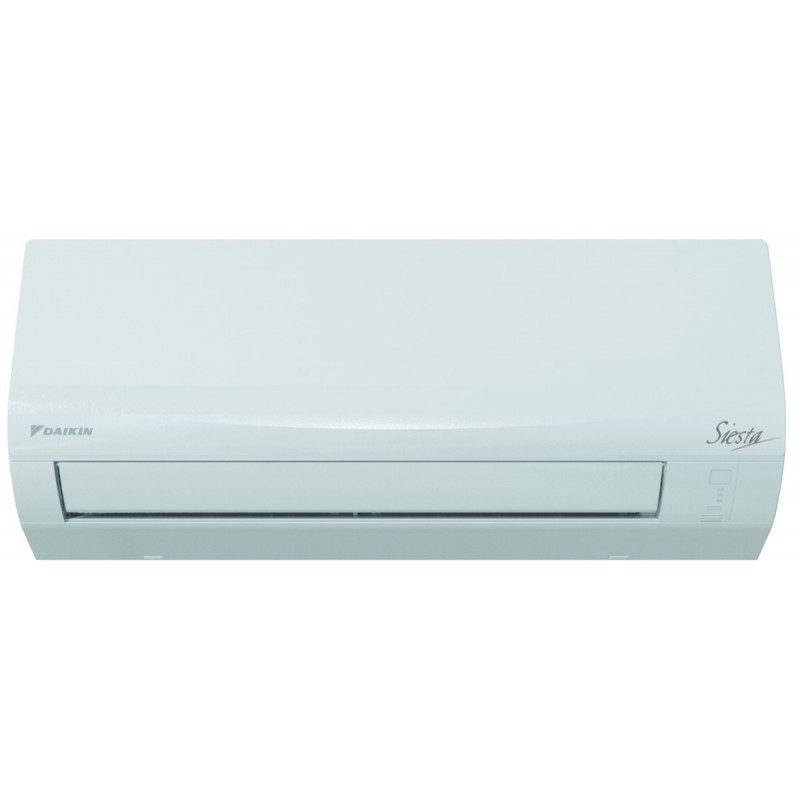

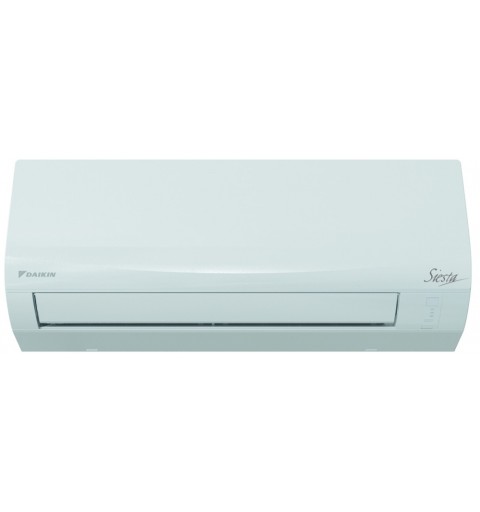

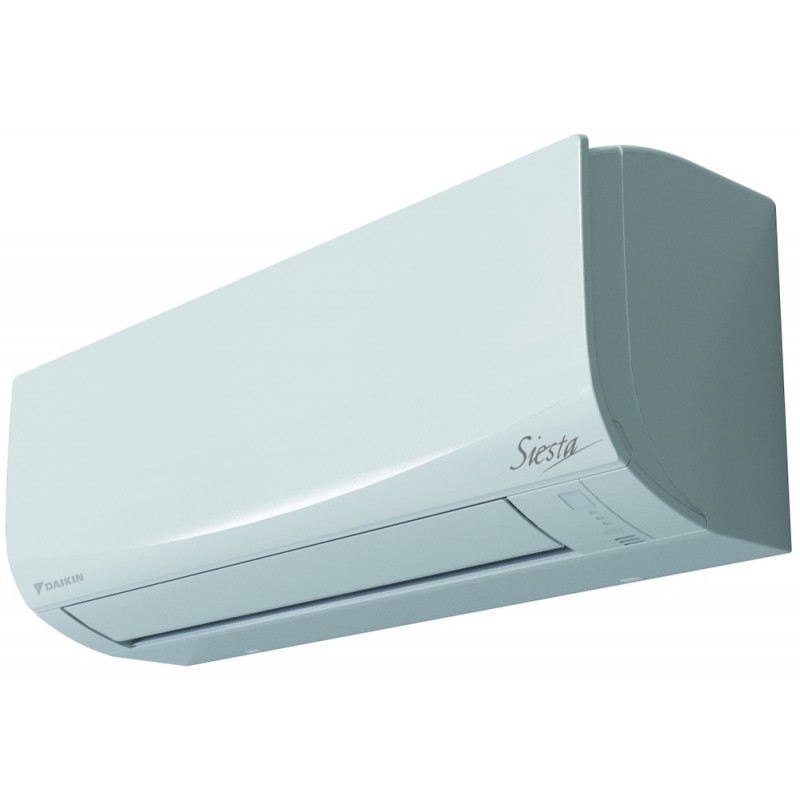

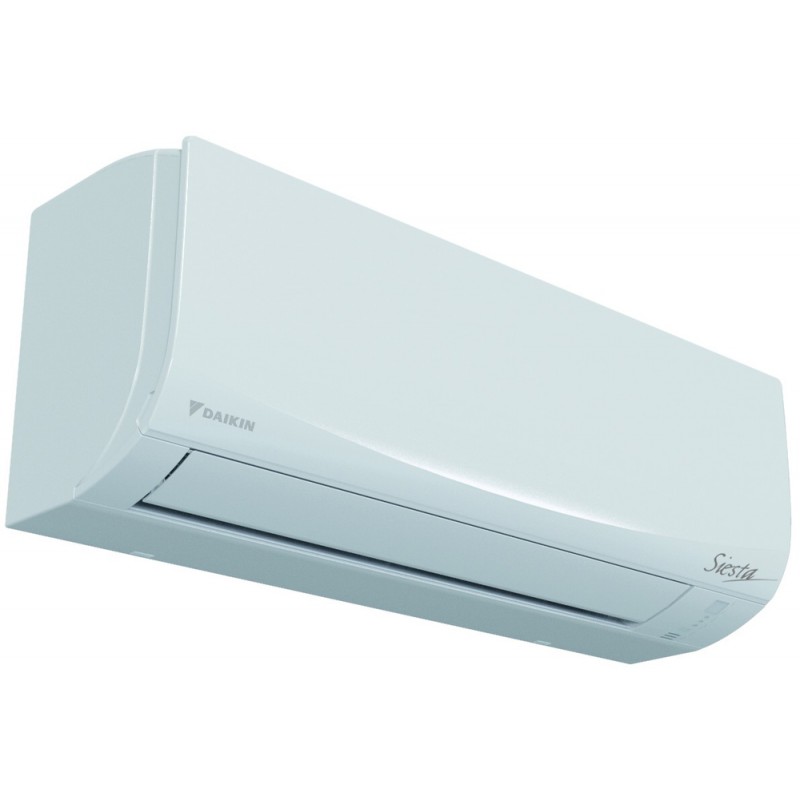

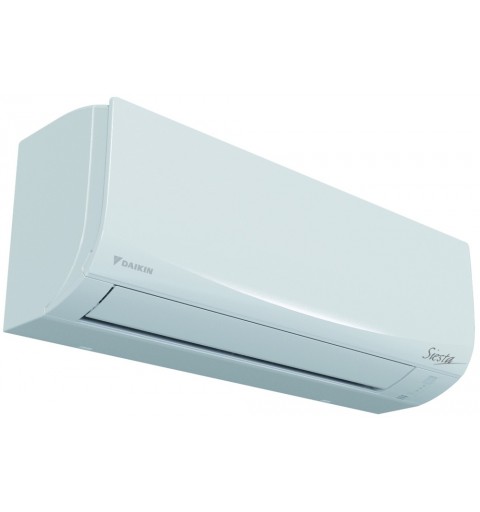

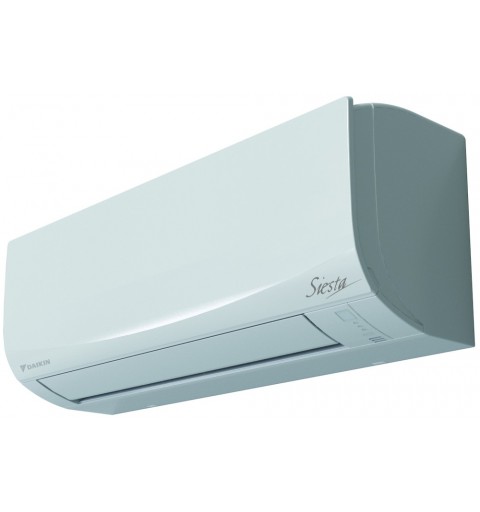

• Indoor Units: ATXF25A + ATXF35A (9000 BTU + 12000 BTU)

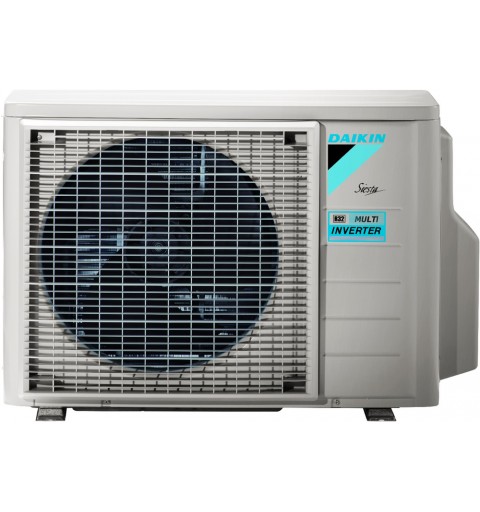

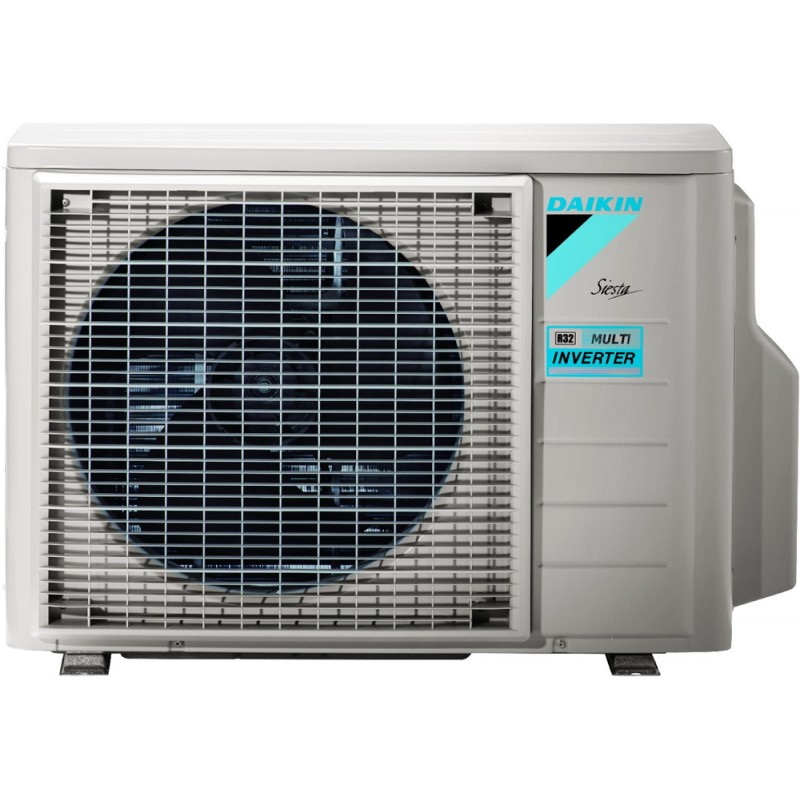

• Outdoor Unit: 2AMXF40A

Dimensions:

• Indoor Unit (HxWxD): 286x770x225 mm; Weight: 9 kg

• Outdoor Unit (HxWxD): 550x765x285 mm; Weight: 36 kg
