Daikin 3AMXF52A9 + 3x ATXF25A Siesta Air Conditioner Trial Split 3x 9000Btu A++/A+ Wifi Ready Inverter R32

Daikin 3AMXF52A9 + 3x ATXF25A Siesta Air Conditioner – Trial Split 3x 9000Btu A++/A+ Wifi Ready Inverter R32

Daikin air conditioners have always been a benchmark for high efficiency and top performance in both cooling and heating. With the new ATXF model, Daikin introduces the eco-friendly R32 refrigerant, reducing environmental impact by 68% compared to R-410A systems. Additionally, energy consumption is significantly reduced thanks to its high energy efficiency rating (A++), without compromising on comfort.

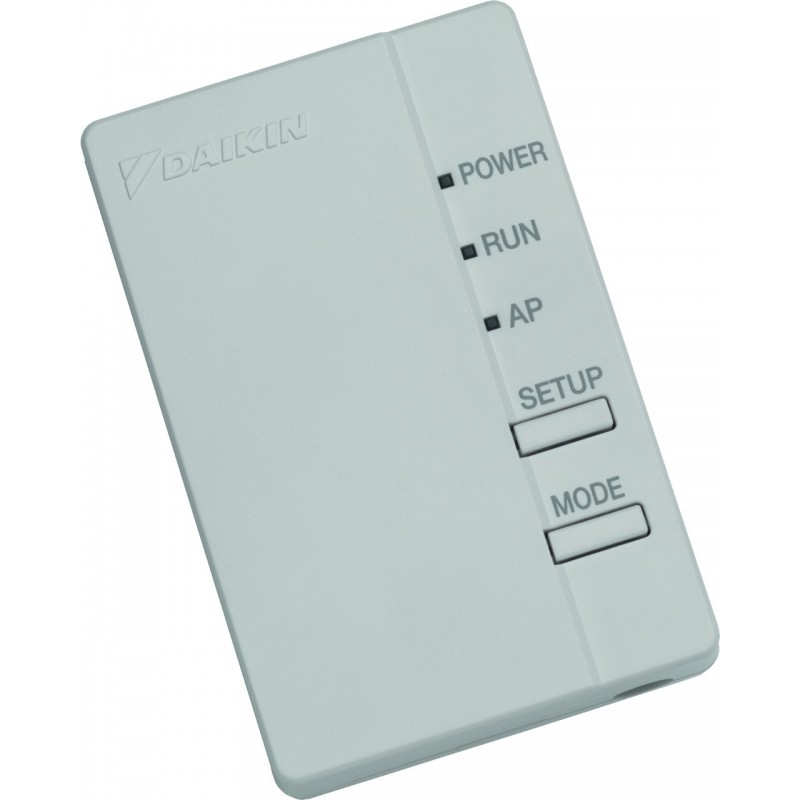

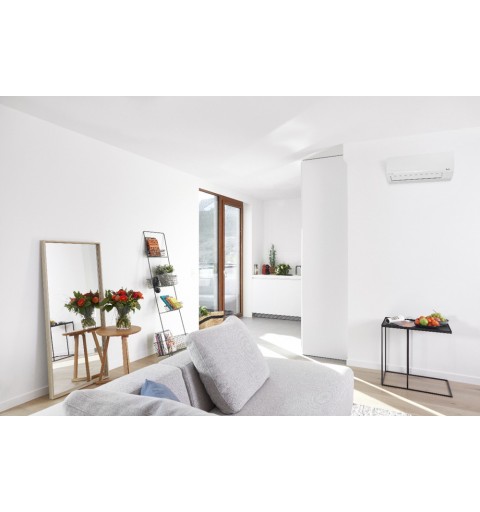

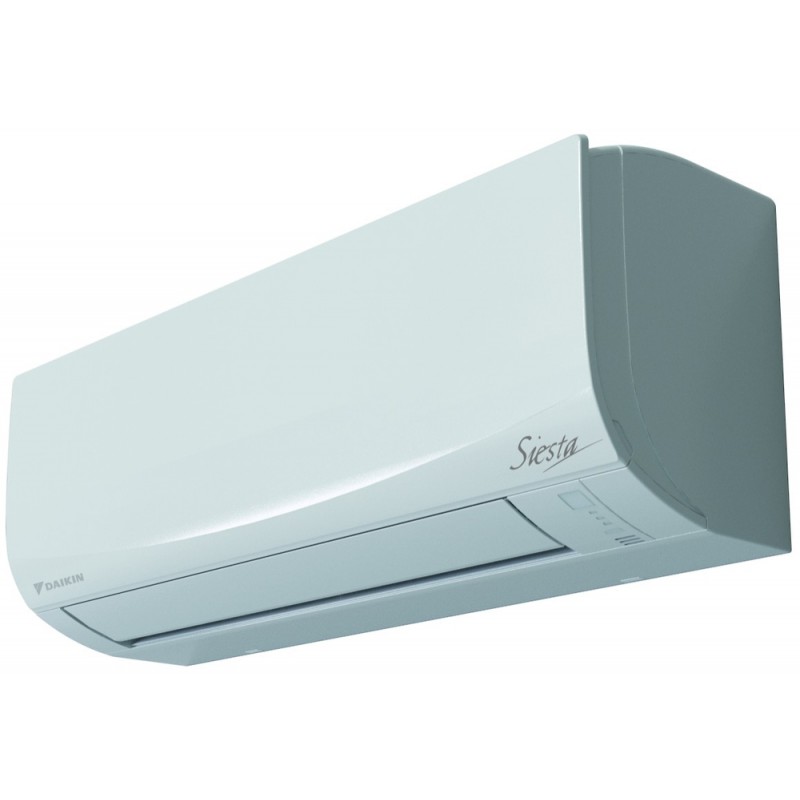

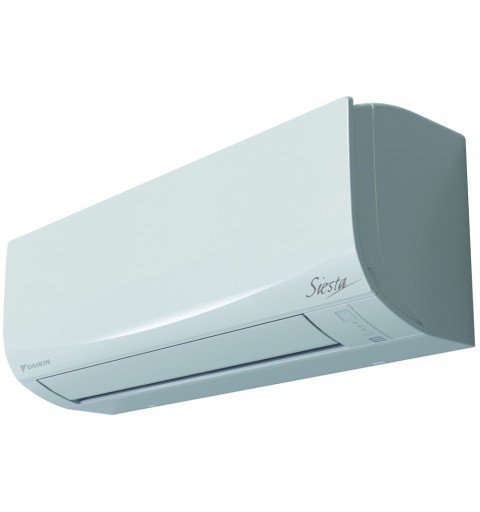

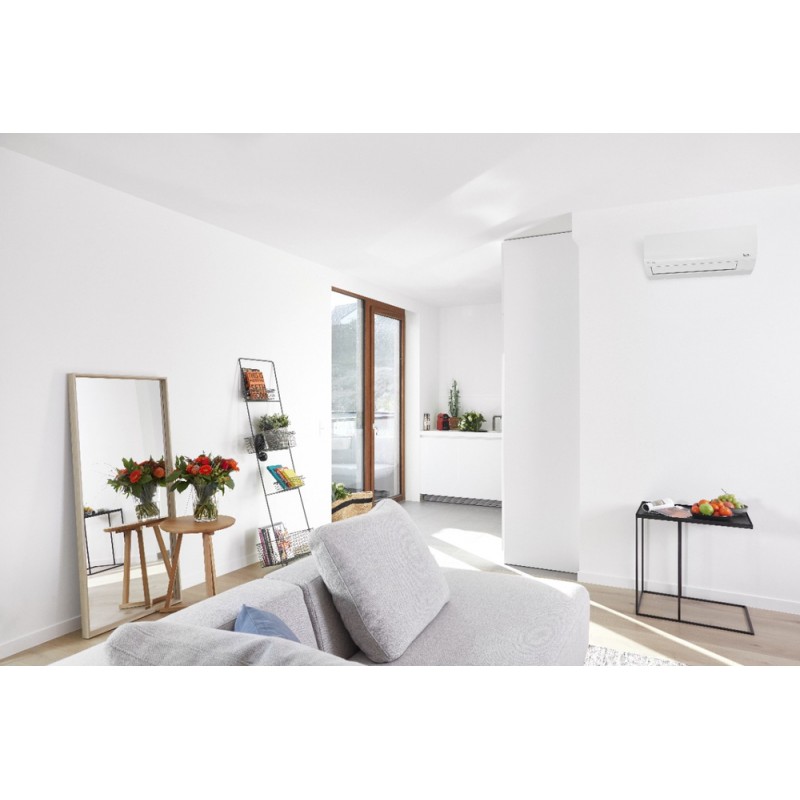

The unit features an elegant and discreet design with compact dimensions, making it easy to match with any interior style. Beyond ecology and design, this air conditioner offers cutting-edge technology with smart features, such as built-in Smart Control, which allows you to manage and control your unit directly from your smartphone via the Daikin App.

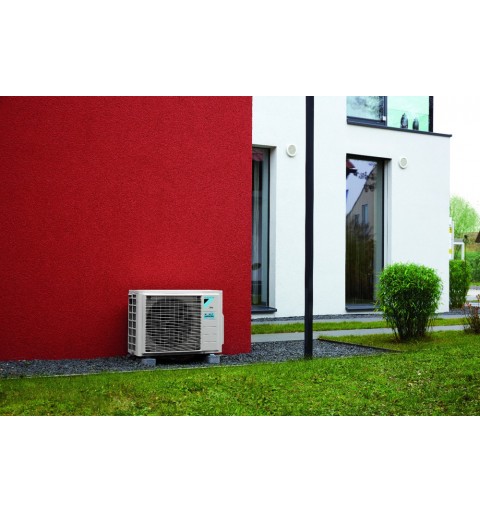

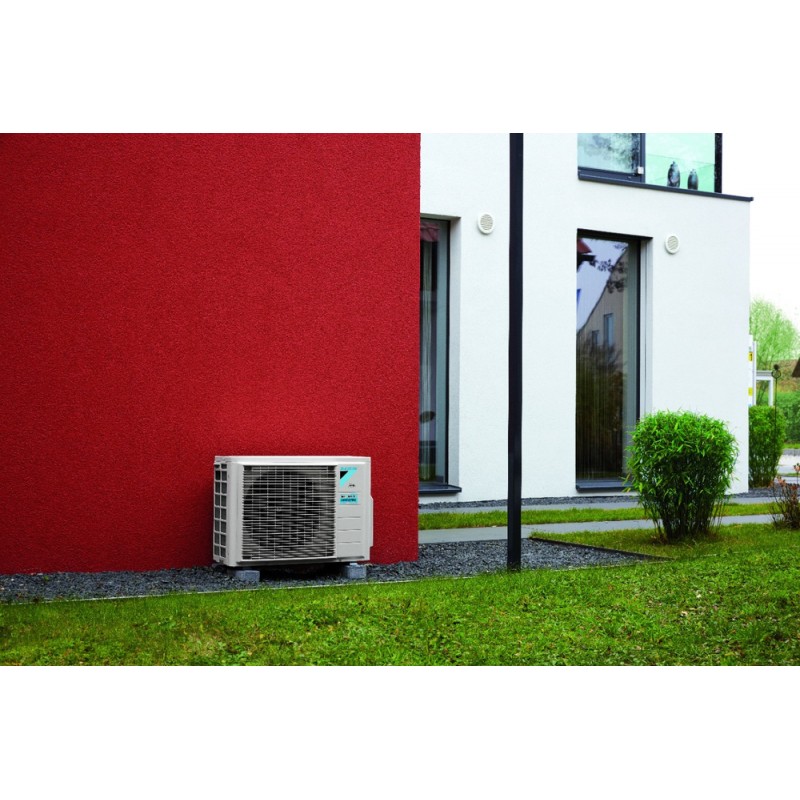

Efficiency and reliability are also ensured through easy outdoor unit installation, featuring a Blue Fin anti-corrosion treated heat exchanger, providing excellent resistance even under harsh weather conditions.

Technical Specifications

• SEER: 6.22

• SCOP: 4.06

• Cooling Energy Class: A++

• Heating Energy Class: A+

• Power: 9000 + 9000 + 9000 BTU

• Recommended area: 15 to 25 m² per 9000 BTU unit

Cooling Performance

• Capacity: 5.0 kW

• Operating Range (Min.~Max): 10~46°C

Heating Performance

• Capacity: 5.6 kW

• Operating Range (Min.~Max): -15~18°C

Noise Levels

• Indoor Unit Sound Pressure: 21 dBA

• Indoor Unit Sound Power: 55 dBA

• Outdoor Unit Sound Power: 60 dBA

System Data

• Power Supply (V/Hz/Φ): 230 / 50 / 1

• Refrigerant Gas: R-32

• Pipe Connections (Liquid/Gas): 6.35 (1/4") / 9.5 (3/8") mm/inch

• Max Pipe Length: 30 m

• Max Height Difference (IU - OU): 15 m

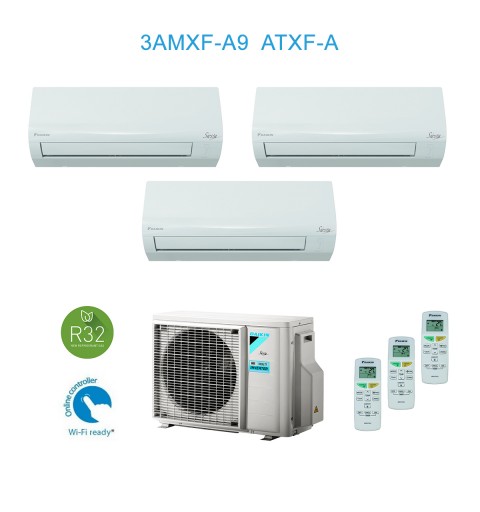

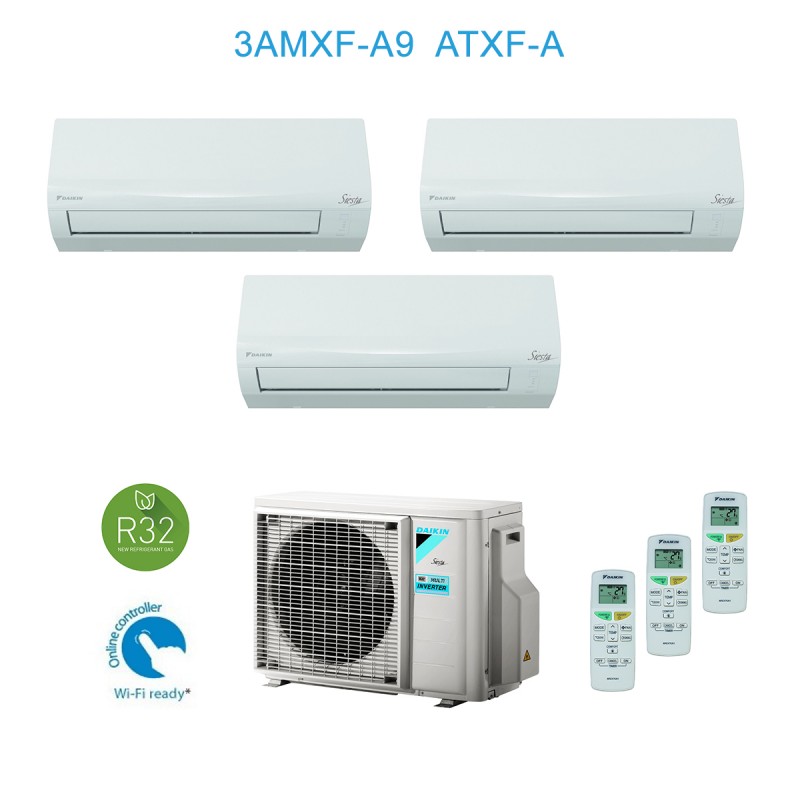

Includes

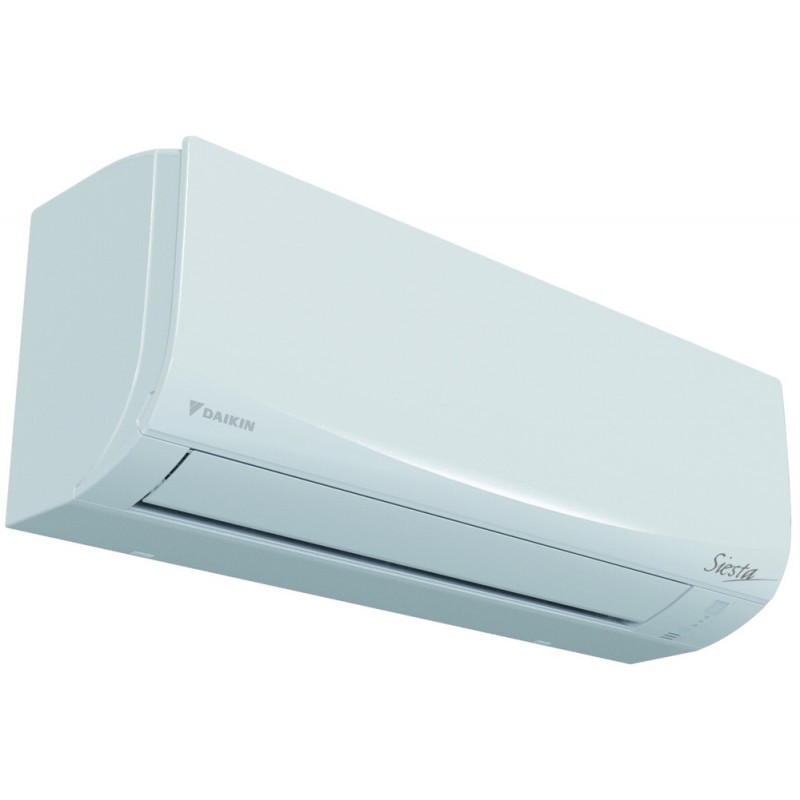

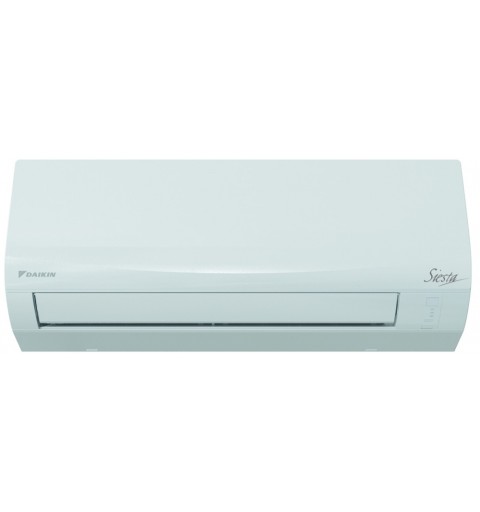

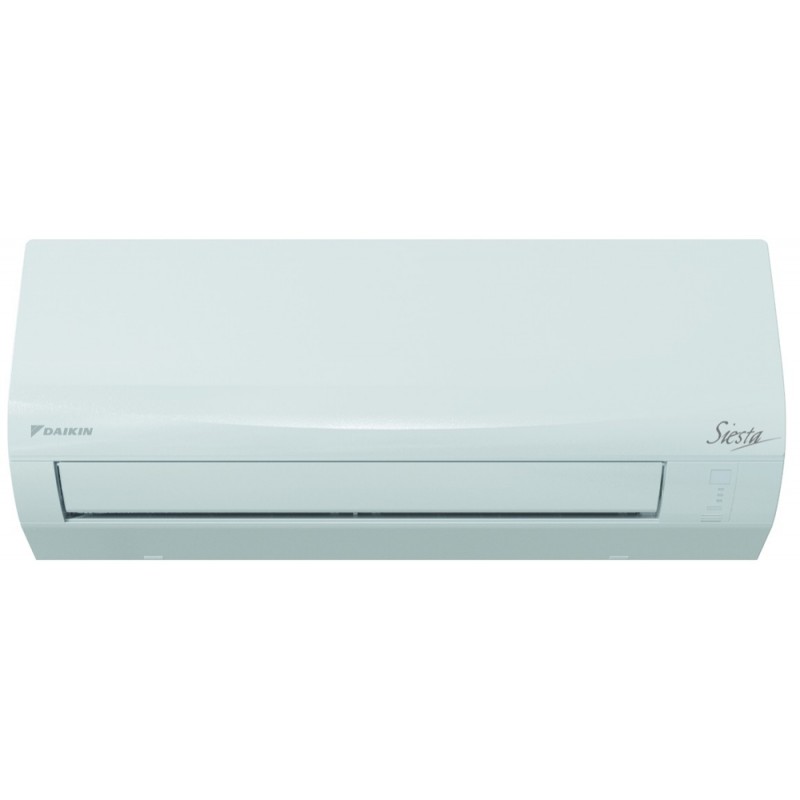

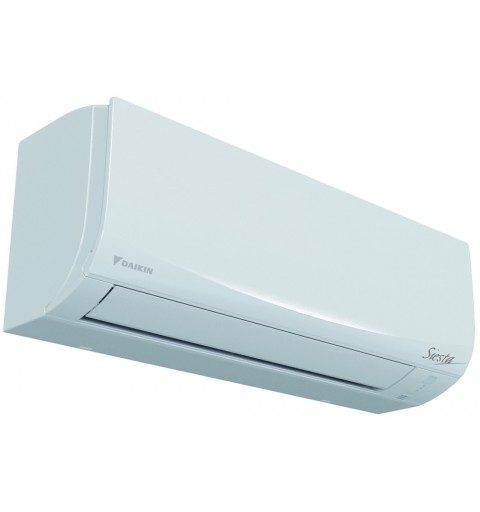

• Indoor Units: 3x ATXF25A

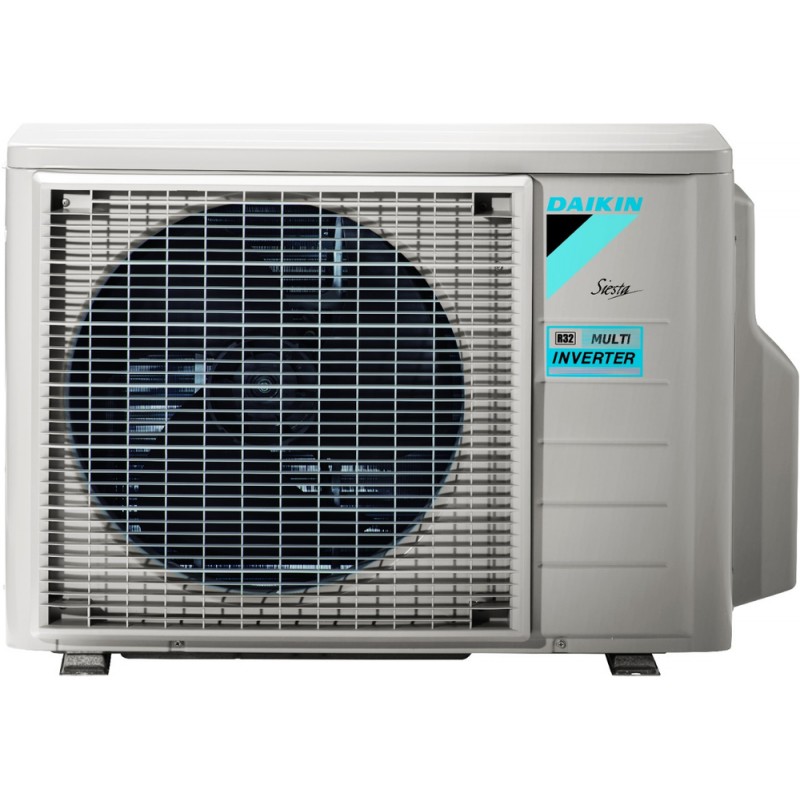

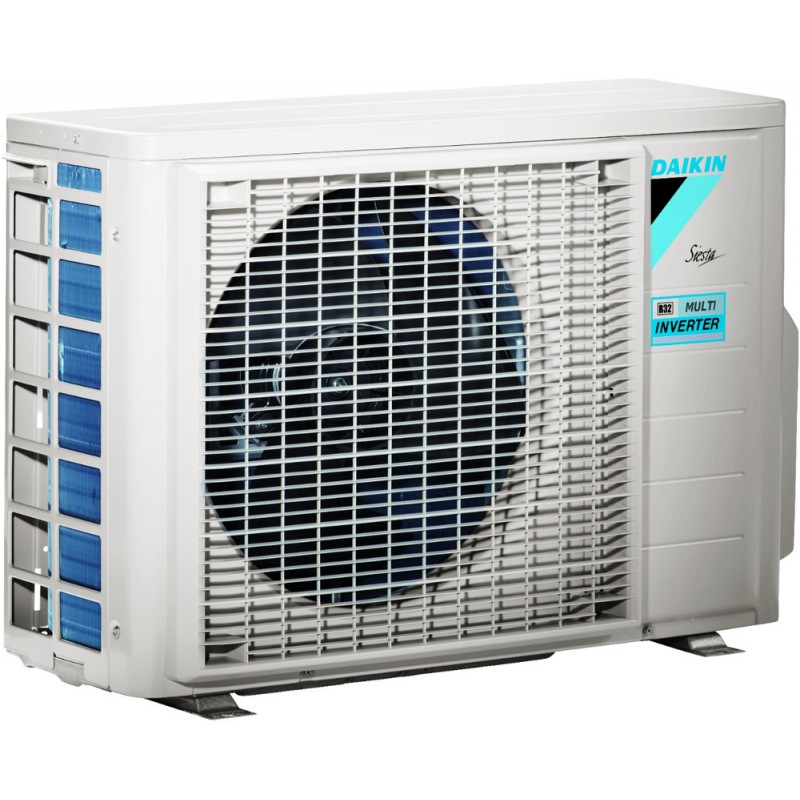

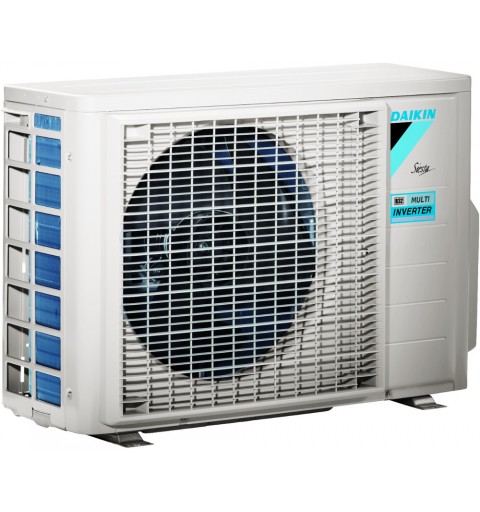

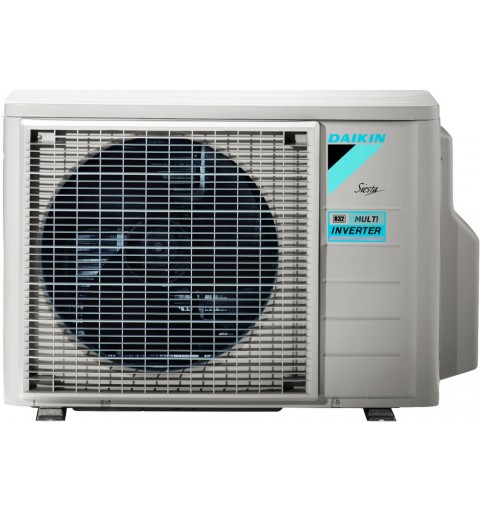

• Outdoor Unit: 3AMXF52A9

Dimensions

• Indoor Unit (HxWxD): 286 × 770 × 225 mm ; Weight: 9 kg

• Outdoor Unit (HxWxD): 734 × 973 × 401 mm ; Weight: 57 kg
