Daikin 3AMXF52A9 + 2x ATXF25A + ATXF35A Siesta Trial Split Air Conditioner 2x 9000 + 12000 BTU A++/A+ Wifi Ready Inverter R32

Daikin 3AMXF52A9 + 2x ATXF25A + ATXF35A Siesta Trial Split Air Conditioner 2x 9000 + 12000 BTU A++/A+ Wifi Ready Inverter R32

Daikin air conditioners have always been a guarantee of high efficiency, offering excellent performance both in cooling and heating. With the new ATXF model, Daikin introduces the new eco-friendly R32 gas, reducing environmental impact by 68% compared to R-410A systems. Additionally, energy consumption is significantly reduced thanks to high energy efficiency (A++), without sacrificing maximum comfort.

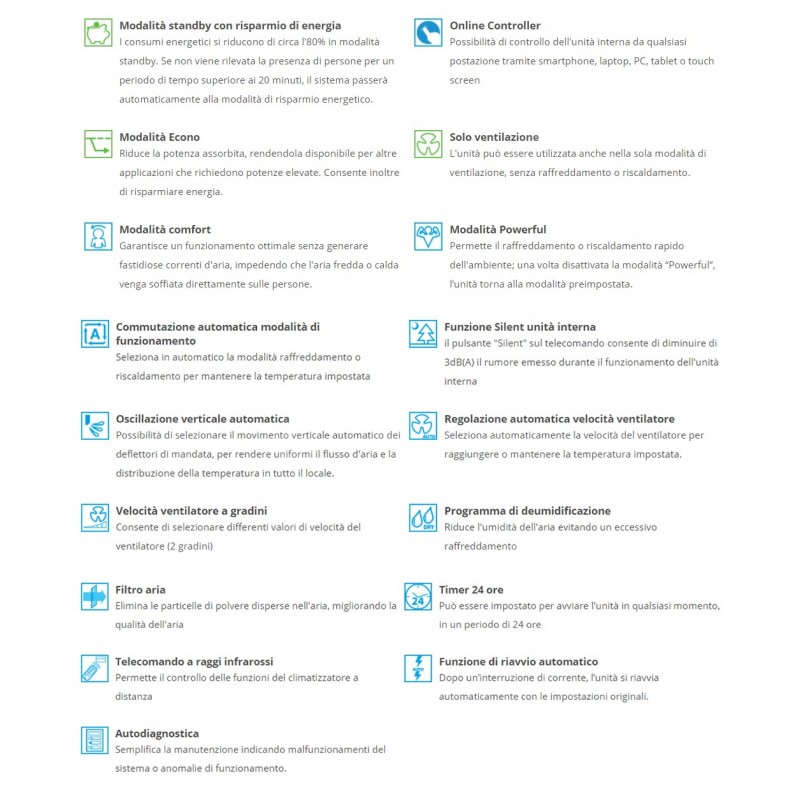

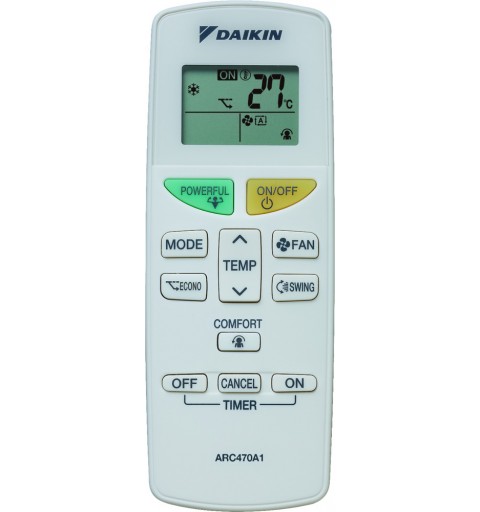

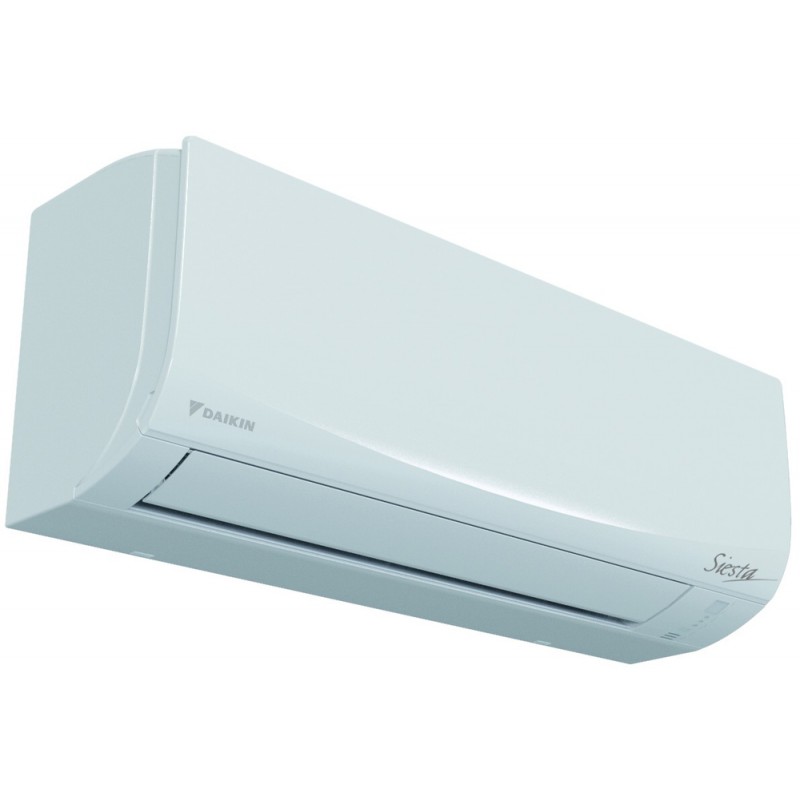

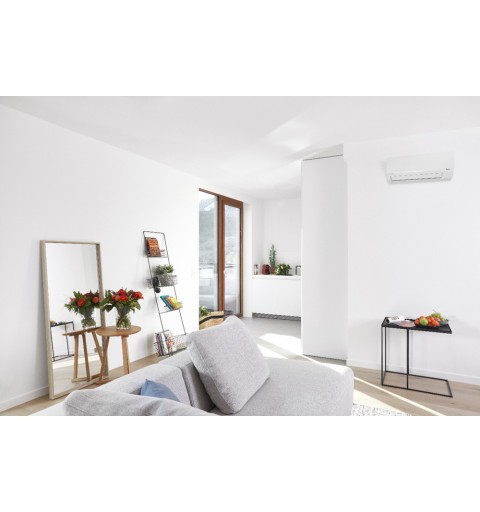

Featuring a sleek and compact design that easily blends with any interior decor. Beyond ecology and aesthetics, the performance of this air conditioner is driven by advanced technology, including smart management functions that allow you to control the unit directly from your smartphone via the dedicated Daikin app.

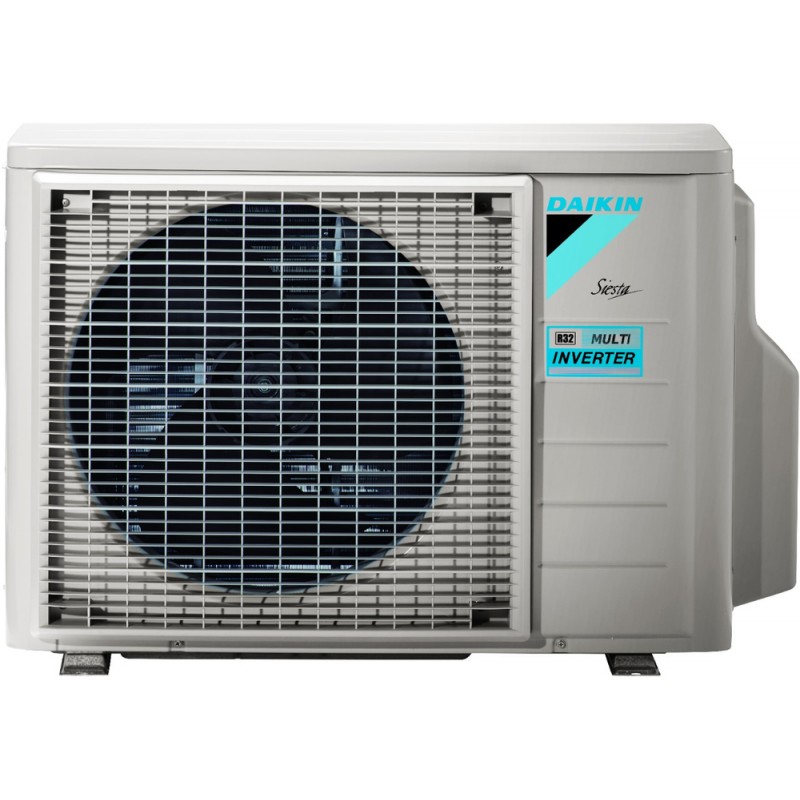

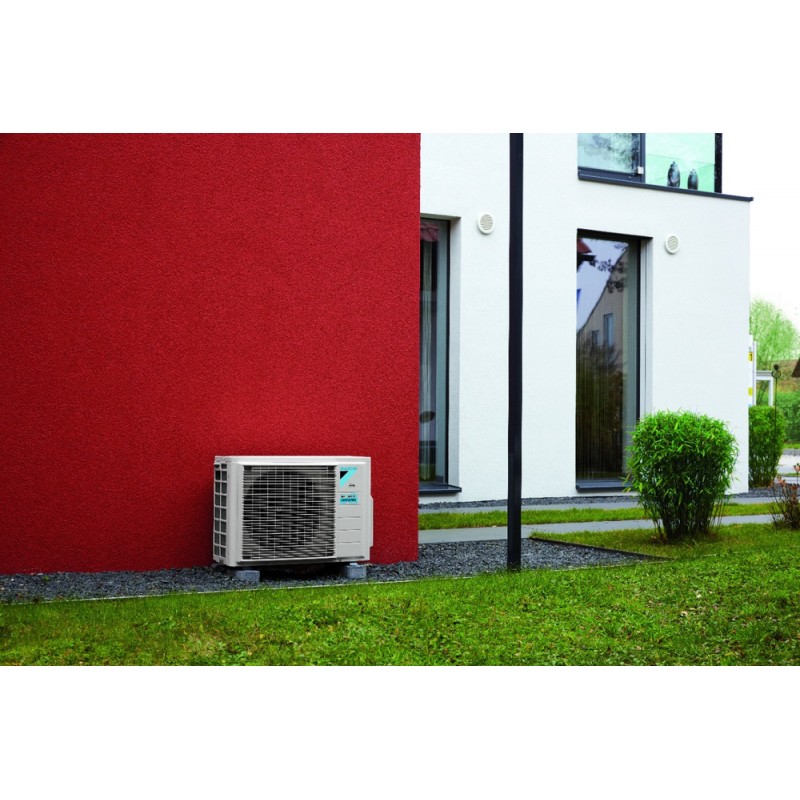

Efficiency and reliability are also ensured by the outdoor unit’s easy installation and the heat exchanger treated with anti-corrosion coating (blue fin), offering strong resistance to the harshest weather conditions.

Technical Features

• SEER: 6.22

• SCOP: 4.06

• Energy Class (Cooling): A++

• Energy Class (Heating): A+

• Power: 9000+9000+12000 BTU

• Coverage area: 15–25 m² for 9000 BTU unit; 25–40 m² for 12000 BTU unit



Cooling Performance

• Capacity: 5.0 kW

• Operating range (Min.~Max): 10~46 ℃;



Heating Performance

• Capacity: 5.6 kW

• Operating range (Min.~Max): -15~18 °C;



Noise Levels

• Indoor Unit Sound Pressure: 21 dBA

• Indoor Unit Sound Power: 55 dBA

• Outdoor Unit Sound Power: 60 dBA



Data

• Power Supply (V/Hz/Ph): 230/50/1

• Refrigerant Gas: R-32

• Pipe Connections Liquid/Gas: 6.35 (1/4") / 9.5 (3/8") mm/inch

• Max Pipe Length: 30 m

• Max Height Difference (IU - OU): 15 m

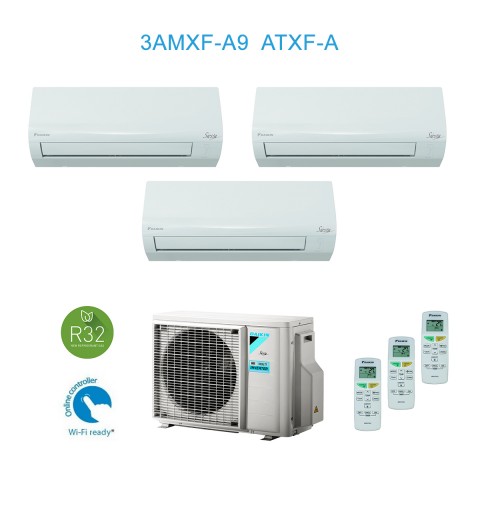

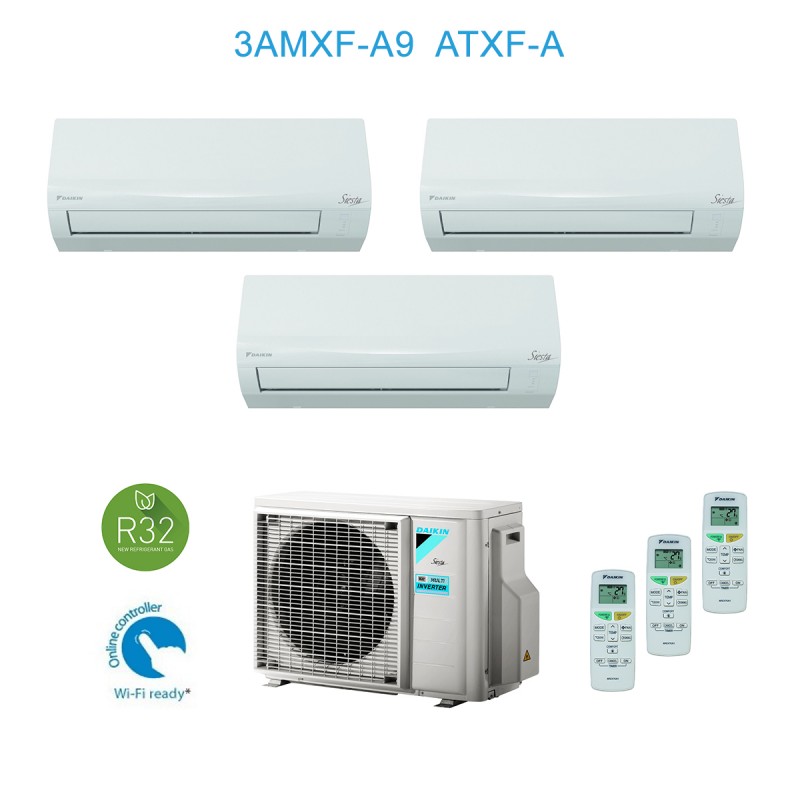

Set Composition

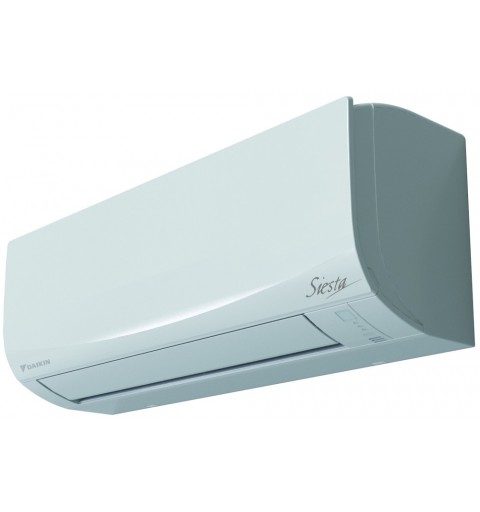

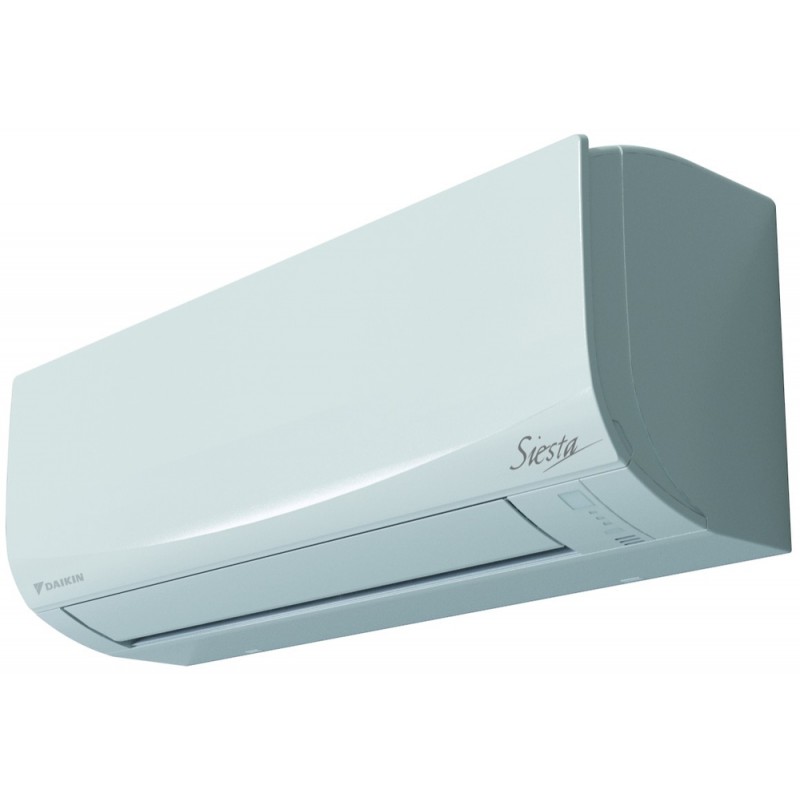

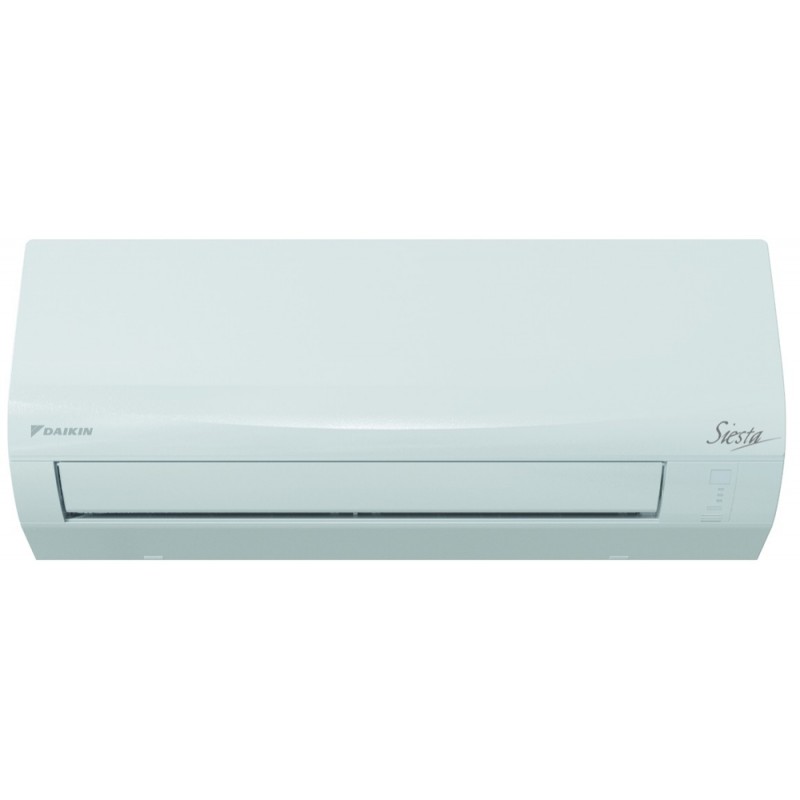

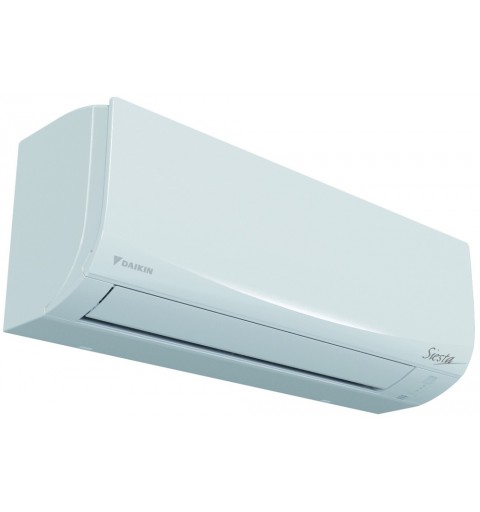

• Indoor Units: 2x ATXF25A + 1x ATXF35A

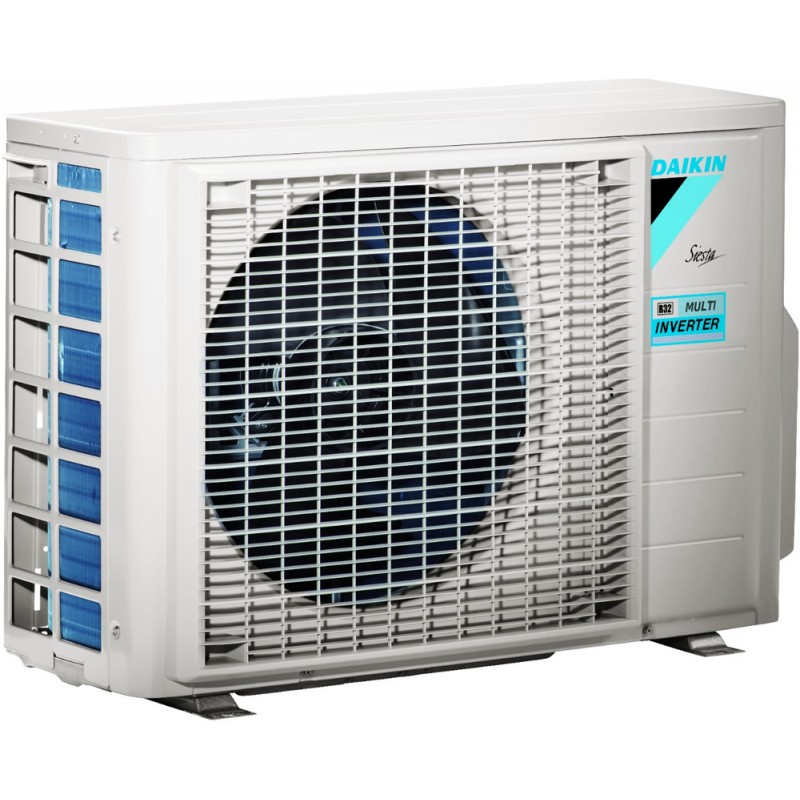

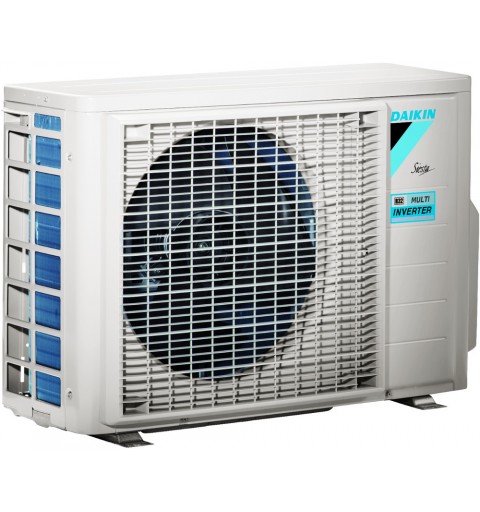

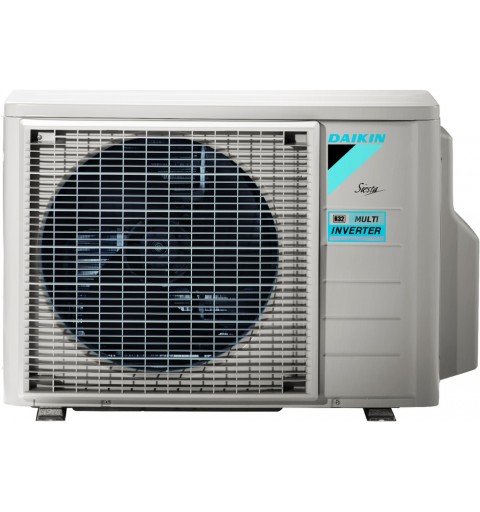

• Outdoor Unit: 3AMXF52A9



Dimensions

• Indoor Unit (HxWxD): 286x770x225 mm ; Weight: 9 Kg

• Outdoor Unit (HxWxD): 734x973x401 mm ; Weight: 57 Kg
