Daikin 3AMXM52N + 3x ATXM25A Air Conditioner Siesta Perfera 2025 Trial Split 9000 + 9000 + 9000 Btu A+++ WiFi R32

Daikin 3AMXM52N + 3x ATXM25A Air Conditioner Siesta Perfera 2025 Trial Split 9000 + 9000 + 9000 Btu A+++/A+++ WiFi Inverter R32 White

Daikin multi-split model Siesta Perfera 2025 - ATXM-A 3AMXM-N

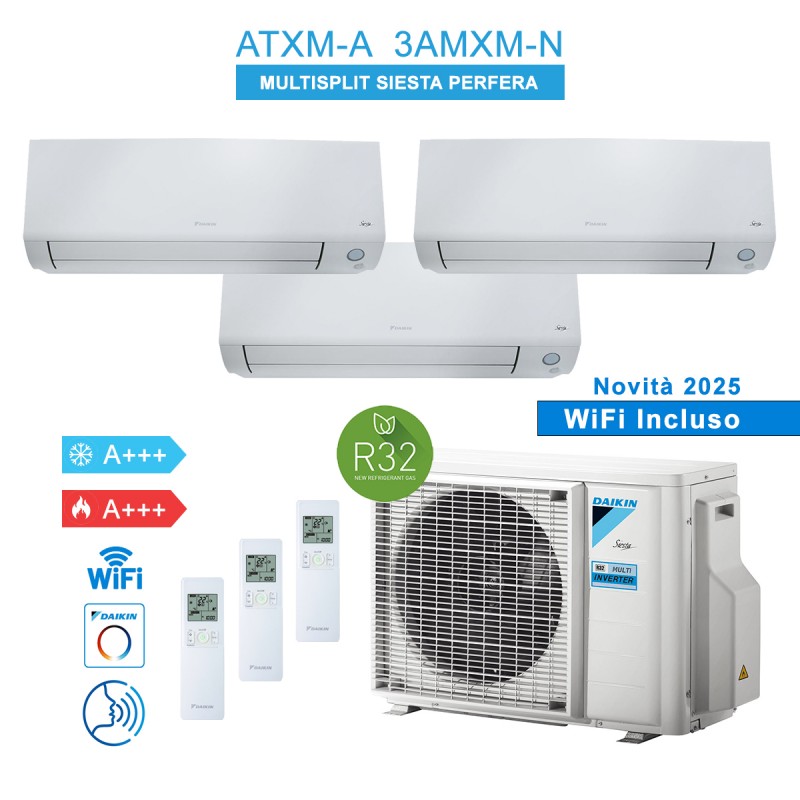

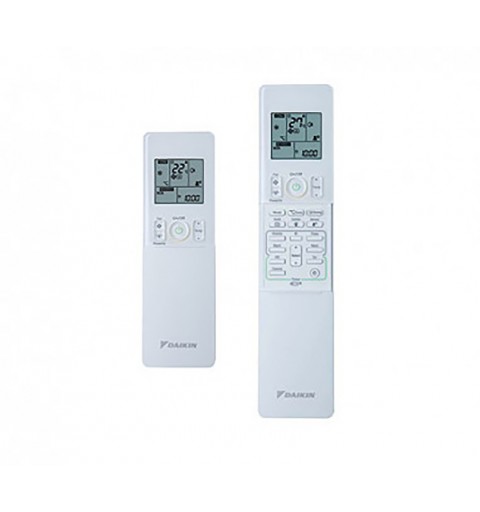

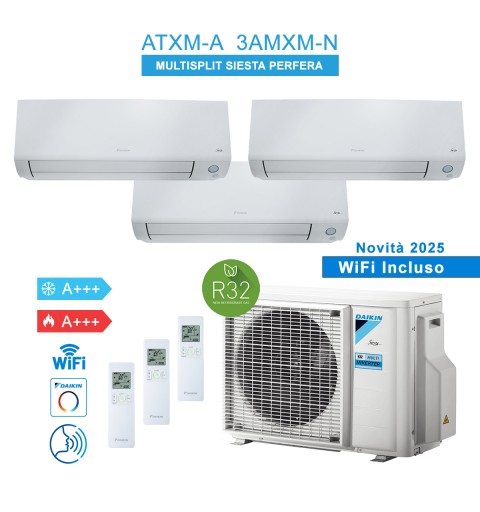

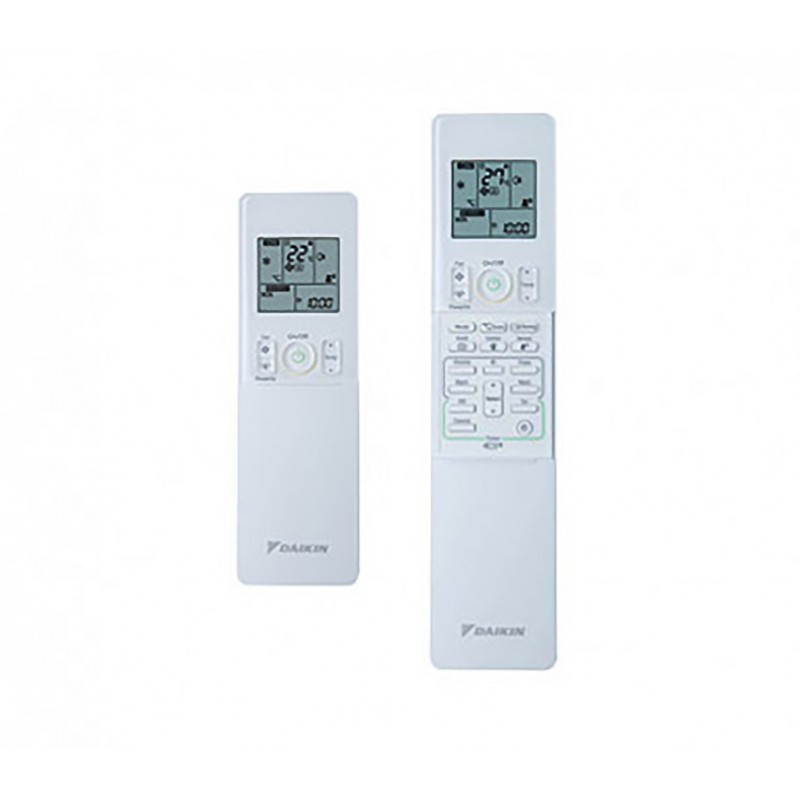

Air conditioner kit consisting of 3 ATXM25A 9000Btu indoor units, the 3AMXM52N outdoor unit, and 3 remote controls

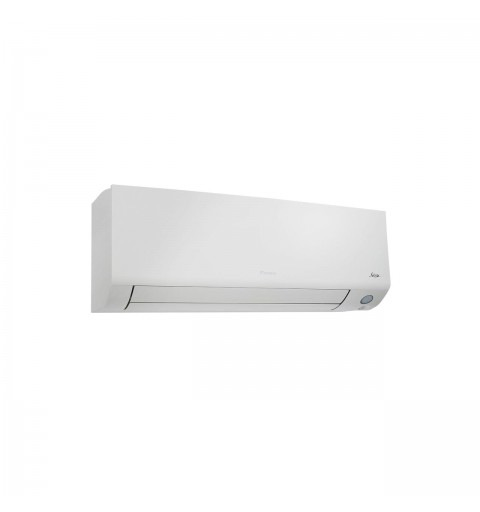

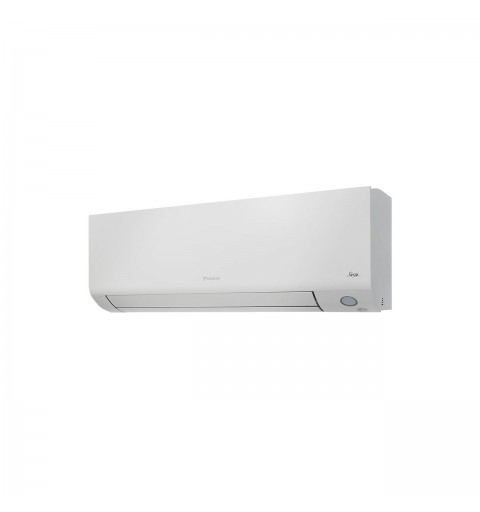

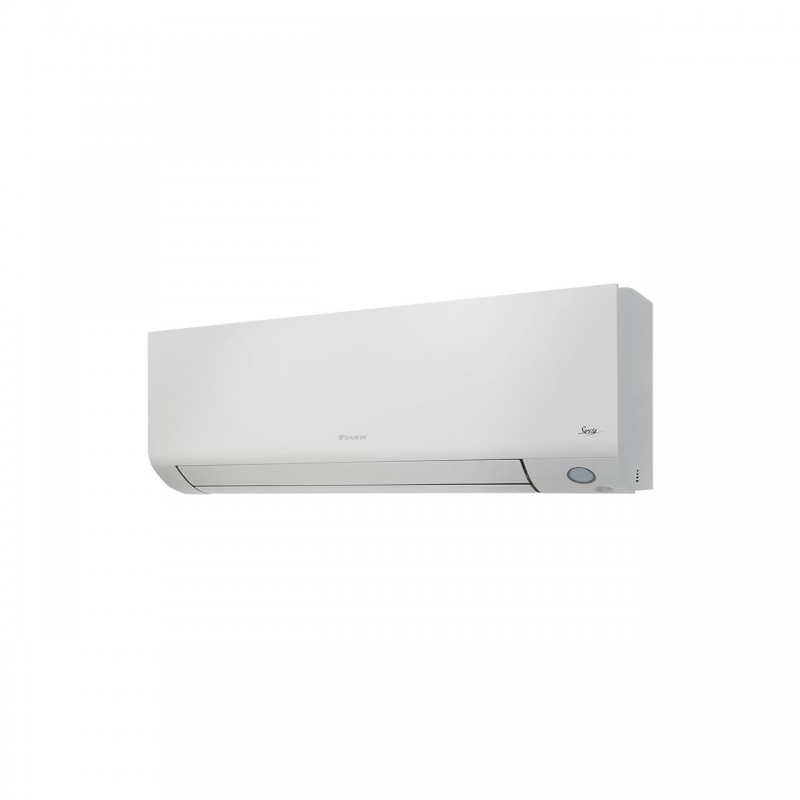

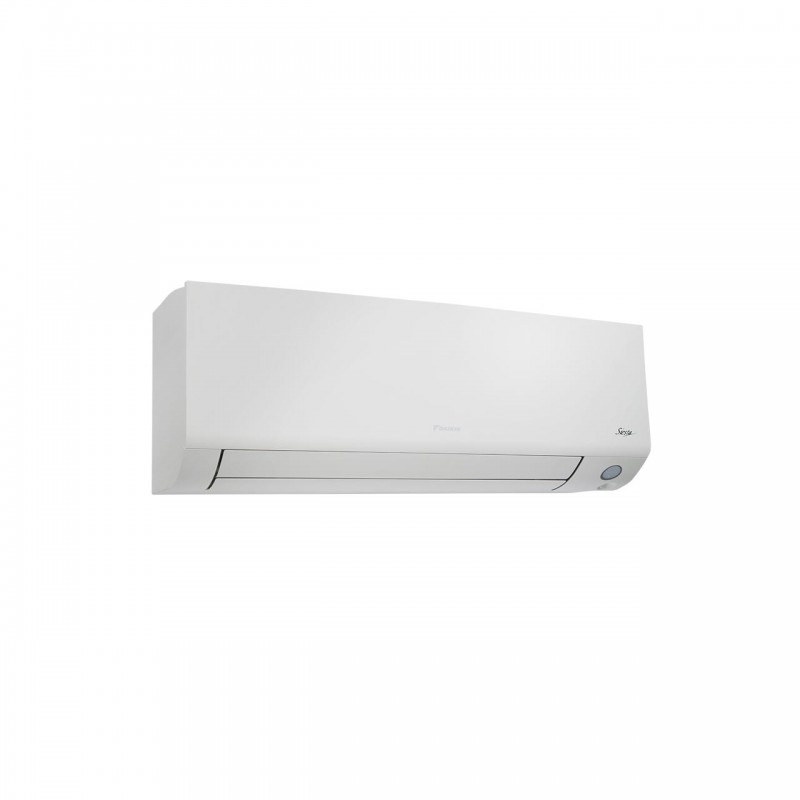

Elegant wall-mounted indoor units ensuring the highest indoor air quality
Energy class: A+++/A+++
Integrated Wi-Fi module

Product Features

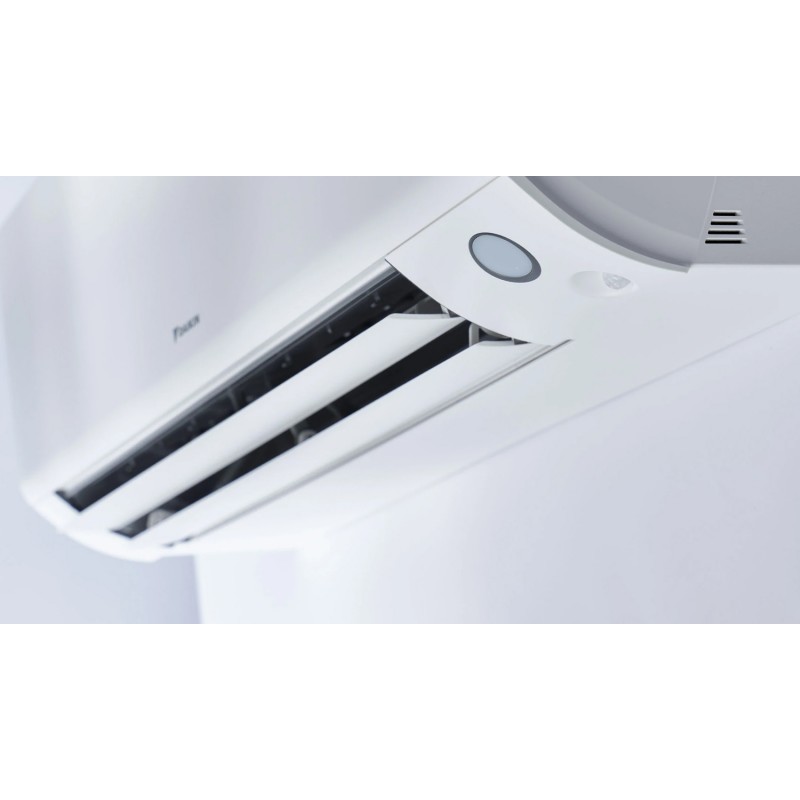

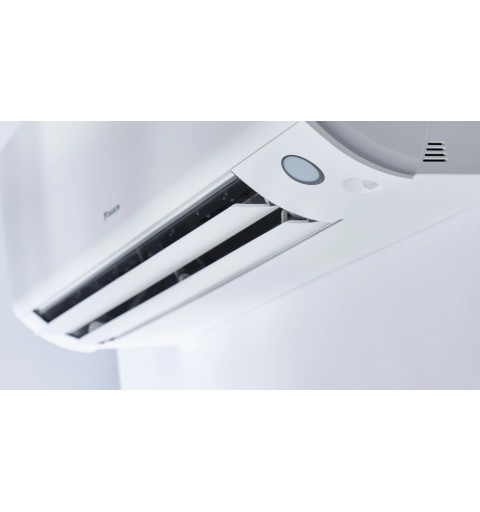

• Comfort+: Perfect comfort with uniform temperature throughout the room. Dual air deflectors direct air towards the ceiling in cooling mode and along the wall in heating mode.

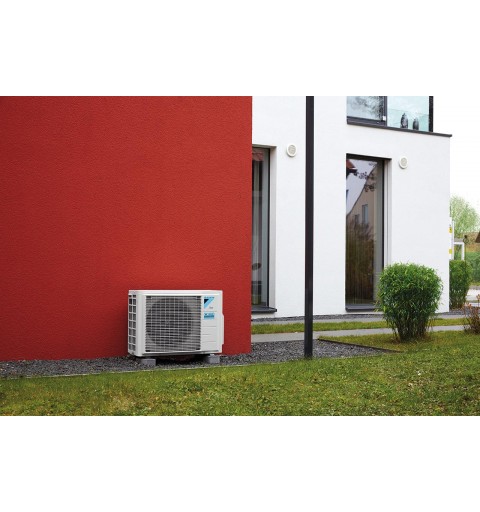

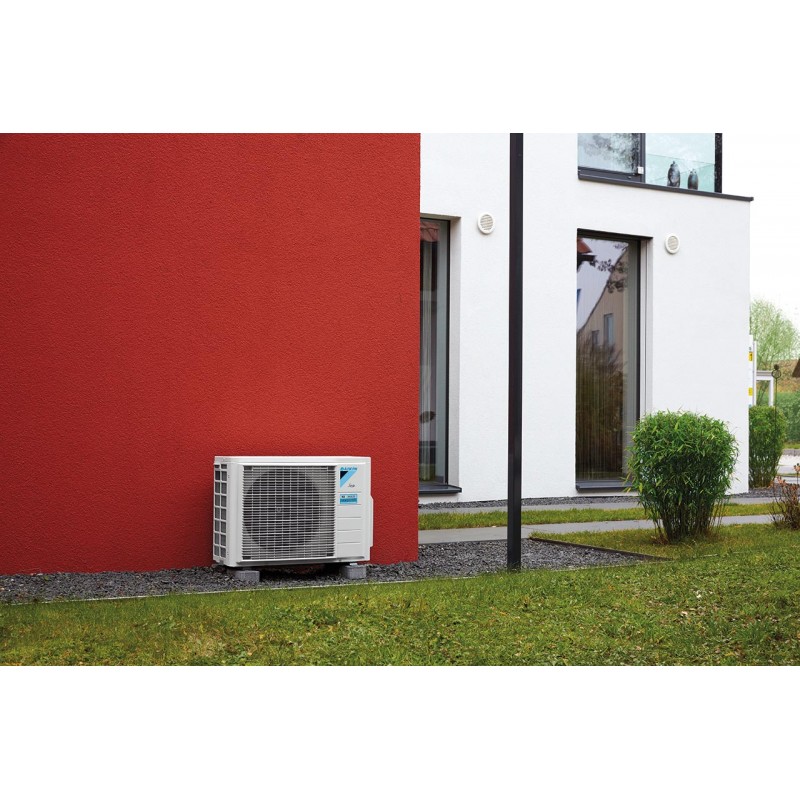

• Daikin outdoor units are well-designed and sturdy, making them easy to install on a roof, terrace, or simply against an exterior wall.
• The outdoor units are equipped with a Swing-type compressor, known for its low noise levels and high energy efficiency.
• It is possible to connect up to 3 indoor units to 1 Multi Siesta outdoor unit; all indoor units are individually controlled and do not necessarily have to be installed in the same room or at the same time. They operate simultaneously in either cooling or heating mode.
• Various types of wall-mounted indoor units can be connected.
• R-32 refrigerant reduces environmental impact by 68% compared to R-410A systems and directly lowers energy consumption due to its high energy efficiency.
• Seasonal efficiency values up to A+++ in cooling and heating, thanks to the latest technology and integrated intelligence.
• 2-area motion sensor: This function directs airflow away from the detected person's location; if no presence is detected, the unit automatically switches to energy-saving mode.
• Auxiliary heating quickly warms up your home when the air conditioner starts. The set temperature is reached 14% faster than with a standard air conditioner (monosplit only).
• Air purification from viruses, bacteria, and fine dust particles thanks to an efficient dust filter.
• Heat exchanger fins in the outdoor unit feature anti-corrosion treatment.
• Flash Streamer technology: Using electrons to trigger chemical reactions with airborne particles, it decomposes allergens like pollen and fungi, removing unpleasant odors and ensuring cleaner, healthier air.
• Silver allergen removal and air purification filter: Captures allergens, such as pollen, ensuring a constant supply of clean air.
• Voice control via Amazon Alexa or Google Assistant to manage main functions such as setpoint, operating mode, fan speed, etc.
• Onecta app: Allows remote control of indoor units from anywhere via a local network or the Internet.
• Silent operation: Sound pressure level as low as 19 dBA.
• 3D airflow: Uses automatic vertical and horizontal oscillation to ensure even distribution of hot or cold air, reaching every corner of large rooms.



Technical Specifications – ATXM25A Indoor Unit

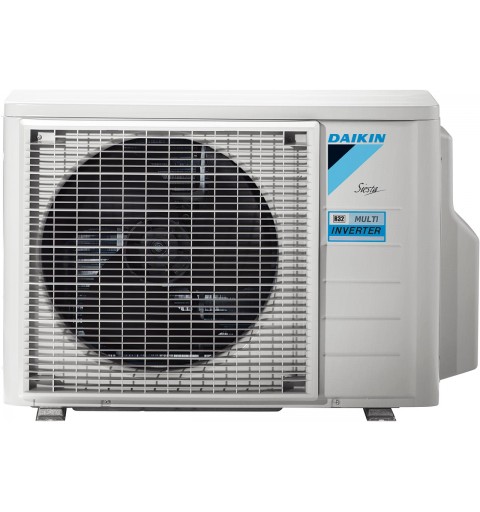

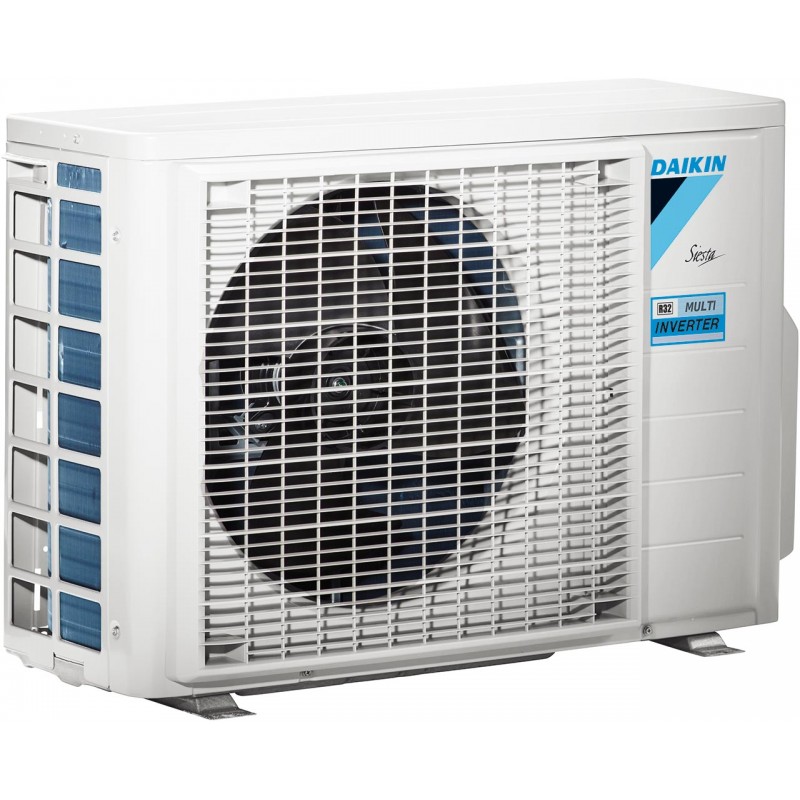

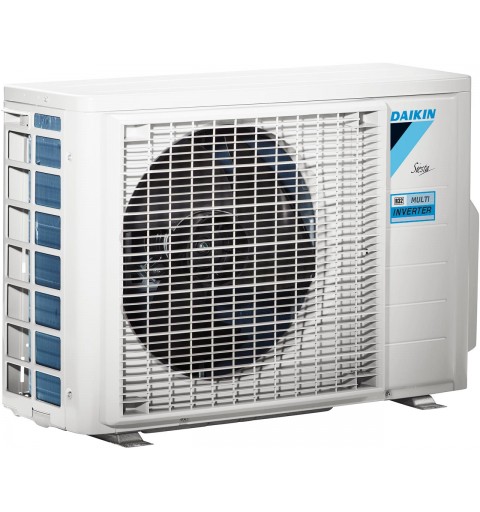

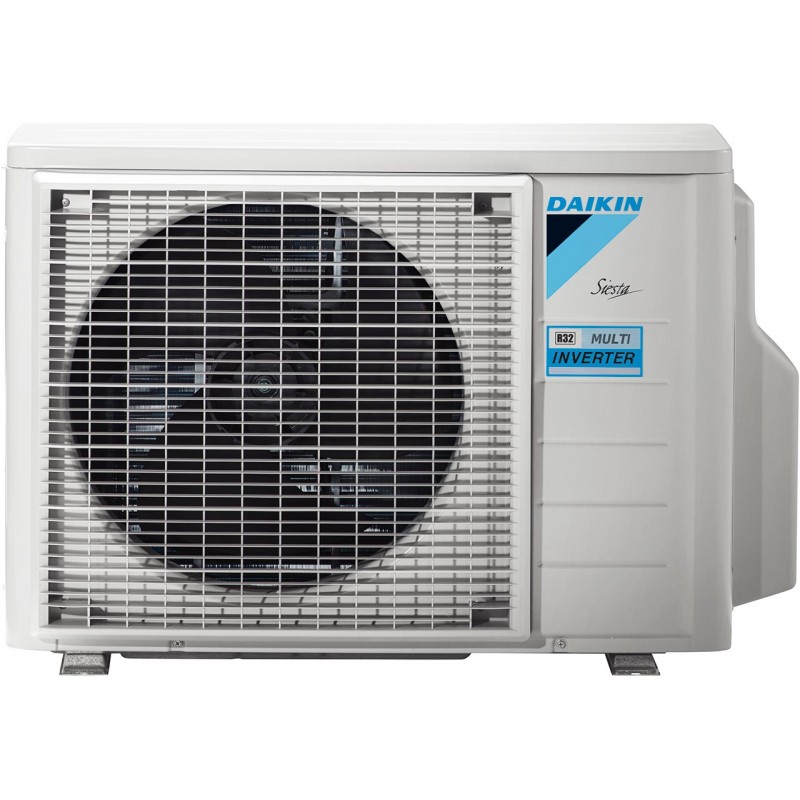

Technical Specifications – 3AMXM52N Outdoor Unit

• Dimensions:
  • Height: 734 mm
  • Width: 974 mm
  • Depth: 401 mm
• Weight: 57 kg
• Color: Ivory White

Sound Power Level

• Cooling: 59 dBA
• Heating: 59 dBA

Operating Range

• Cooling Mode (Outdoor Temperature):
  • Min.: -10°CBS
  • Max.: 46°CBS
• Heating Mode (Outdoor Temperature):
  • Min.: -15°CBU
  • Max.: 24°CBU

Sound Pressure Level

• Cooling (High): 46 dBA
• Heating (High): 47 dBA

Refrigerant

• Type: R-32
• Charge: 1.8 kg (charge 0.02 kg/m for piping lengths exceeding 30m)
• GWP: 675.0

Piping Connections

• Maximum Piping Length:
  • Total: 50 m
  • Per Single Unit: 25 m
• Maximum Height Difference (Indoor-Outdoor): 15.0 m
• Liquid Pipe Connections: 6.35 mm x 3
• Gas Pipe Connections: 9.52 mm x 1 / 12.7 mm x 2

Standard Accessories

• Installation Manual: 1
• Drain Cap: 3
• Refrigerant Charge Label: 1
• Multilingual Fluorinated Gas Labels: 1
• General Safety Measures: 1

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V
