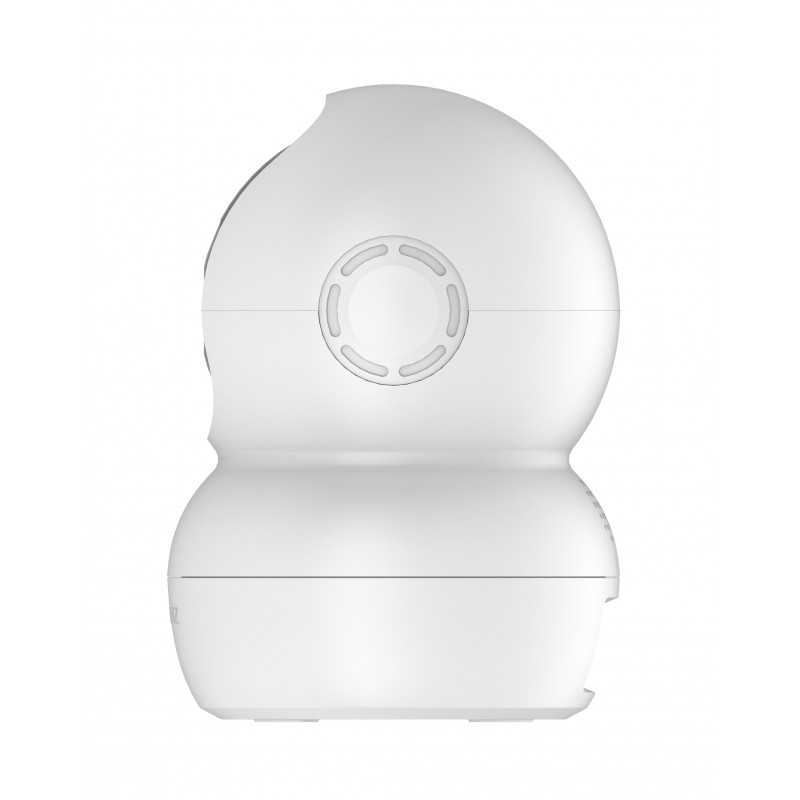

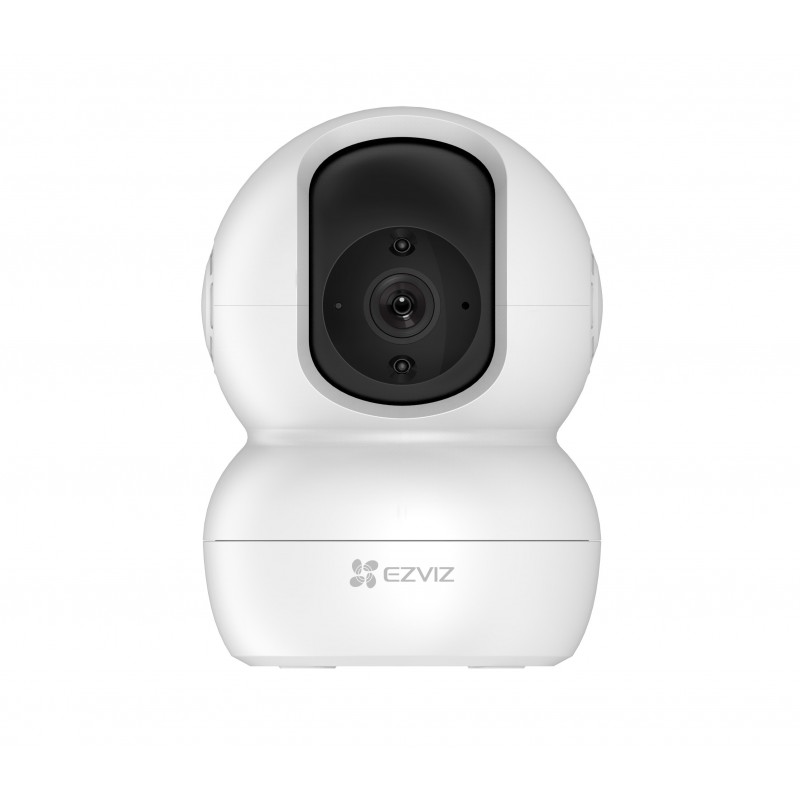

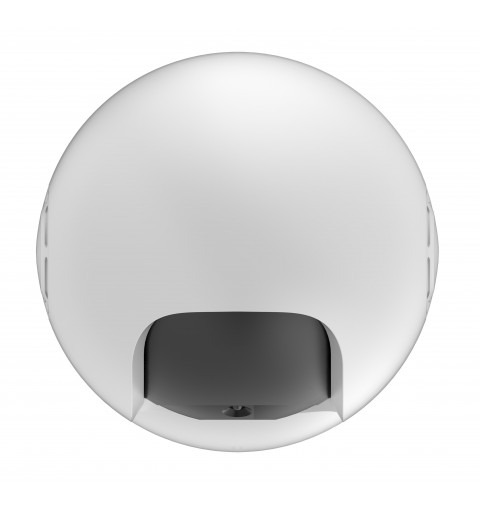

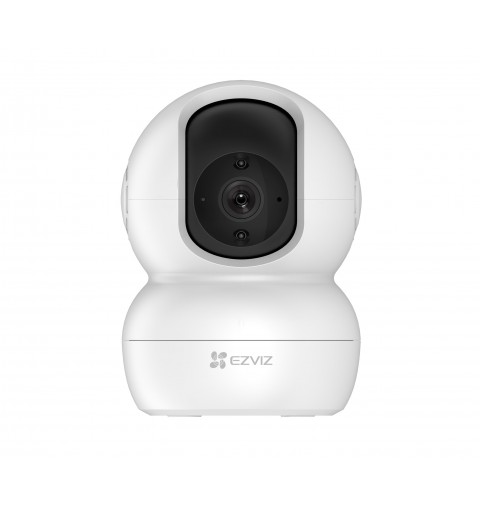

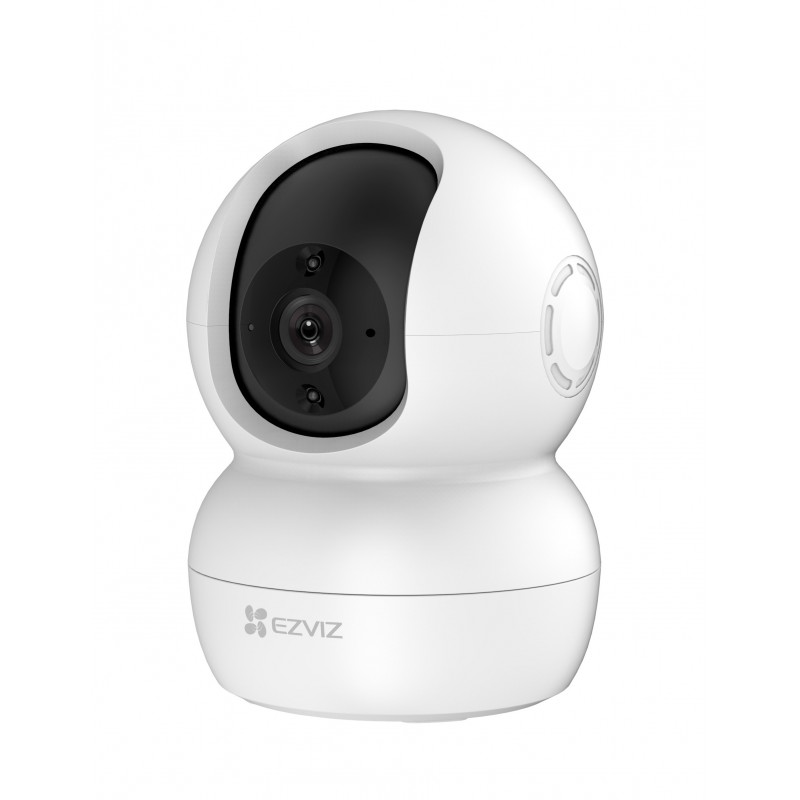

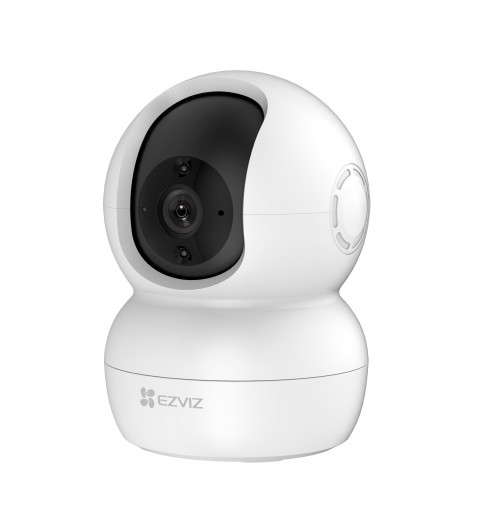

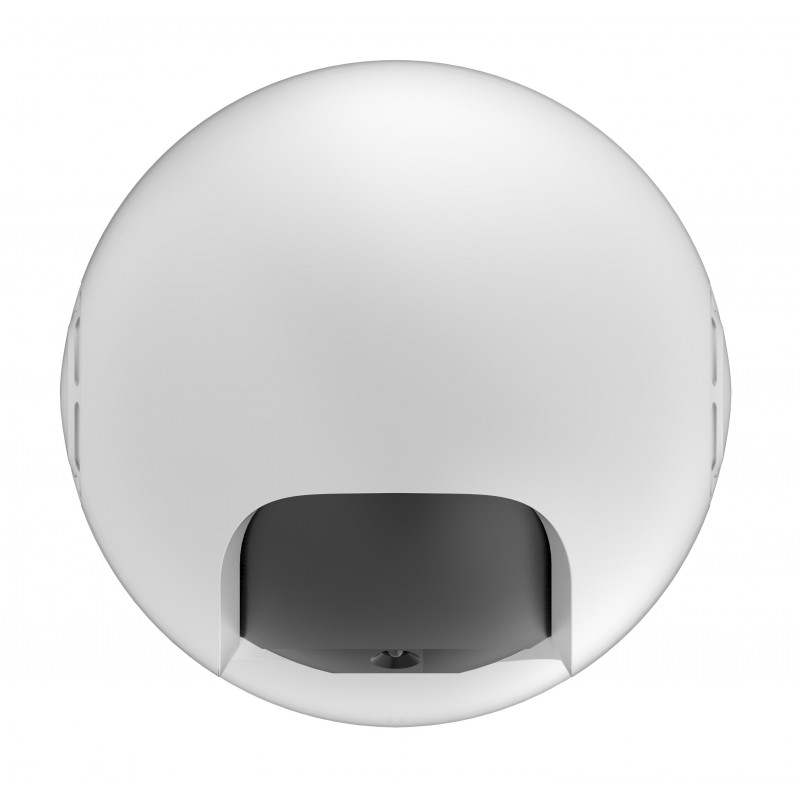

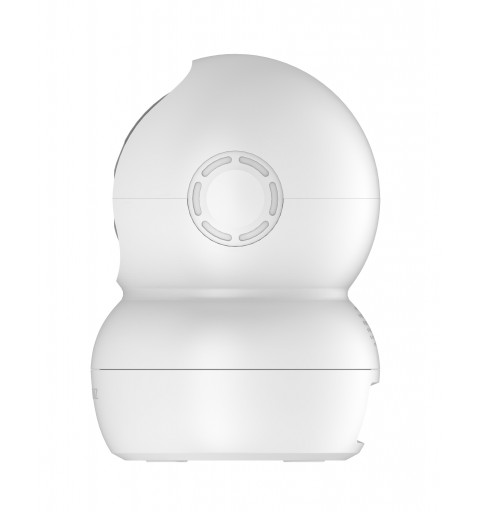

EZVIZ TY2 IP security camera Indoor Spherical 1920 x 1080 pixels Desk

Smart Wi-Fi Pan & Tilt Camera
Watch over your entire space easily with the TY2 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

Zero blind spots.
Keep tabs on every corner with just one TY2. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Smart tracking.
When the camera detects a moving object, it is smart enough to automatically track the motion while alerting you with an image in real time.

Communication, anytime.
Talk to your loved ones and deter unwelcome strangers – all by using the TY2’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark.
Enjoy round-the-clock protection with the TY2 camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

We protect your data and privacy.
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

Multiple storage options.
With multiple storage options, you can choose where to save your recordings. The TY2 camera can even save to all three locations at the same time for added backup in case the camera is damaged, or your network crashes.

Security at Your Fingertips
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.

EZVIZ TY2. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Form factor: Spherical, Mounting type: Desk, Product colour: Black, White. Angle of rotation: 360°, Tilt angle range: 0 - 55°, Pan range: 0 - 340°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm

Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Auto-tracking	Y
Auto pan mode	Y
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Remote viewing	Y
Antenna type	Internal
Operating frequency	2400 - 2483.5 MHz
Infrared (IR) cut-off filter	Y
Design
Form factor	Spherical
Mounting type	Desk
Product colour	Black, White
Camera
Camera pan control	Y
Camera tilt control	Y
Angle of rotation	360°
Tilt angle range	0 - 55°
Pan range	0 - 340°
Camera shutter type	Electronic
Adjustment shutter speed	Auto
Image sensor
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 3 mm (1 / 3")
Lens system
Number of lenses	1
Maximum aperture number	2.4
Lens diameter	4 mm
Night vision
Night vision	Y
Night vision distance	10 m
LED type	IR
Video
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Video recording	Y
Frame rate	15 fps
Audio
Built-in speaker(s)	Y
Audio system	2-way
Network
Ethernet LAN	Y
Wi-Fi	Y
Bluetooth	N
Ethernet interface type	Fast Ethernet
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	72 Mbit/s
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB port	Y
DC-in jack	Y
Security
Motion sensor technology	Passive infrared (PIR) sensor
Management features
Web-based management	Y
Power
Power source type	DC
Power consumption (max)	5 W
DC output voltage	5
DC output current	1 A
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	0 - 95%
System requirements
Mobile operating systems supported	Android, iOS
Weight & dimensions
Height	124 mm
Diameter	8.8 cm
Weight	255 g
Cable length	3 m
Package width	103 mm
Package depth	103 mm
Package height	186 mm
Package type	Box
Packaging content
Number of cameras	1
Cables included	AC
Mounting brackets included	Y
Screws included	Y
Manual	Y
