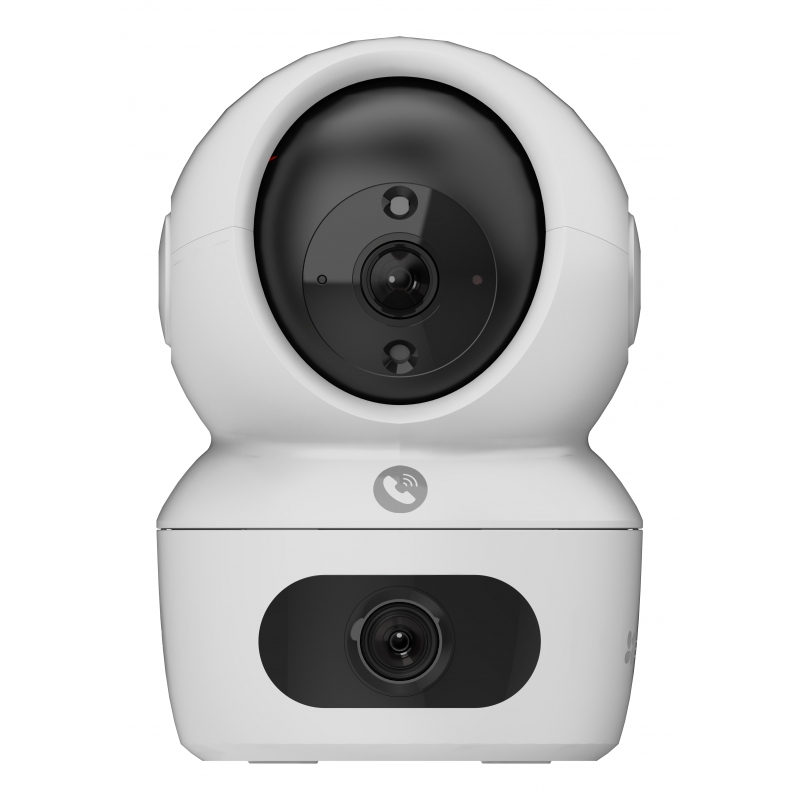

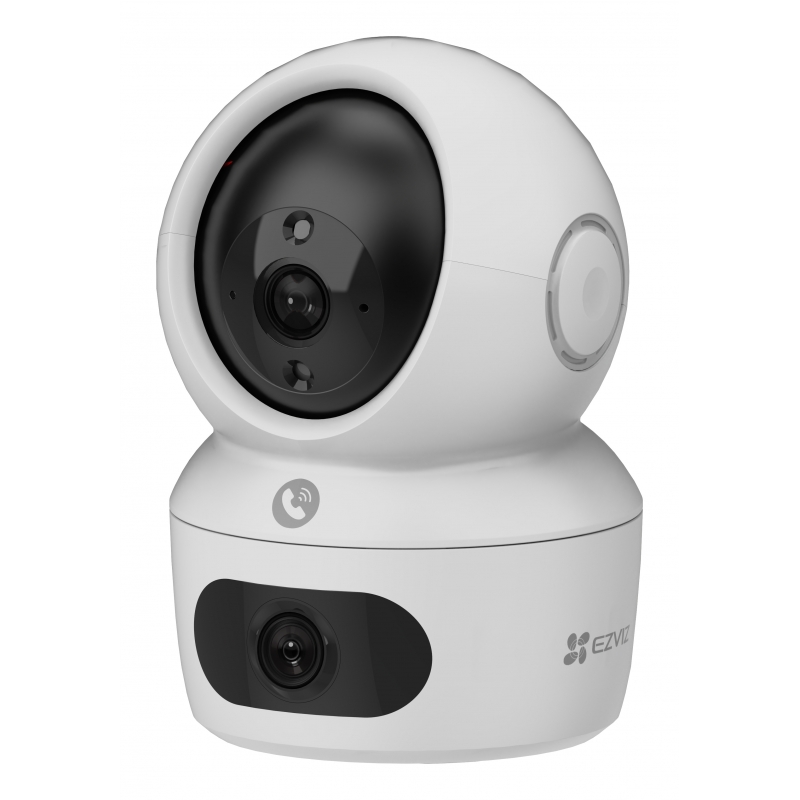

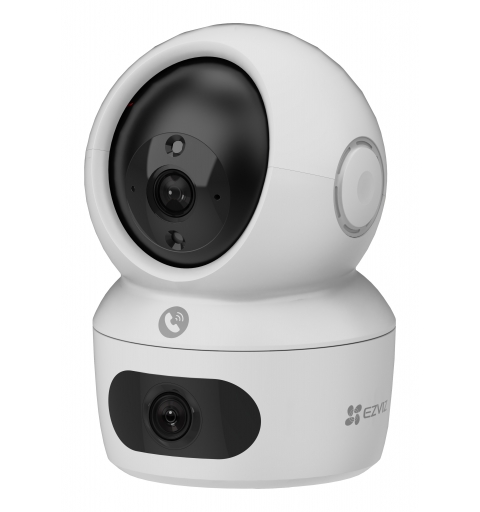

EZVIZ H7c Dual 2K & 2K IP security camera Indoor 2560 x 1440 pixels Ceiling/Desk

H7c Dual 2K⁺ & 2K⁺

Dual-Lens Pan & Tilt Wi-Fi Camera

Broader and smarter protection with dual lenses

Experience unparalleled indoor vision with the EZVIZ H7c Dual. Using two powerful lenses to ensures comprehensive coverage from top to bottom, the camera provides whole-room protection like never before. Equipped with human motion detection, two-way calling, and crystal-clear day/night vision, it keeps you connected to your home from anywhere, and doubles up your sense of safety with much more flexible features.

Dual lenses. Double protection.

With EZVIZ’s unique dual-lens technology, the H7c Dual provides next-level protection that’s usually achieved through a multi-camera setup. It uses a fixed lens and a main pan-and-tilt lens at the same time – the duo works independently or together in a way that is much smarter than your ordinary camera.

01 See much more for whole-home protection

The H7c Dual captures information that’s more than double of your old home camera. It uses a motorized pan and tilt camera to monitor a large interior space with almost no blind spots, and ensure that you always keep the key area under continuous watch with a fixed view, too.

02 Work together for a single detection task

The two lenses respond to each other to provide the protection that makes it much more difficult for anyone to move out of sight. When a person enters the zone watched by the fixed lens, the PT lens will automatically rotate to such viewing angle to lock on the person, follow to record the entire event, and send notifications with video footages.

03 Big picture and small details both matter

The camera allows you to understand the whole picture while paying attention to the important details. Both wide angle and close-up views are displayed simultaneously on your EZVIZ App. Tap on a specific area in the wide-angle viewing box so that a close-up shot will render much more details for you to double check.

Smarter detection for activities you care about

A lot of activities go on inside your home, but you don’t want to get constantly alerted when your curtains flutter in the wind. The H7c Dual is smart enough to notice human activities in particular and can capture sudden sound changes in the environment – all without additional fees to unlock.

Hands-free and worry-free, with customized auto patrols

On set time intervals, the PT lens can automatically complete check-ups to eliminate blind spots. You can customize patrol routes flexibly for tailored focuses, or simply ask it to complete a full-circle horizontal spin.

Love continues, regardless of distance

Staying connected with your family is always a necessity. A simple tap on the camera is all it takes for your children or elderly parents to reach you.

Overnight protection in vivid colors

The H7c Dual uses starlight lenses to render high-quality colorful images even in low light conditions. Furthermore, it uses a built-in spotlight to deliver color night vision in complete darkness.

When the smart night vision mode is activated, it will automatically switch its view from black-and-white to full-color upon motion detection.

EZVIZ H7c Dual 2K & 2K. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Desk, Product colour: White. Lens viewing angle, horizontal: 92°, Lens viewing angle, vertical: 50°, Lens viewing angle, diagonal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 3 mm (1 / 3"), Fixed focal length (panoramic camera): 6 mm

Prestazione
Tipo	Telecamera di sicurezza IP
Posizionamento supportato	Interno
Tecnologia di connessione	Con cavo e senza cavo
Wide Dynamic Range (WDR)	Sì
Filtro di cut-off per Infrarossi (IR)	Sì
Visualizzazione remota	Sì
Livello di guadagno dell'antenna (max)	3,18 dBi
Design
Tipo di montaggio	Soffitto/Scrivania
Colore del prodotto	Bianco
Macchina fotografica
Controllo della panoramica della fotocamera	Sì
Controllo dell'inclinazione della telecamera	Sì
Angolo di visione dell'obiettivo, orizzontale	92°
Angolo di visione dell'obiettivo, verticale	50°
Angolo di visione dell'obiettivo, diagonale	108°
Fotocamera panoramica
Tipo di sensore (fotocamera panoramica)	CMOS
Numero di sensori (fotocamera panoramica)	1
Dimensione del sensore ottico (fotocamera panoramica)	25,4 / 3 mm (1 / 3")
Angolo di visione orizzontale (fotocamera panoramica)	51°
Sistema di lente
Numero di lenti	1
Lunghezza focale fissa	2,8 mm
Veduta notturna
Visione notturna	Sì
Distanza di visione notturna	10 m
Video
Risoluzione massima	2560 x 1440 Pixel
Formati video supportati	H.264, H.265
Formati di compressione video	H.264, H.265
Risoluzioni grafiche supportate	2560 x 1440
Modalità video supportate	1440p
Registrazione video	Sì
Frame rate	30 fps
Riduzione rumore	Sì
Tecnologia della riduzione del rumore	Riduzione del rumore 3D
Range dinamico grandangolo digitale (DWDR)	Sì
Audio
Sistema audio	2-vie
Collegamento in rete
Collegamento ethernet LAN	Sì
Wi-Fi	Sì
Bluetooth	No
Tipo di interfaccia Ethernet	Fast Ethernet
Standard Wi-Fi	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Gamma di frequenza	80 MHz
Banda di frequenza	2.4 - 5.25 GHz
Archiviazione
Disco rigido integrato	No
Lettore di schede integrato	Sì
Tipi schede di memoria	MicroSD (TransFlash)
Memoria espandibile fino a	512 GB
Connettività
Quantità porte Ethernet LAN (RJ-45)	1
Porta USB	Sì
Sicurezza
Protezione della privacy	Sì
Caratteristiche di gestione
Servizi Cloud supportati	EZVIZ Cloud
Gestione energetica
Tipologia alimentazione	dC
Consumo energetico (max)	8 W
Volt CC in uscita	5
Ampère CC in uscita	2 A
Condizioni ambientali
Intervallo temperatura di funzionamento	-10 - 45 °C
Range di umidità di funzionamento	0 - 95%
Dimensioni e peso
Larghezza	88 mm
Profondità	88 mm
Altezza	131,5 mm
Peso	270 g
Contenuto dell'imballo
numero di telecamere	1
Cavi inclusi	USB
Staffe di montaggio incluse	Sì
Viti incluse	Sì
Dima di foratura inclusa	Sì
Adattatore AC/DC	Sì
Guida rapida	Sì
Altre caratteristiche
Rilevamento rumori	Sì
