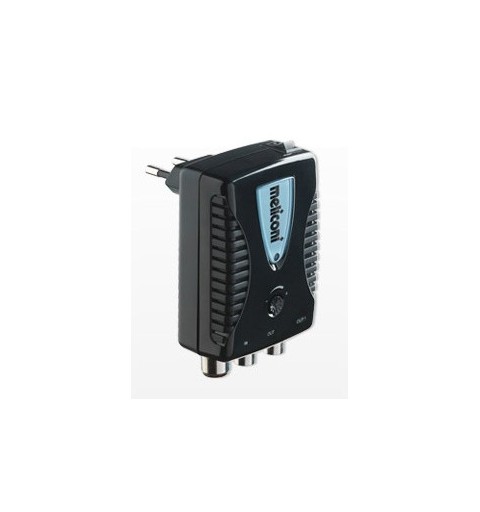

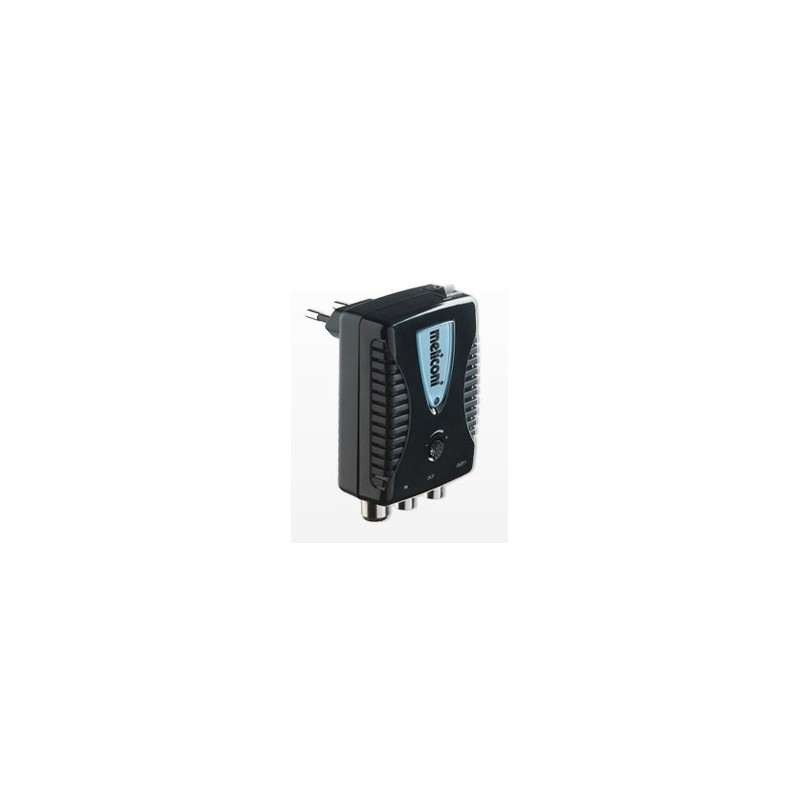

Meliconi AMP 20 TV signal amplifier 40 - 790 MHz

AMP 20
The AMP 20 signal amplifier amplifies over 10 times the analogue or digital TV signal coming from an external aerial. This allows the signal to be distributed to two separate appliances and/or very long aerial cables to be used with no loss of signal quality. The appliance should be located between the aerial socket and the TV and connected to both (aerial cable at input, TV cable at output). The appliance is ready to use and requires no special installation. Aerial cable included. To guarantee optimum results, amplification can be adjusted.

Indoor digital signal amplifier:

- Amplifies analogue and digital TV signals over 10 times
- Improves image and sound quality in the event of disturbance caused by over long connections or interference from other electronic devices
- Ideal for distributing an aerial signal to 2 devices
- Easy to install and ready for use
- 1.5 m aerial cable included
- 1 input socket / 2 output sockets 75 Ohm
- Amplification up to 20 dB
- Adjustable gain control
- Power supply 230 Vac / 50 Hz 3W
- Frequency range 40 - 862 MHz

Meliconi AMP 20. Power consumption (typical): 3 W, Input voltage: 230 V, Input frequency: 50 Hz

Technical details
Frequency range	40 - 790 MHz
Certification	CE
Ports & interfaces
Ports quantity	3
Power
Input frequency	50 Hz
