Meliconi CME EDR400 139.7 cm (55") Black

MELICONI presents the FLATSTYLE wall brackets, an affordable range with essential lines, aiming for function and practicality. FLATSTYLE brackets meet any type of need: from ultra-flat brackets for LED TVs to 90° tiltable brackets, all strictly made in Italy and with 5-years warranty.

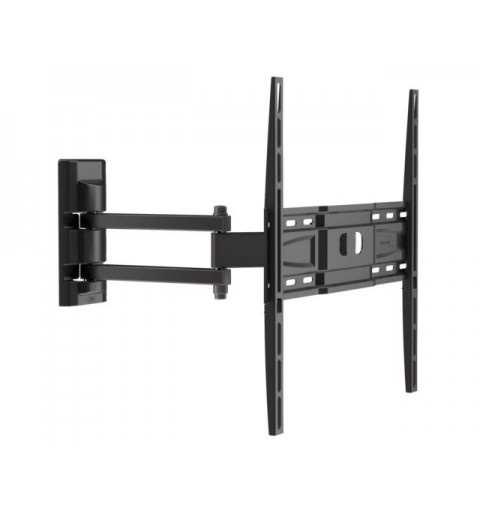

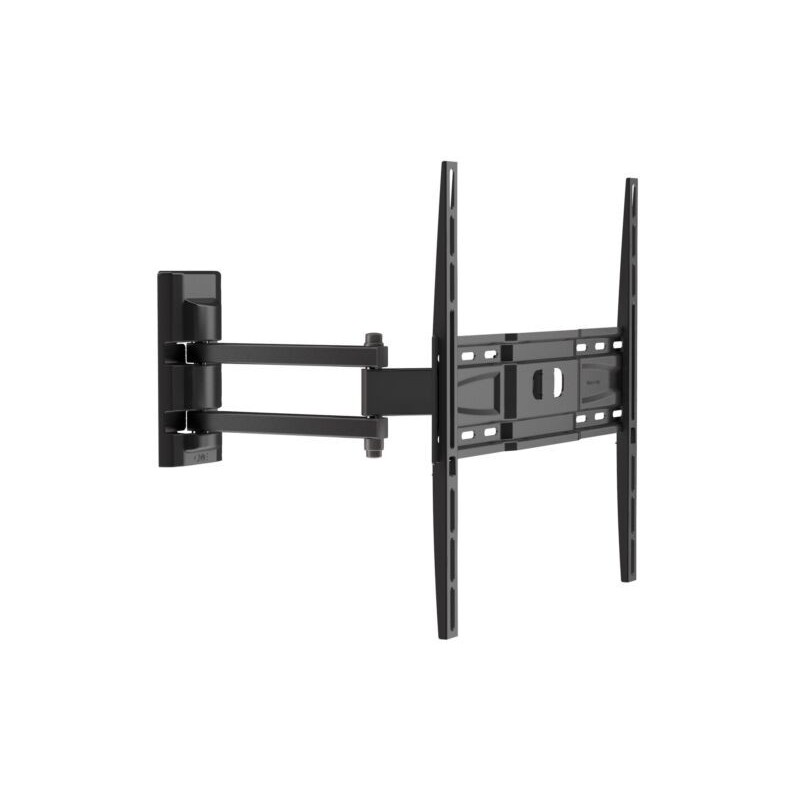

EDR 400 is a bracket suitable for all TV sets with VESA 200 – 300 – 400 mm holes; the double arm has a double benefit:
- it is possible to move the TV further away from the wall and tilt it horizontally or vertically;
- even when closed toward the wall, the TV remains centred with regards to the fastening point.

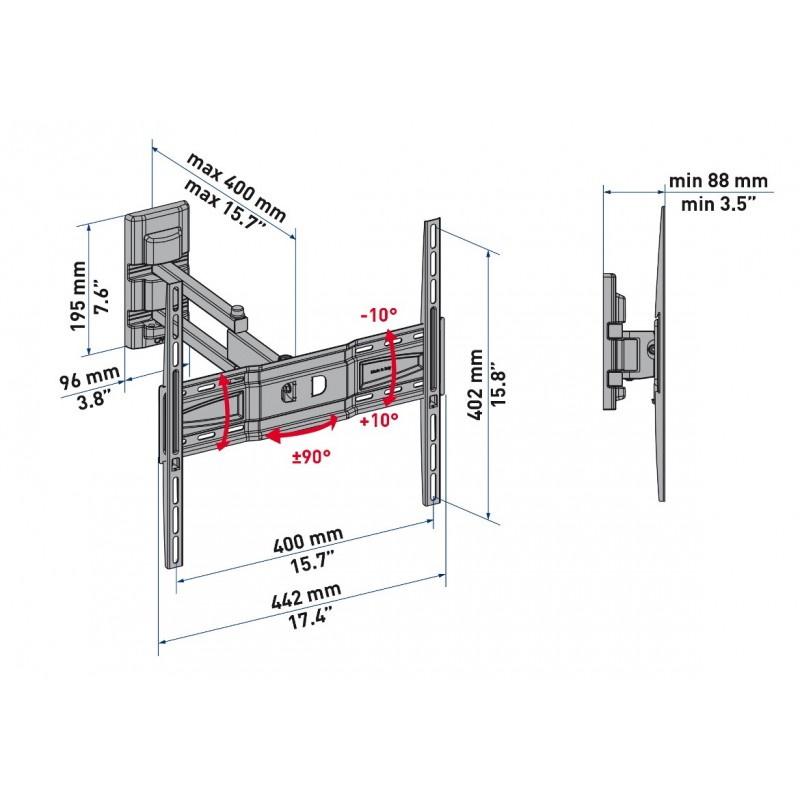

Meliconi CME EDR400. Maximum weight capacity: 25 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 10°, Swivel angle range: -50 - 50°, Distance to the wall (min): 8.8 cm, Distance to the wall (max): 40 cm. Product colour: Black

Mounting
Maximum weight capacity	25 kg
Minimum screen size	101.6 cm (40")
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	200 x 200,300 x 300,400 x 400
Number of displays supported	1
Ergonomics
Tiltable	Y
Tilt angle range	-15 - 10°
Swivel angle range	-50 - 50°
Rotating	Y
Distance to the wall (min)	8.8 cm
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	442 mm
Depth (min)	8.8 cm
Depth (max)	40 cm
Height	402 mm
Packaging data
Quantity per pack	1 pair(s)
