Daikin ATXP35N ARXP35N Air Conditioner 3.5KW 12000BTU Siesta Superplus A++ R32 Inverter Wifi White -

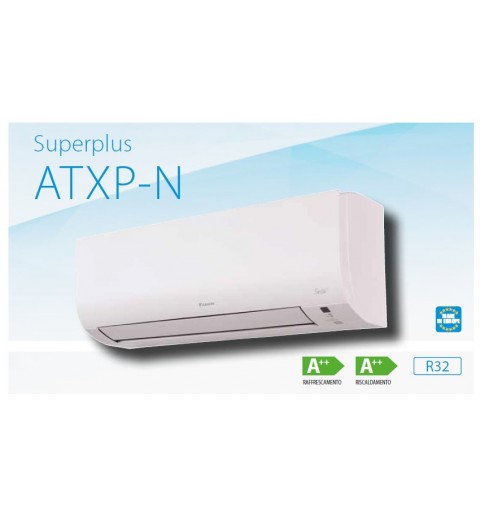

New model Siesta Superplus by Daikin - ATXP-N ARXP-N (Made in Europe)

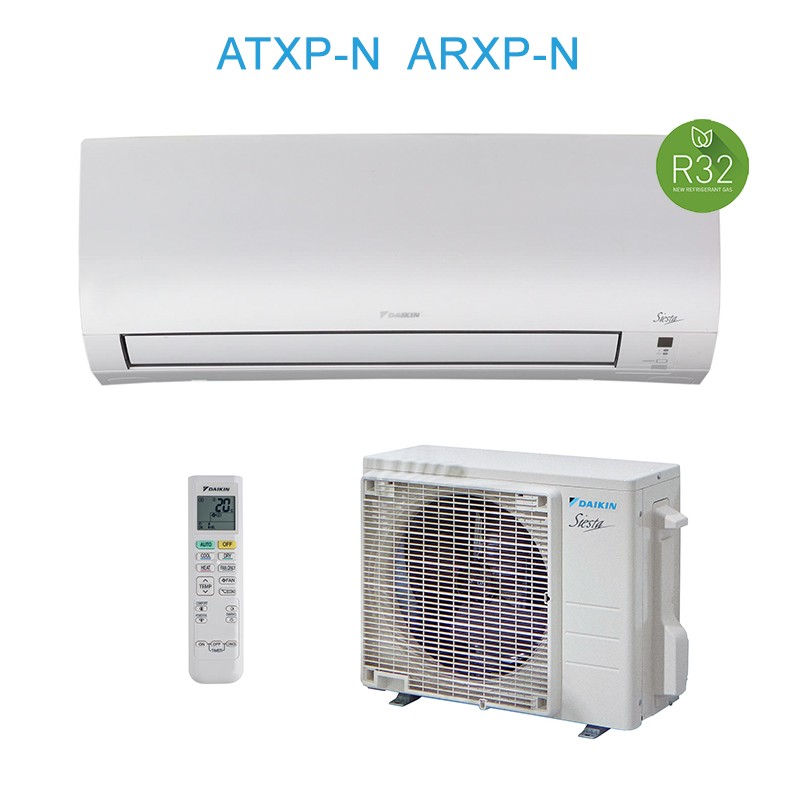

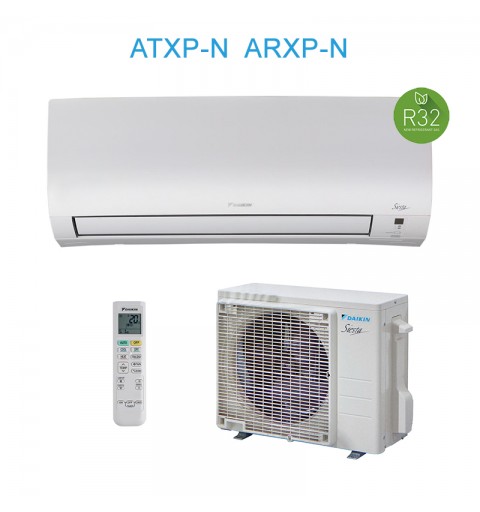

Siesta Air Conditioner Kit Superplus 12000 btu, consisting of the internal split ATXP35N, the external motor ARXP35N, and the remote control
Wall-mounted unit with excellent value for money ratio
____
Product Features
Siesta wall unit offering high efficiency and comfort. Maximum silence: when the unit is in operation, the noise is barely perceptible. Thanks to Onecta (integrated), it is possible to control the indoor environment from any position with an app, also monitoring energy consumption. The 3-D airflow combines automatic vertical and horizontal oscillation for the distribution of hot or cold air flow in every corner, even in large spaces. The product design, modern and compact, ensures minimal wall space occupation. Choosing an R32 product reduces environmental impact by 68% compared to R410A and directly reduces energy consumption due to high energy efficiency. Seasonal efficiency values determine class A ++ in cooling and heating.

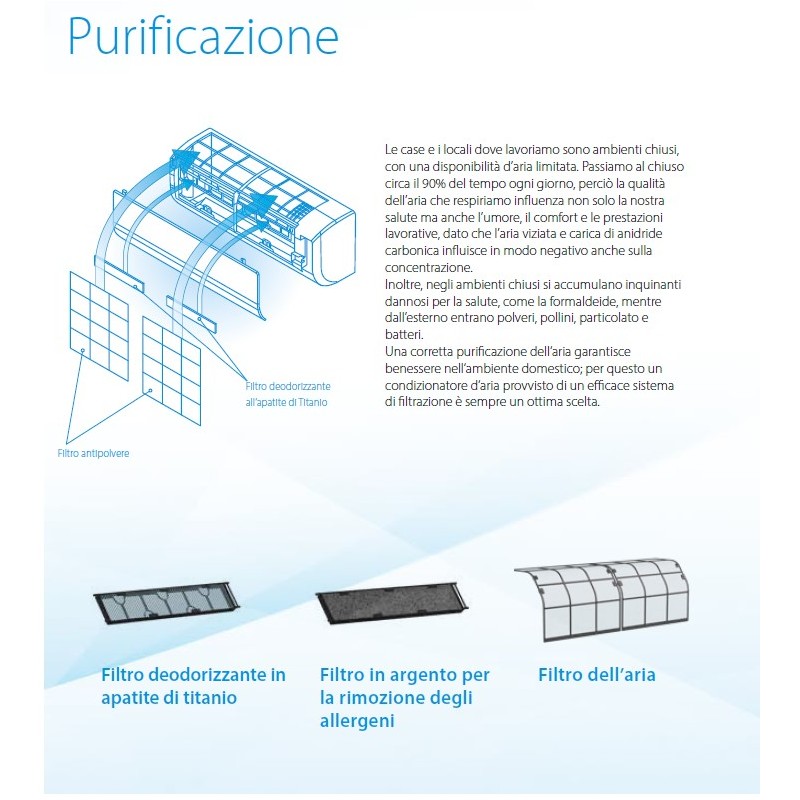

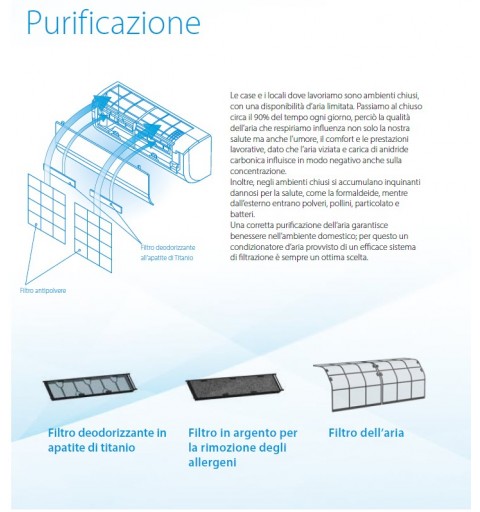

- Three-stage filtration
1 - Titanium apatite deodorizing filter that breaks down odors, such as tobacco and animals
2 - Silver filter for removing allergens such as pollen and mites
3 - Dust filter removes dust particles in the air ensuring clean air delivery - Three-dimensional ventilation flow
- Maximum silence, only 19 dBA
- Compact unit, only 770 mm in length
- Extended operating range relative to external temperature (-15~48)°C
- Integrated Wi-Fi: BRP069C47
Technical Features

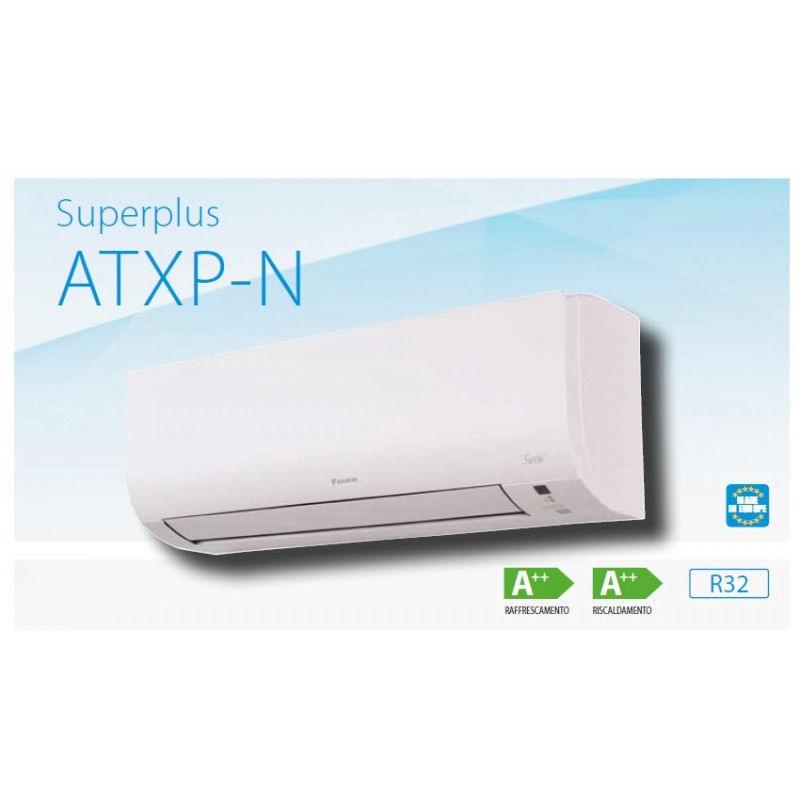

- Internal unit catalog code: ATXP35N

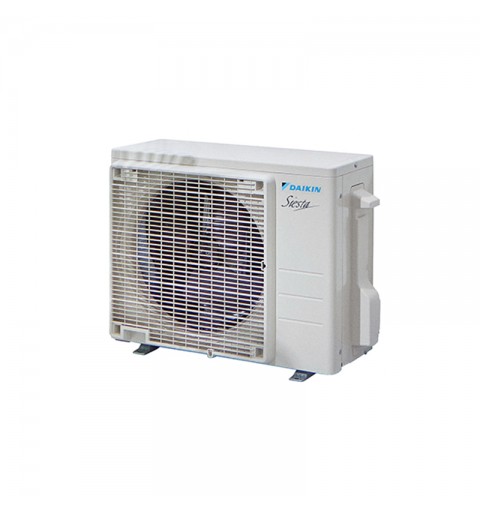

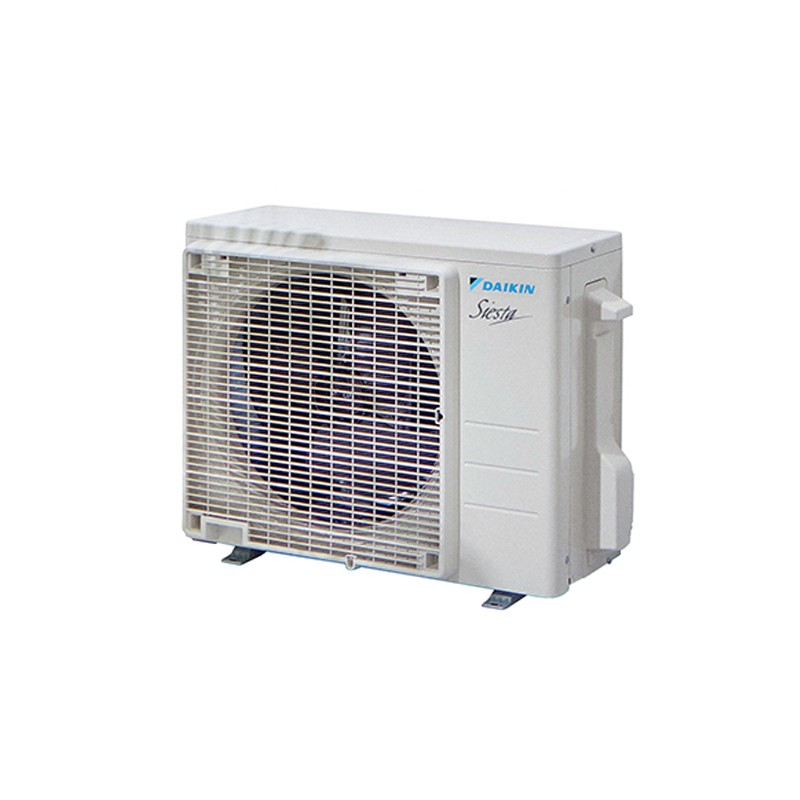

- External unit catalog code: ARXP35N
- Power: 12000 Btu
- Color: White
Energy-saving function in standby
Energy consumption is reduced by approximately 80% in standby mode. If no people are detected for a period exceeding 20 minutes, the system automatically switches to energy-saving mode.
Night mode
Saves energy by preventing excessive temperature rise or fall during the night.
Econo mode
This function reduces power consumption, making it available for other applications that require high power. This function also helps save energy.
Fan-only mode
The air conditioner can also be used in fan-only mode, without cooling or heating.
24-hour timer
The timer can be set to start cooling or heating at any time within 24 hours.

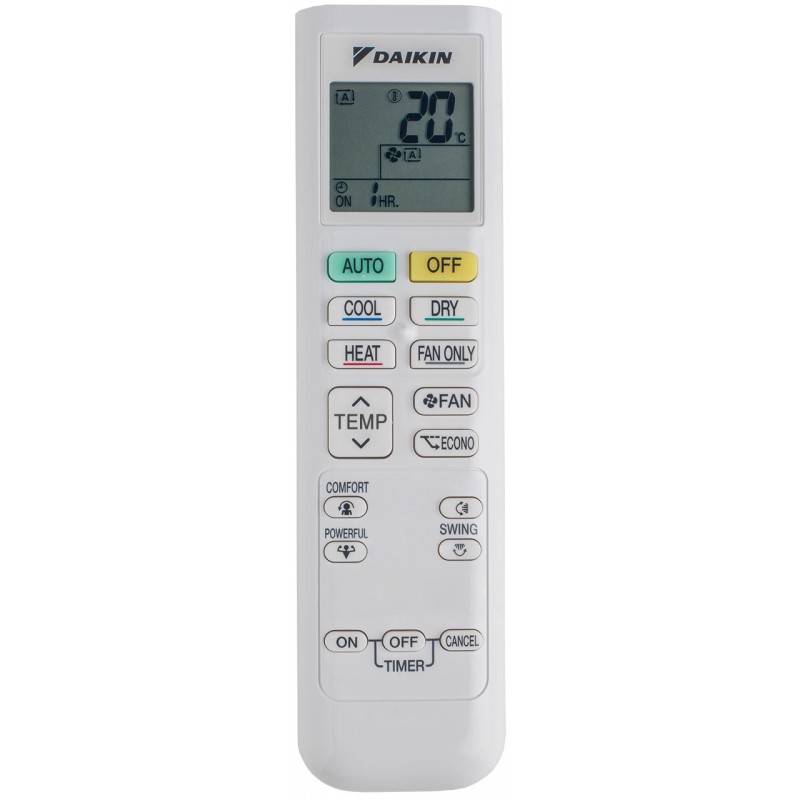

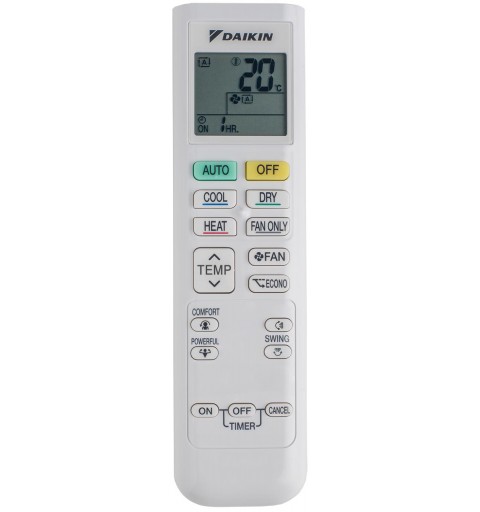

Infrared remote control
Infrared remote control with LCD display to start, stop, and adjust the air conditioner remotely.

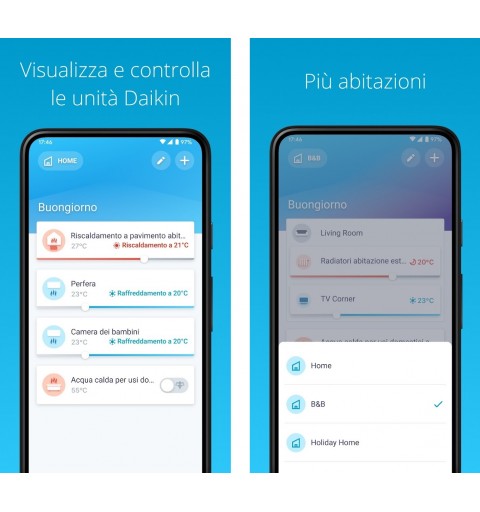

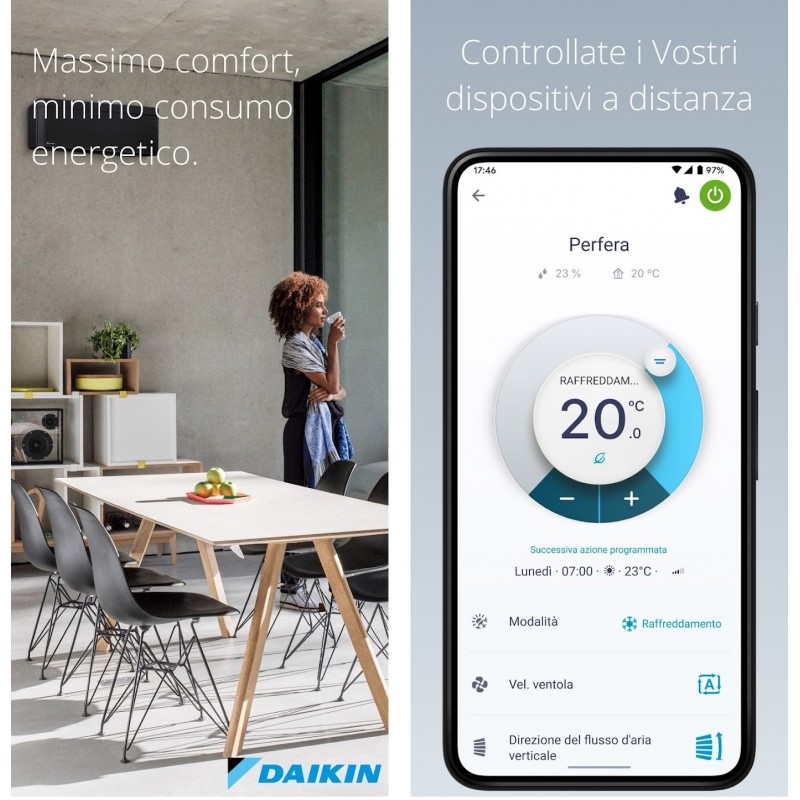

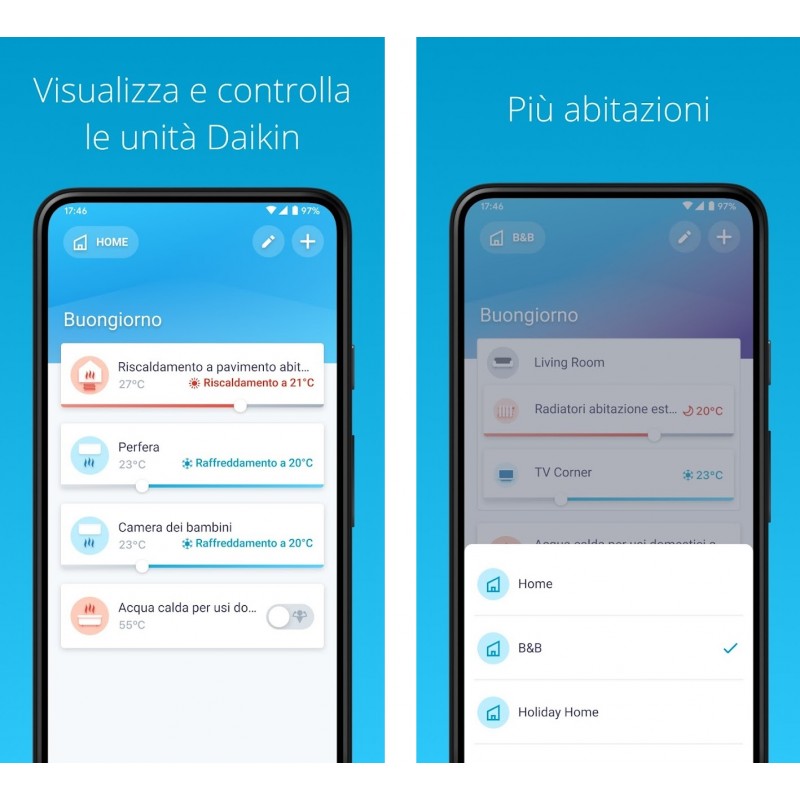

Onecta App
Control your indoor unit anywhere, via the app thanks to integrated Wi-Fi
Comfort mode
The new deflector changes the angle of air outlet horizontally for cooling and vertically downwards for heating. This prevents cold or hot air from concentrating at the bottom or top, generating non-uniform temperature in the environment.
Maximum power mode
If the room temperature is too high or low, it can be quickly cooled or heated by selecting "Powerful Mode". Once "Powerful Mode" is turned off, the unit returns to the preset mode.
Automatic cooling-heating switching
Automatically selects cooling or heating mode to reach the set temperature (heat pump only).
Internal unit Silent function
Reduces the operating sound level of the internal unit by 3 dB(A). This function is useful when studying or sleeping.
Automatic vertical oscillation
You can select the automatic vertical oscillation of the supply deflector to optimize airflow and temperature distribution.
Automatic fan speed adjustment
Automatically selects fan speed to reach or maintain the set temperature.
Three-dimensional airflow
This function uses oscillatory movement both vertically and horizontally to ensure circulation of hot/cold air even in corners of large rooms.
Step fan speed
Allows selection of different fan speed options.
Silver filter for allergen removal and air purification
Captures allergens such as pollen ensuring constant delivery of clean air.
Titanium apatite deodorizing filter
Breaks down odors, such as tobacco and animals
Dust filter
Removes dust particles suspended in the air ensuring constant delivery of clean air.
Dehumidification program
Manages humidity reduction in the air avoiding excessive cooling.
Automatic restart function
After a power outage, the unit automatically restarts with the original settings.
Self-diagnosis
Simplifies maintenance by indicating system malfunctions or operation anomalies.
____
Technical Specifications ATXP35N / ARXP35N
| Cooling Capacity | Min. | | kW | 1.3 |
| Nom. | | kW | 3.50 |
| Max. | | kW | 4.0 |
| Heating Capacity | Min. | | kW | 1.30 |
| Nom. | | kW | 4.0 |
| Max. | | kW | 4.8 |
| Nominal Efficiency | COP | | | 4.02 |
| EER | | | 3.24 |
| Energy Class | Cooling | | A++ |
| | Heating | | A++ |
| Annual Energy Consumption | | kWh | 178 |
Technical Specifications Internal Unit ATXP35N
Specifiche Tecniche Unità Esterna ARXP35N
| Casing | Colour | | | | White |
| Dimensions | Unit | | Height | mm | 286 |
| | | Width | mm | 770 |
| | | Depth | mm | 225 |
| Weight | Unit | | | kg | 9.0 |
| Fan | Air Flow | Cooling | High | m³/min | 11.5 |
| | | Medium | m³/min | 8.3 |
| | | Low | m³/min | 6.3 |
| | | Quiet Operation | m³/min | 4.5 |
| | Heating | High | m³/min | 11.5 |
| | | Medium | m³/min | 9.0 |
| | | Low | m³/min | 7.0 |
| | | Quiet Operation | m³/min | 5.3 |
| Sound Power Level | Cooling | | | dBA | 58.0 |
| Heating | | | dBA | 58.0 |
| Sound Pressure Level | Cooling | | High | dBA | 43.0 |
| | | Medium | dBA | 34.0 |
| | | Low | dBA | 27.0 |
| | | Quiet Operation | dBA | 20.0 |
| Heating | | High | dBA | 40.0 |
| | | Medium | dBA | 35.0 |
| | | Low | dBA | 29.0 |
| | | Quiet Operation | dBA | 21.0 |
| Piping connections | Liquid | | OD | mm | 6.35 |
| Gas | | OD | mm | 9.50 |
| Discharge | | | | 18 |
| Air Filtration | 3-Stage Filtration | | | | Titanium Apatite Deodorizing Filter - Silver Filter - Dust Filter |
| Control Systems | Wired Remote Control | | | | BRP069C47 |
| Standard Accessories | Installation Manual | | | | 1 |
| User Manual | | | | 1 |
| General Safety Measures | | | | 1 |
| Infrared Remote Control | | | | 1 |
| AAA Dry Batteries | | | | 2 |
| Remote Control Bracket | | | | 1 |
| Mounting Plate | | | | 1 |
| Indoor Unit Fixing Screws | | | | 2 |
| Power Supply | Phase | | | | 1~ |
| | | | Hz | 50 |
| | | | V | |
| Dimensions | Unit | | Height | mm | 556 |
| | | Width | mm | 740 |
| | | Depth | mm | 343 |
| Weight | Unit | | | kg | 24.0 |
| Compressor | Compressor Type | | | | Hermetic Swing Type Compressor |
| Operating Range | Cooling | External Temp. | Min. | °C/BS | -10 |
| | | Max. | °C/BS | 48 |
| Heating | Ext. Temp. | Min. | °C/BU | -15 |
| | | Max. | °C/BU | 18 |
| Sound Pressure Level | Cooling | | High | dBA | 48.0 |
| Heating | | High | dBA | 48.0 |
| Refrigerant | Type | | | | R-32 |
| Charge | | | kg | 0.70 |
| Charge | | | TCO2Eq | 0.48 |
| GWP | | | | 675.0 |
| Piping connections | Pipe Length | | Max. | m | 20.0 |
| Elevation | Int. - Ext. | Max. | m | 12.0 |
| Pipe Connections (ø) | Liquid-gas | | | mm | 6.35 - 9.5 |
| Liquid-gas | | | inches | 1/4 - 3/8 |
| Condensate Drain | | | mm | 18 |
| Standard Accessories | Labels | | | | Fluorinated greenhouse gases - Refrigerant charge |
| Manuals and Discharge Plug | | | | Safety measures - Installation manual - Discharge plug |
| Power Supply | Phase | | | | 1~ |
| Frequency | | | Hz | 50 |
| Voltage | | | V | 220-240 |
