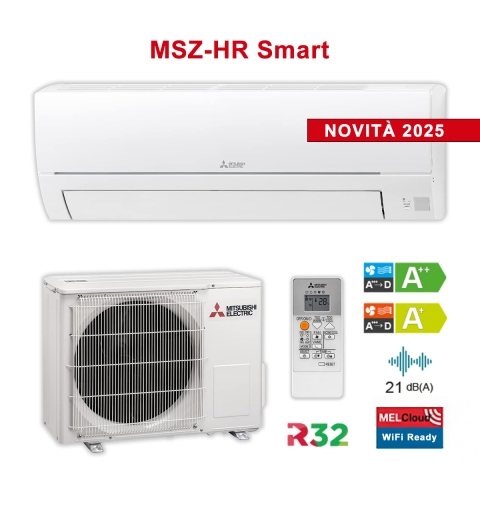

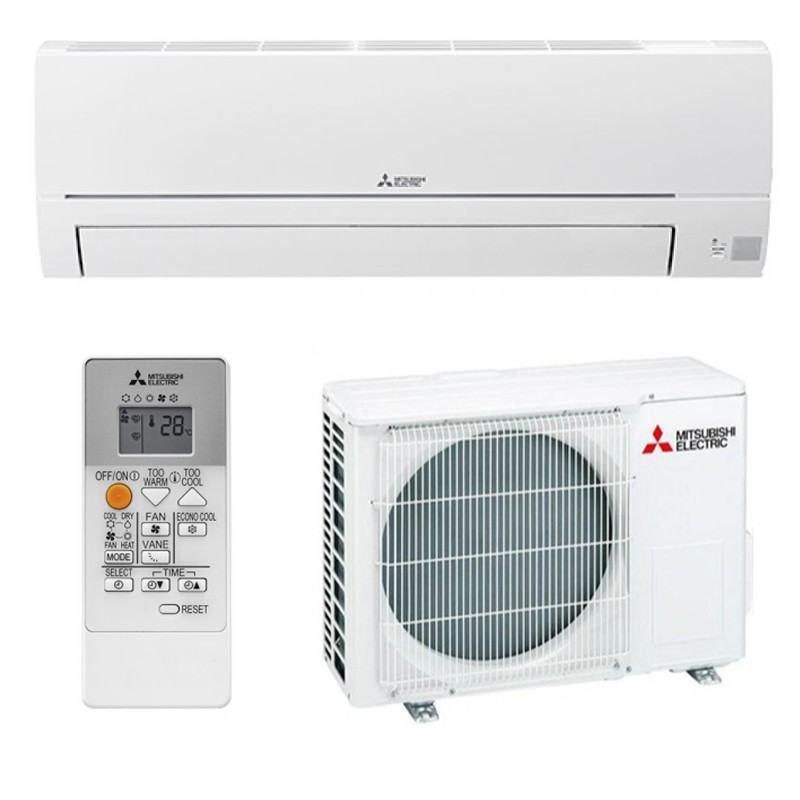

Mitsubishi MSZ-HR35VFE Kit MUZ-HR35VF + MSZ-HR35VFE1 Air Conditioner 12000 Btu 3.5 kW Inverter A++/A+ SMART HR R32

Mitsubishi MSZ-HR35VFE Kit MUZ-HR35VF + MSZ-HR35VFE1 Air Conditioner 12000 Btu 3.5 kW Inverter A++/A+ SMART HR R32

Mitsubishi MSZ-HR35VF Air Conditioner – Energy Class A++/A+ – Capacity: 12000 Btu/h – DC Inverter System – Wi-Fi Ready (MELCloud – optional Wi-Fi kit required).
__

The SMART line offers solutions with an excellent quality/price ratio.
MSZ-HR DC INVERTER / HEAT PUMP

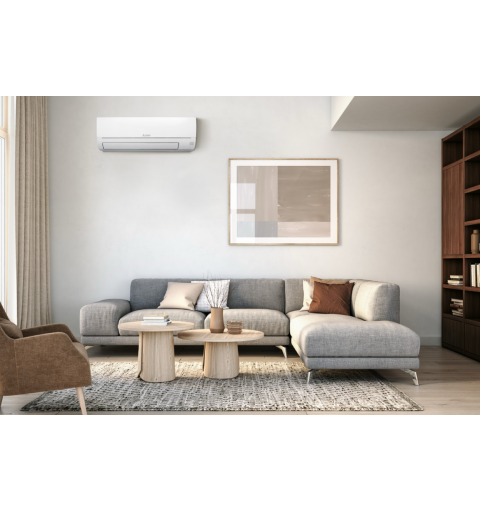

Clean lines, compact dimensions and neutral colours make the MSZ-HR the perfect product for small spaces with modern design and a touch of simplicity. Quiet and energy-efficient, it is the smart choice in the Mitsubishi Electric catalogue.

Model: MSZ-HR35VF
Numeric model: MUZ-HR35VF + MSZ-HR35VFE1
Series: Smart
Type: Monosplit
Cooling capacity: 12000 Btu/h
Technology: Inverter
Energy class: A++/A+
Noise level: 21 dB
Features: Wi-Fi Ready
Colour: White

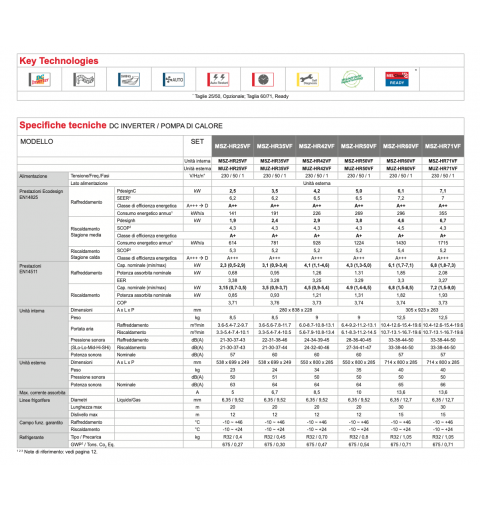

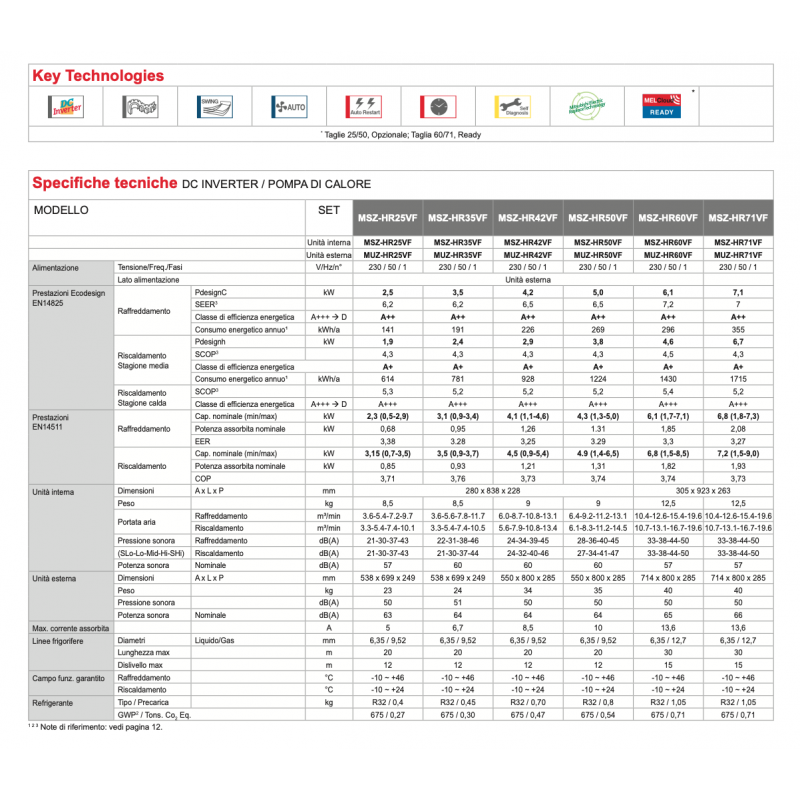

TECHNICAL FEATURES

SEER: 6.2
SCOP: 4.3 / 5.2
Energy class (cooling): A++
Energy class (heating): A+ / A+++
Power: 12000 Btu
Covered area: 25–40 m²

Cooling performance

• Capacity: 3.4 kW

• Power input: 1.21 kW

• Max current: 6.7 A

• Annual energy consumption: 191 kWh/a

• Operating range: –10 ~ +46 °C

Heating performance

• Capacity: 3.6 kW

• Power input: 0.975 kW

• Max current: 6.7 A

• Annual energy consumption: 781 kWh/a

• Operating range: –10 ~ +24 °C

Technical data

• Refrigerant gas: R32

• Power supply (V/Hz/ph): 220~240 / 50 / 1

• Liquid/Gas connections: 6.35 (1/4") / 9.52 (3/8") mm/inch

• Max pipe length: 20 m

• Max height difference: 12 m

Noise levels

• Indoor unit sound pressure (min/max): 21/46 dBA

• Indoor unit sound power: 60 dBA

• Outdoor unit sound pressure max: 51 dBA

• Outdoor unit sound power: 64 dBA

Composition

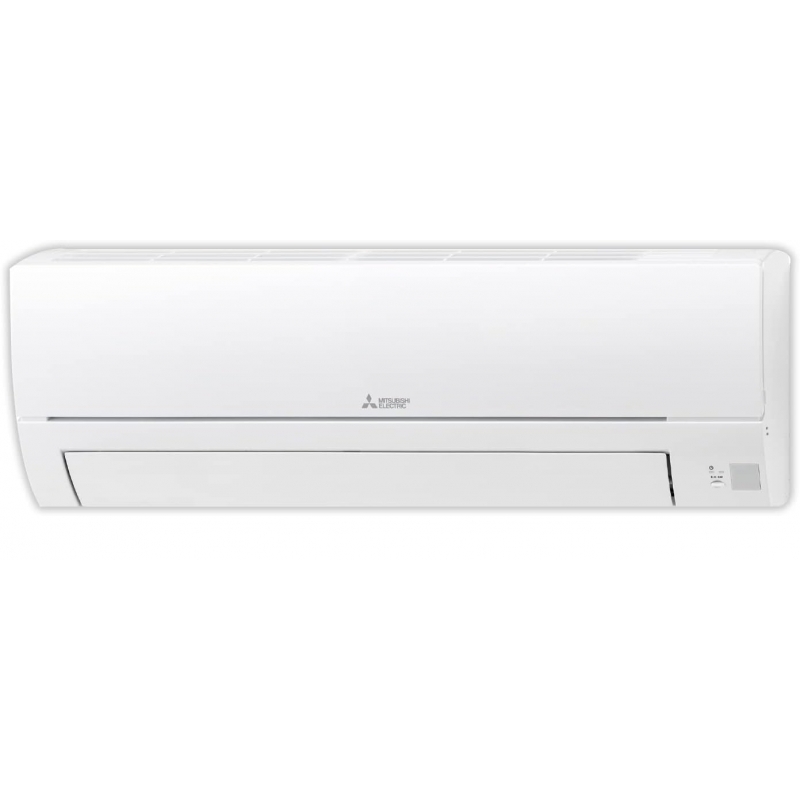

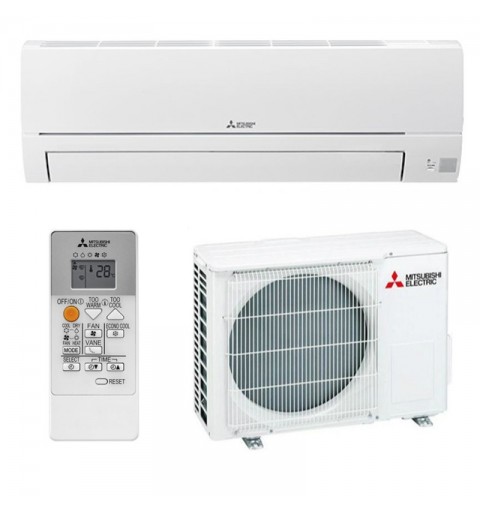

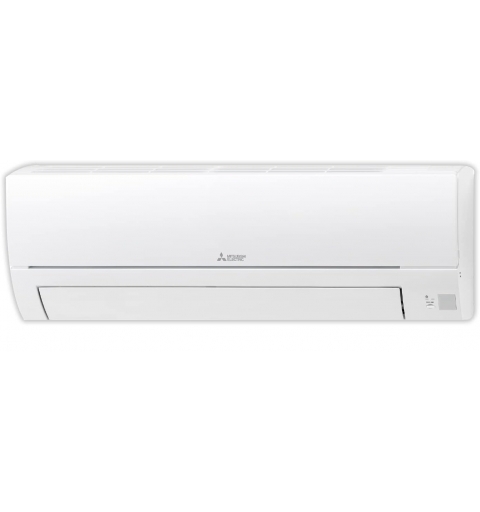

• Indoor unit: MSZ-HR35VF

• Outdoor unit: MUZ-HR35VF

Dimensions

• Indoor unit (WxHxD): 83.8 × 28 × 24.9 cm – Weight: 8.5 kg

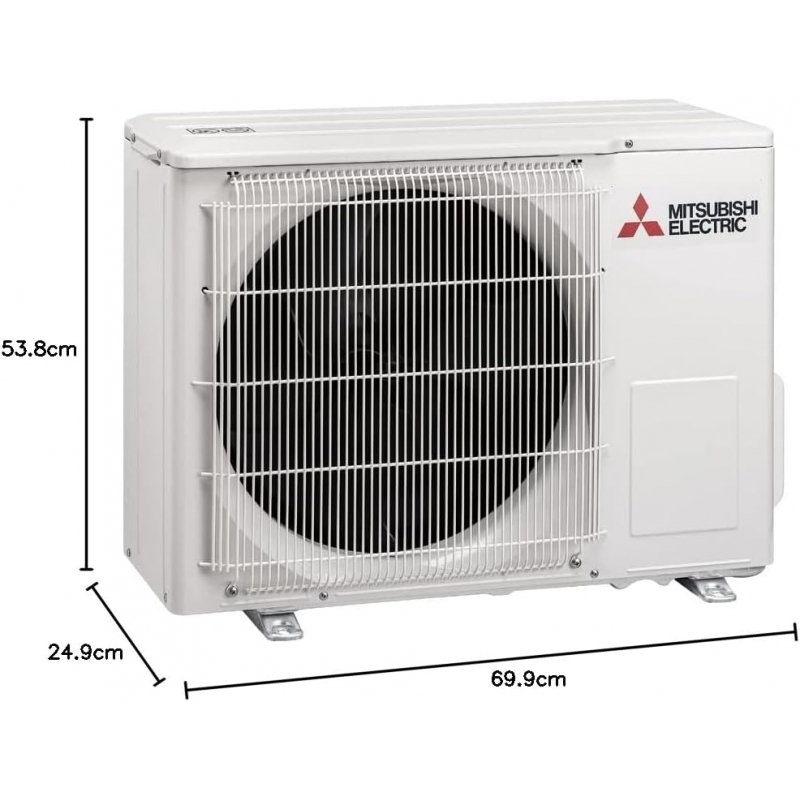

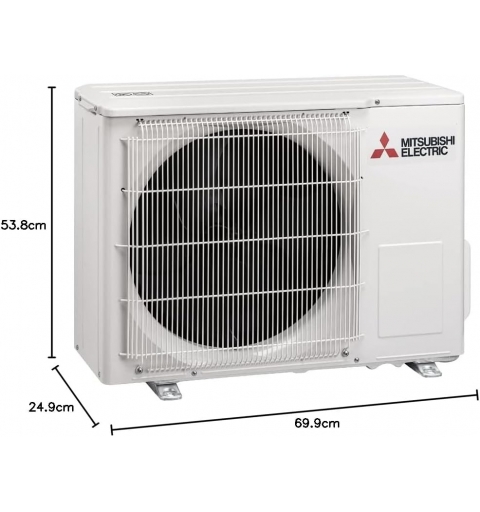

• Outdoor unit (WxHxD): 69.9 × 53.8 × 24.9 cm – Weight: 24 kg
