Daikin ATXM35R ARXM35R Air Conditioner 12000Btu 3.5KW WiFi Siesta Perfera A+++/A+++ Inverter R32

Daikin ATXM35R ARXM35R Air Conditioner 12000Btu 3.5KW WiFi Siesta Perfera A+++/A+++ Inverter R32

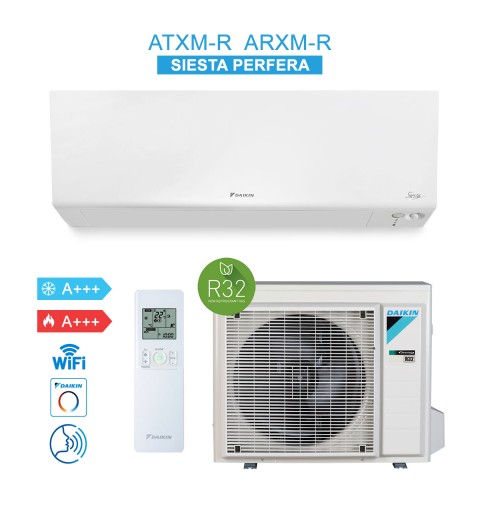

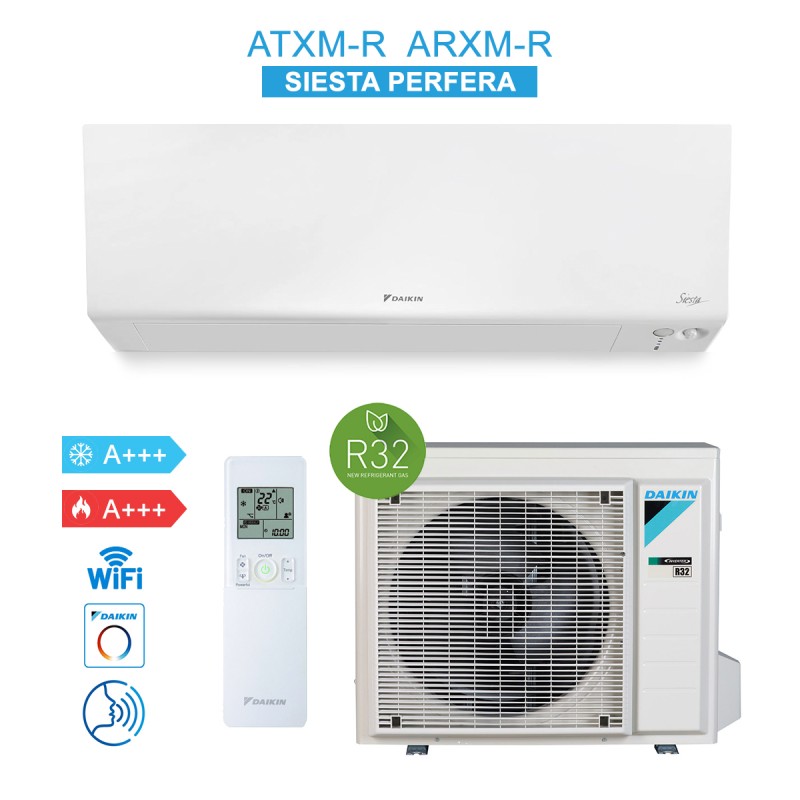

Daikin model Siesta Perfera ATXM-R ARXM-R

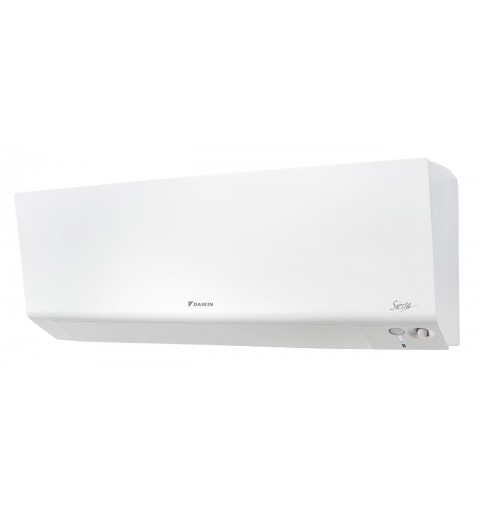

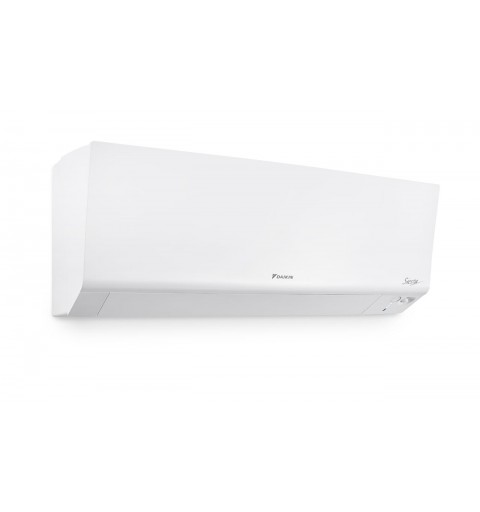

12000 Btu air conditioner kit, consisting of indoor unit ATXM35R, outdoor unit ARXM35R, and remote control.

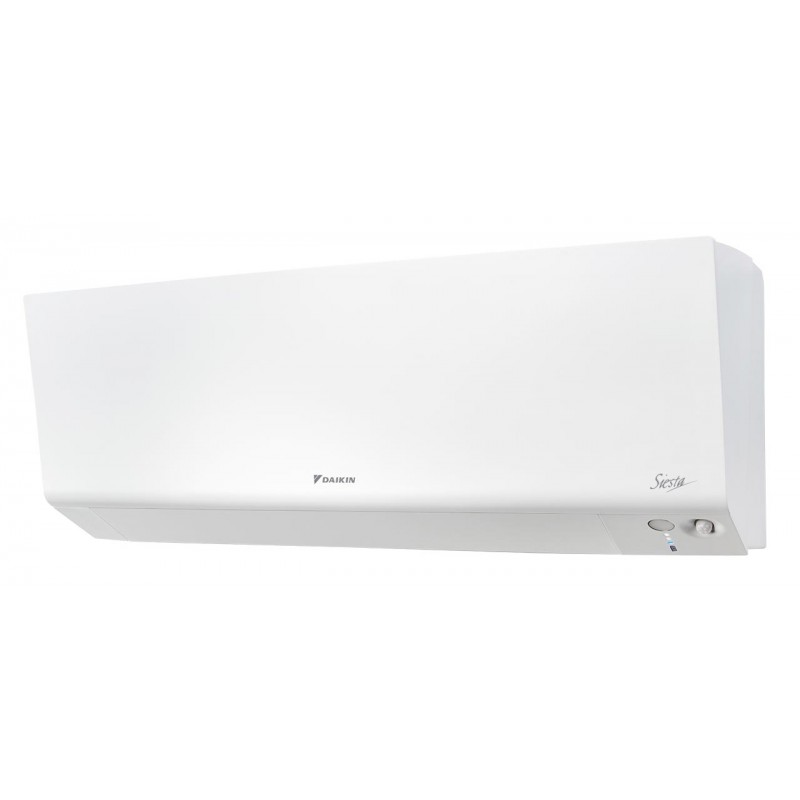

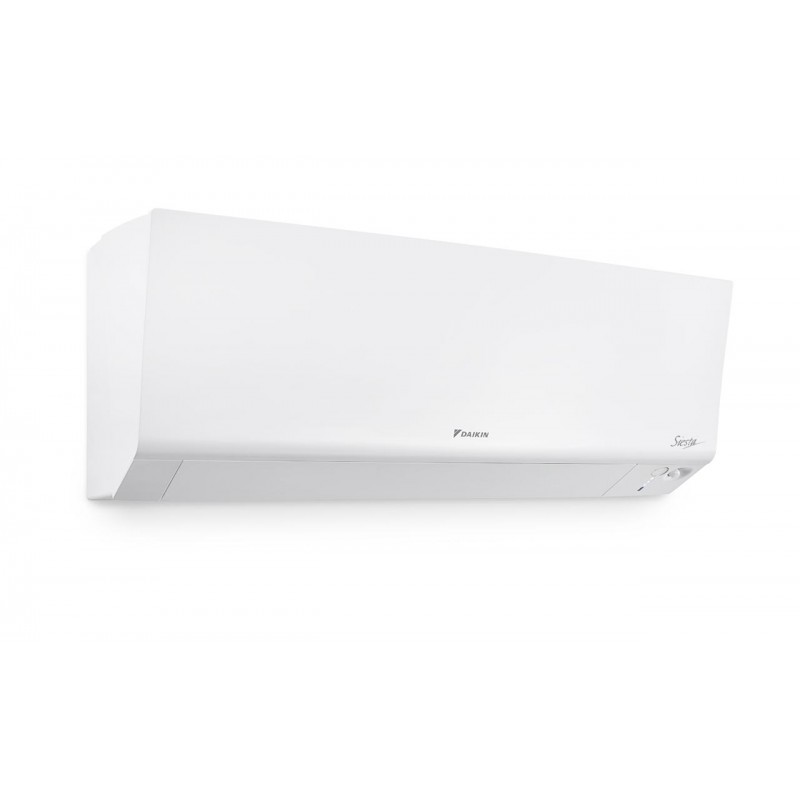

• Indoor unit catalogue code: ATXM35R

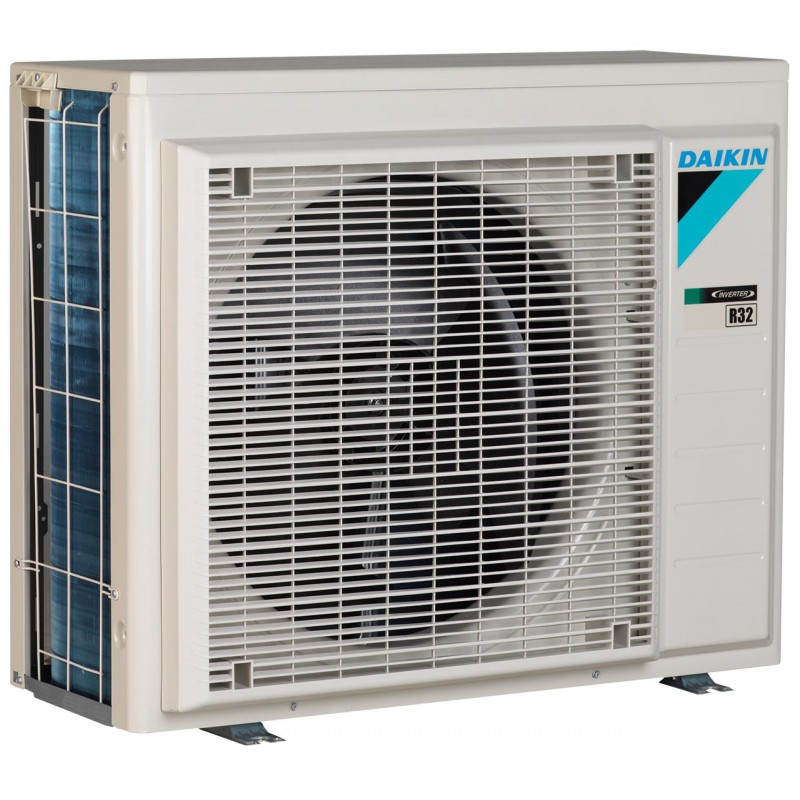

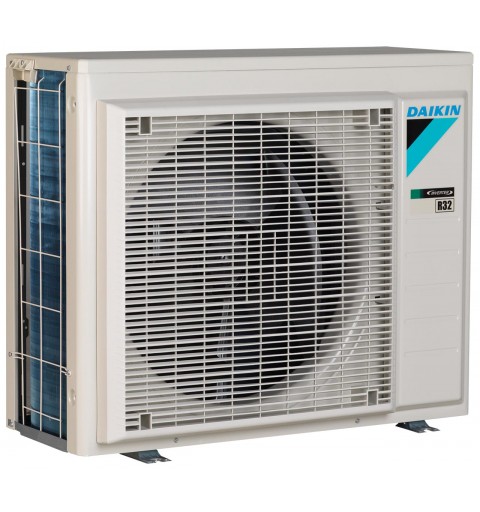

• Outdoor unit catalogue code: ARXM35R

• Power: 12000 Btu

• Energy efficiency class: A+++/A+++

• Built-in Wi-Fi

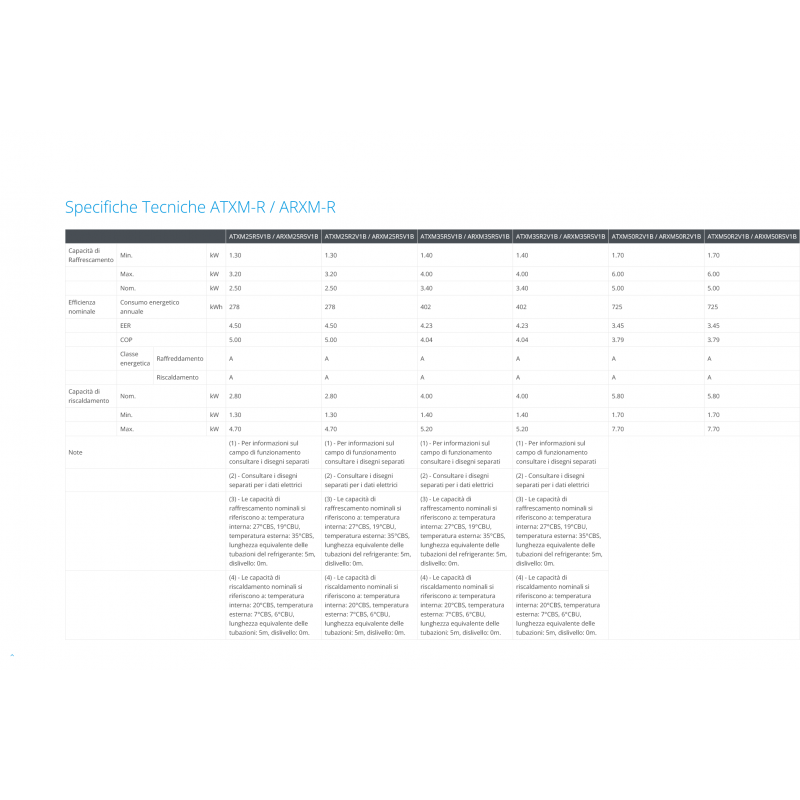

Indoor Unit Technical Specifications

Fan Air Flow Rate – Cooling

• High: 11.3 m³/min

• Medium: 7.8 m³/min

• Low: 6.0 m³/min

• Quiet operation: 4.2 m³/min

Sound Power Level – Cooling

• 58.0 dBA

Sound Power Level – Heating

• 55.0 dBA

Sound Pressure Level

• Cooling:

  • High: 45.0 dBA

  • Medium: 33.0 dBA

  • Low: 25.0 dBA

  • Quiet: 19.0 dBA

• Heating:

  • High: 39.0 dBA

  • Medium: 35.0 dBA

  • Low: 28.0 dBA

  • Quiet: 20.0 dBA

Piping Connections

• Liquid: Ø 6.35 mm

• Gas: Ø 9.5 mm

• Drain: Ø 18 mm

Control Systems

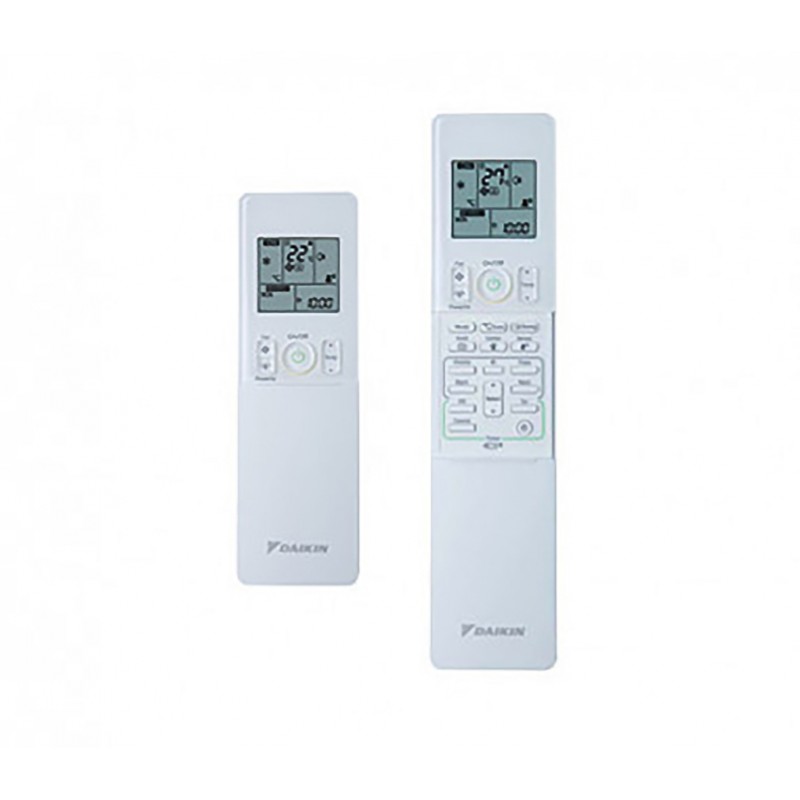

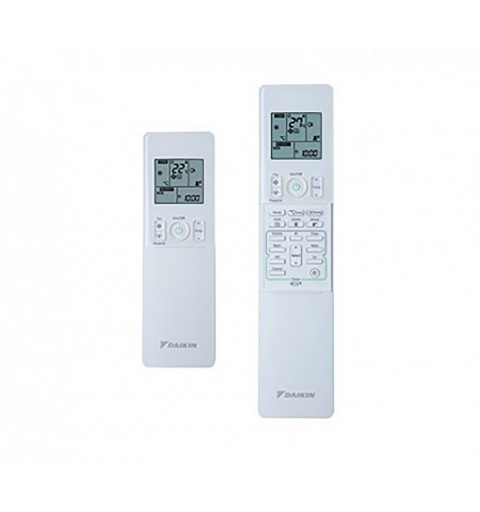

• Infrared remote control: ARC466A67

• Wired remote control: BRC073A1

Standard Accessories

• Installation manual: 1

• User manual: 1

• Filters: Silver particle filter, titanium apatite deodorizing filter

• Infrared remote control: 1

• AAA dry-cell batteries: 2

• Remote control holder: 1

• Mounting plate: 1

• Indoor unit fixing screws: 2

Power Supply

• Phase: 1~

• Frequency: 50 Hz

• Voltage: 220–240 V



Outdoor Unit Technical Specifications

Operating Range

• Cooling (outdoor temp.):

  • Min.: -10°C DB

  • Max.: 50°C DB

• Heating (outdoor temp.):

  • Min.: -18°C WB

  • Max.: 18°C WB

Sound Pressure Level

• Cooling: High – 49 dBA

• Heating: High – 49 dBA

Refrigerant

• Type: R-32

• Charge: 0.76 kg

• GWP: 675.0

Piping Connections

• Max. pipe length (OU - IU): 20 m

• Additional refrigerant charge: 0.02 kg/m (for lengths over 10 m)

• Max. height difference (IU - OU): 15.0 m

Standard Accessories

• Installation manual: 1

• Drain plug: 1

• Refrigerant charge label: 1

• Multilingual fluorinated gas label: 1

• General safety measures: 1

Power Supply

• Phase: 1~

• Frequency: 50 Hz

• Voltage: 220–240 V



____

PRODUCT FEATURES

• Choosing an R-32 product reduces environmental impact by 68% compared to R-410A systems and directly reduces energy consumption thanks to its high energy efficiency.

• Seasonal efficiency values up to A+++ in cooling and heating thanks to the latest technologies and integrated intelligence.

• The auxiliary heating function quickly heats your home when the air conditioner is turned on. The set temperature is reached 14% faster than a conventional air conditioner (monosplit only).

• Outdoor units feature a Swing-type compressor, known for its low noise and high energy efficiency.

• Silver allergen removal and air purifying filter: captures allergens such as pollen, ensuring a constant flow of clean air.

• Outdoor units for monosplit applications.

• Voice control via Amazon Alexa or Google Assistant to manage main functions such as setpoint, operation mode, fan speed, etc.

• Silent operation: sound pressure level down to just 19 dBA.

• Outdoor unit heat exchanger fins with anti-corrosion treatment.

• Daikin Residential Controller: remote control of the indoor unit via the Onecta app, local network, or internet.

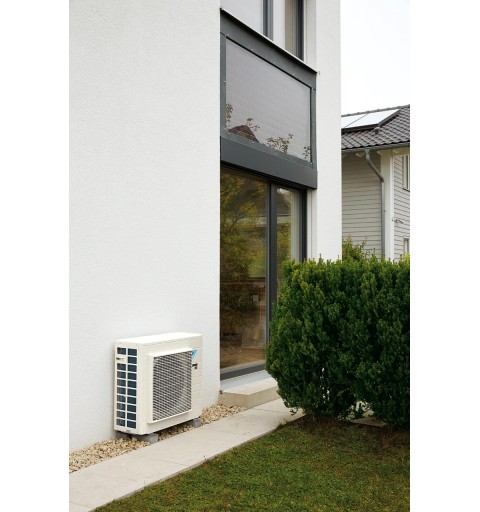

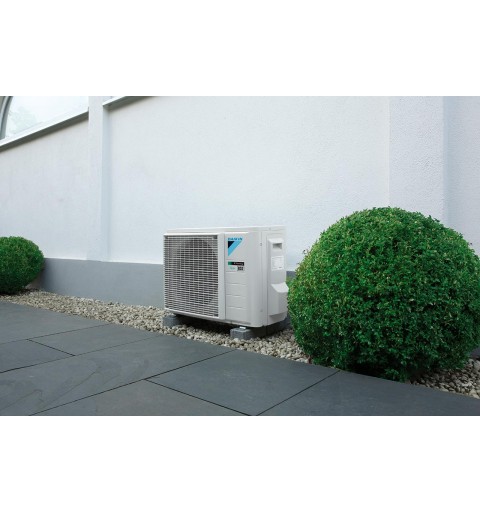

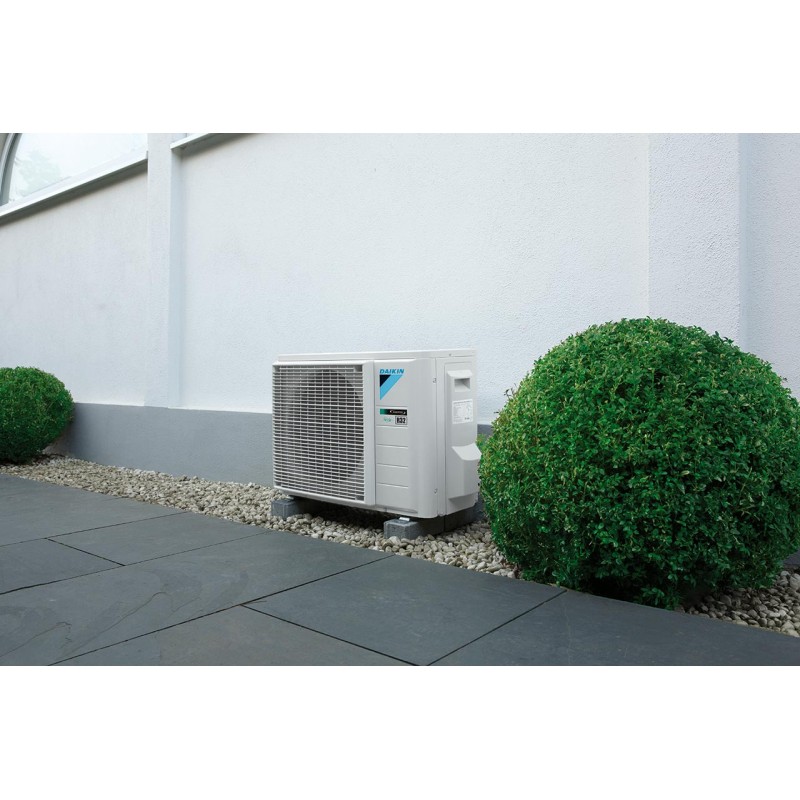

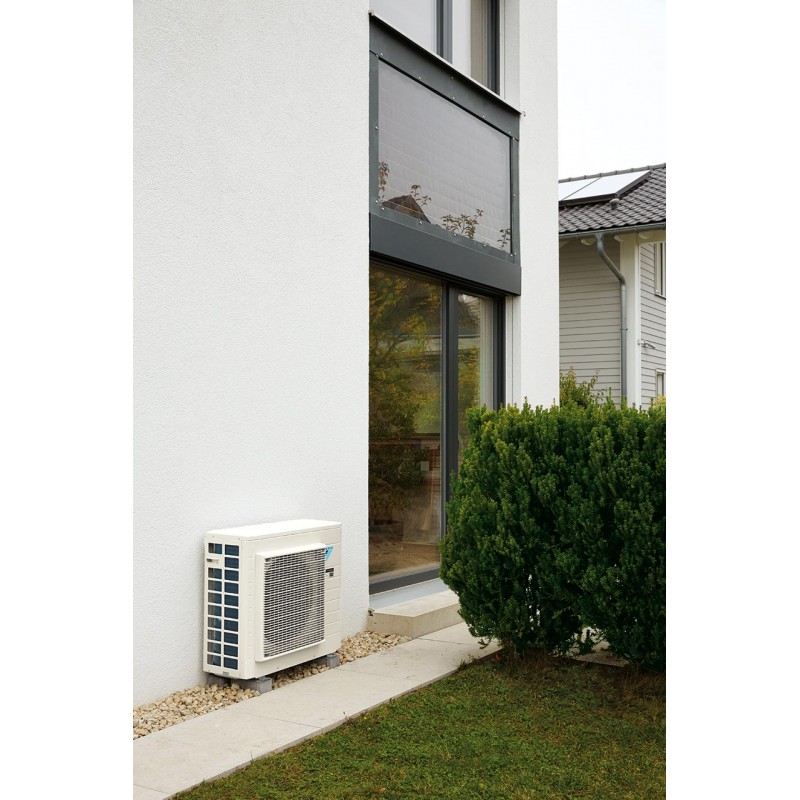

• Daikin outdoor units are solid and durable and can be easily installed on a roof, terrace, or against an exterior wall.

• Thanks to electrons that activate chemical reactions with particles in the air, the Flash Streamer decomposes allergens such as pollen and mold and removes unpleasant odors, ensuring cleaner, better air.

• 3D air flow uses automatic vertical and horizontal oscillation to circulate hot or cold air into every corner of large rooms.

• 2-area motion sensor: directs airflow away from the detected person; if no presence is detected, the unit automatically switches to energy-saving mode. (larger coverage area)

______

ADVANTAGES

Silent Mode for Outdoor Unit
The “Silent” button on the remote control reduces the operating sound level of the outdoor unit by 3 dB(A) to avoid disturbing the neighbors.

Silver Filter for Allergen Removal and Air Purification
Removes airborne dust particles such as pollen, ensuring clean air.

Extremely Quiet
So quiet you’ll forget it’s even there.

Auxiliary Heating
Quickly heats your home when the air conditioner is switched on. The set temperature is reached 20% faster than with a standard air conditioner (monosplit only).

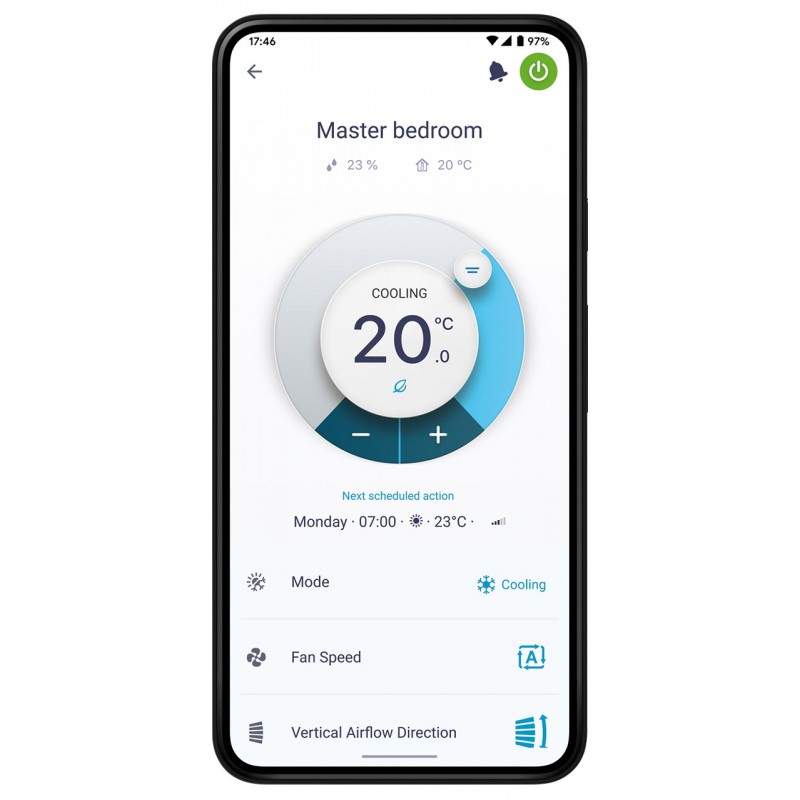

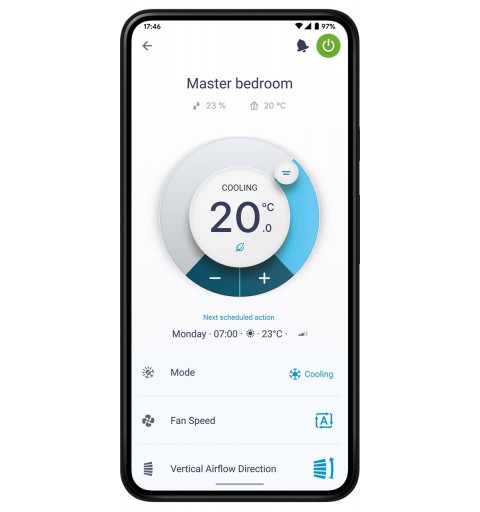

Onecta App
Control your indoor climate from anywhere using a smartphone or tablet.

Econo Mode
Reduces power consumption to allow use with other high-power appliances. Also helps save energy.

2-Area Motion Sensor
Directs airflow away from people in the room. If no presence is detected, the unit automatically switches to energy-saving mode.

Energy-Saving Standby Mode
Energy consumption is reduced by approximately 80% in standby mode.

Night Mode
Saves energy by preventing excessive temperature fluctuations during the night.

Fan Only Mode
The unit can also be used as a fan only, without cooling or heating.

Comfort Mode
Ensures optimal airflow without unpleasant drafts, avoiding direct cold or hot air blowing onto people.

Powerful Mode
Allows rapid cooling or heating. Once deactivated, the unit returns to its previous operating mode.

Automatic Operation Mode Switching
Automatically selects cooling or heating mode to maintain the set temperature.

Silent Mode for Indoor Unit
The “Silent” button on the remote control reduces the sound level of the indoor unit by 3 dB(A).

3D Airflow
Combines vertical and horizontal auto-swing to ensure a uniform temperature even in large spaces.

Vertical Auto Swing
Allows automatic vertical movement of air direction blades for even airflow and temperature distribution.

Horizontal Auto Swing
Allows automatic horizontal movement of the air direction blade to optimize airflow and temperature distribution.

Automatic Fan Speed Adjustment
Automatically selects the appropriate fan speed to reach or maintain the desired temperature.

Step Fan Speed (5 Steps)
Allows selection of various fan speed levels (5 steps available).

Dehumidification Program
Manages humidity reduction without causing excessive cooling.

Flash Streamer
By using electrons to trigger chemical reactions with airborne particles, the Flash Streamer breaks down allergens like pollen and mold and removes unpleasant odors, providing cleaner, healthier air.

Titanium Apatite Deodorizing Filter
Breaks down unpleasant odors such as those from tobacco or pets.

Air Filter
Captures airborne dust particles, improving air quality.

Weekly Timer
Can be set to start cooling or heating at any desired time, daily or weekly.

24-Hour Timer
Allows programming the unit to start operation at any time within a 24-hour period.

Infrared Remote Control
Enables remote operation of the air conditioner’s functions.

Auto-Restart Function
Automatically restarts the unit with the previous settings after a power outage.

Self-Diagnosis
Simplifies maintenance by displaying system faults or operational anomalies.
