Daikin ATXF71F ARXF71A Air Conditioner 24000Btu 7.1KW WiFi Siesta Pro Era V3.0 New 2025 A/A Inverter R32

Daikin ATXF71F ARXF71A Air Conditioner 24000Btu 7.1KW WiFi Siesta Pro Era V3.0 A/A Inverter R32 White

Daikin model Siesta Pro Era V3.0 2025 - ATXF-F ARXF-A
Made in Europe

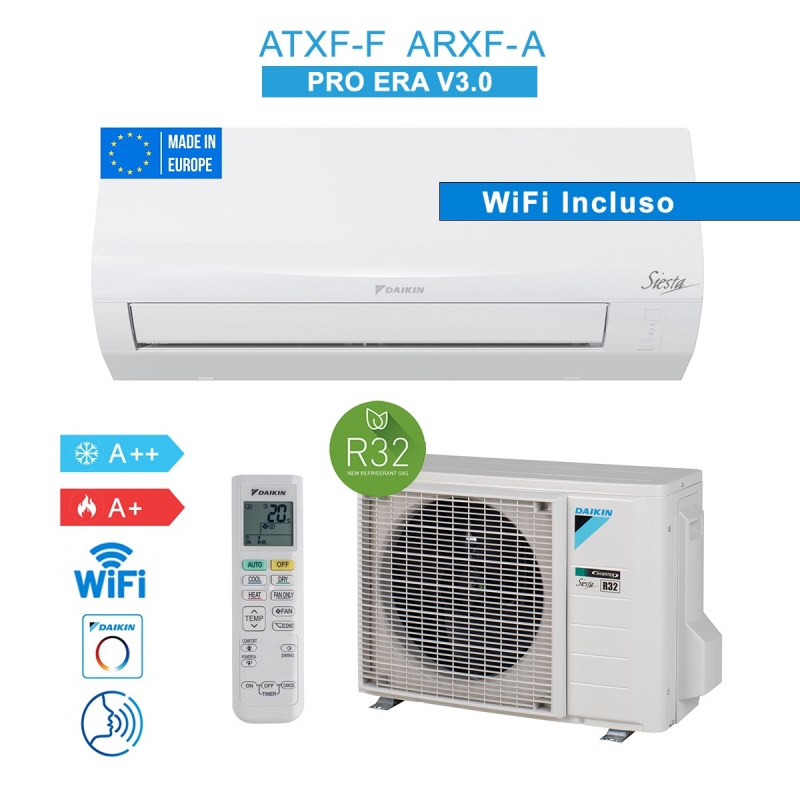

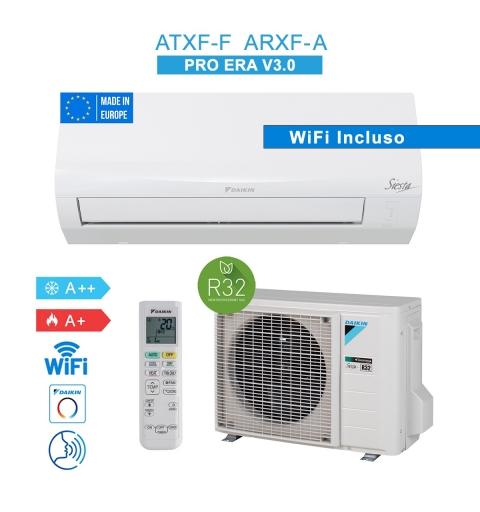

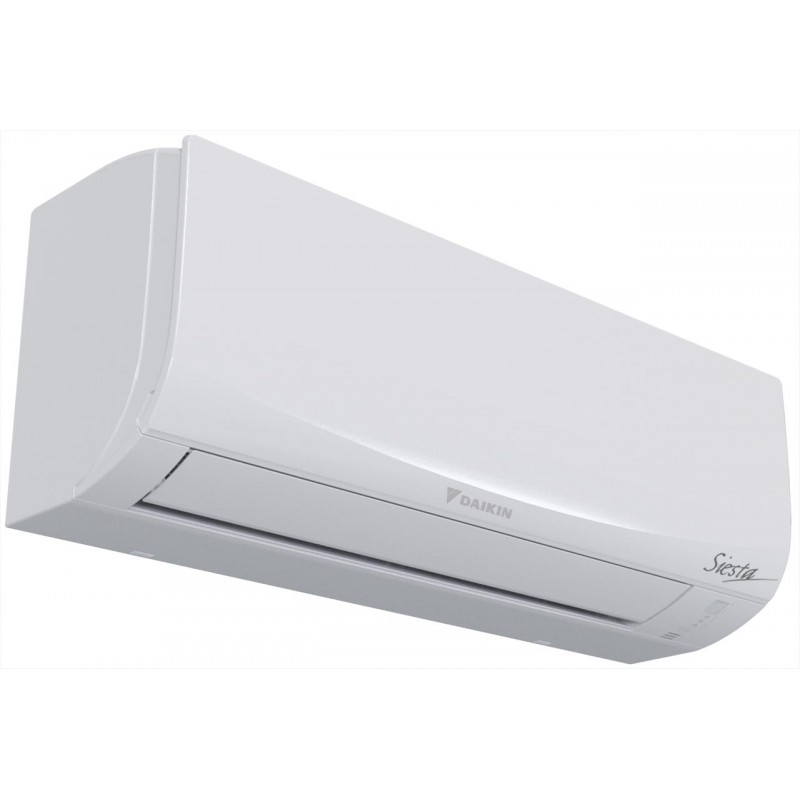

Air conditioner kit 24000 btu, consisting of the internal unit ATXF71F, the external motor ARXF71A, and the remote control

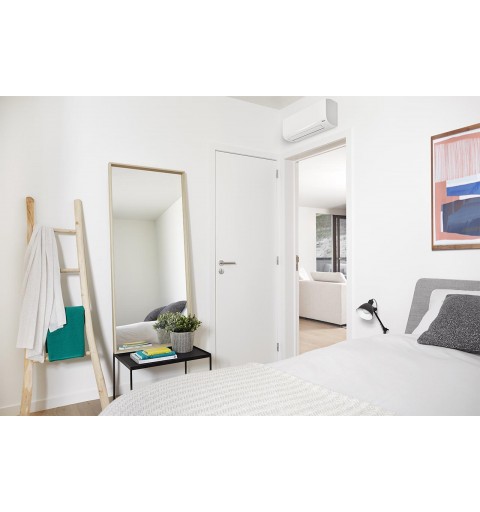

Wall unit with excellent value for money
Wi-Fi Card Included in the package

____

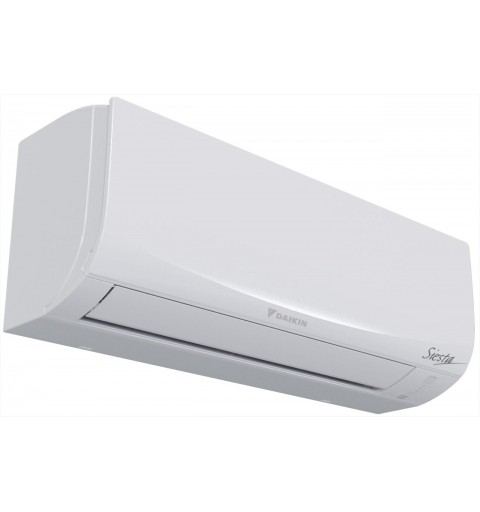

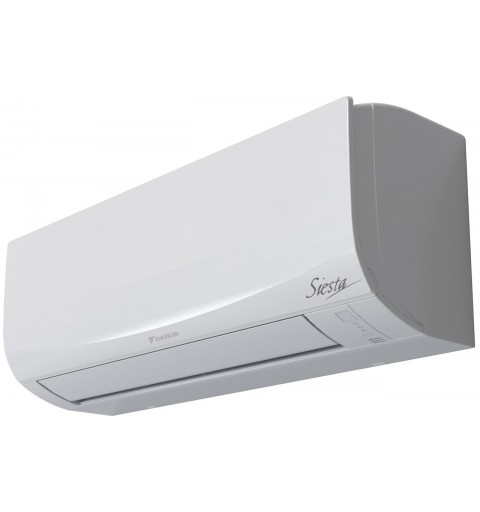

The flat and elegant front panel blends easily with any type of decor and is easier to clean. Wi-Fi allows control of the internal unit from anywhere via the app, local network, or the Internet. Seasonal efficiency values up to A++ in cooling. Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and directly reduces energy consumption due to high energy efficiency.

Product Features

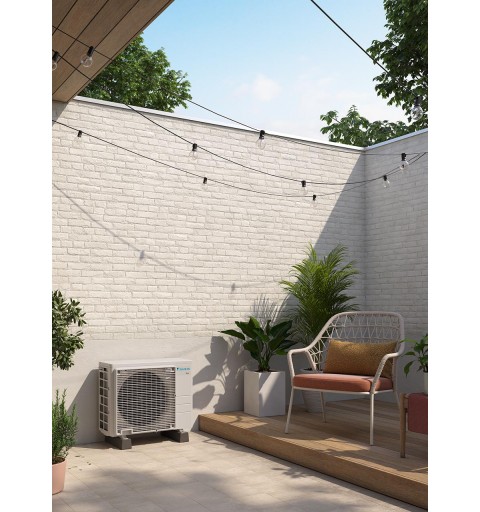

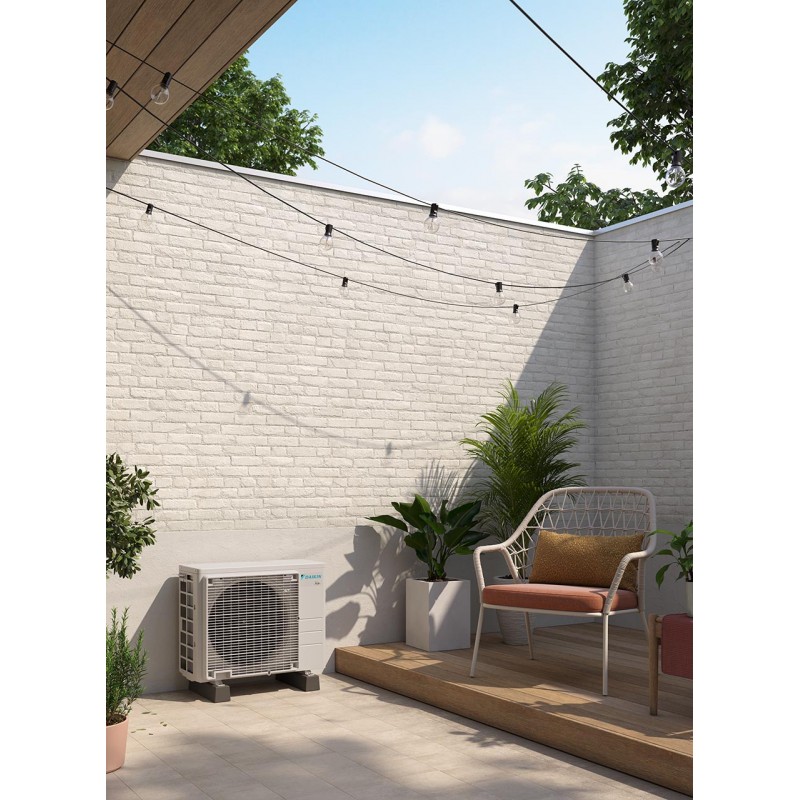

• Daikin outdoor units are well-built and robust and can be easily installed on a roof or terrace, or simply against an external wall
• Daikin outdoor units are equipped with a heat exchanger with anti-corrosion treatment (blue fin) ensuring great resistance to harsher weather conditions
• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and directly reduces energy consumption thanks to high energy efficiency

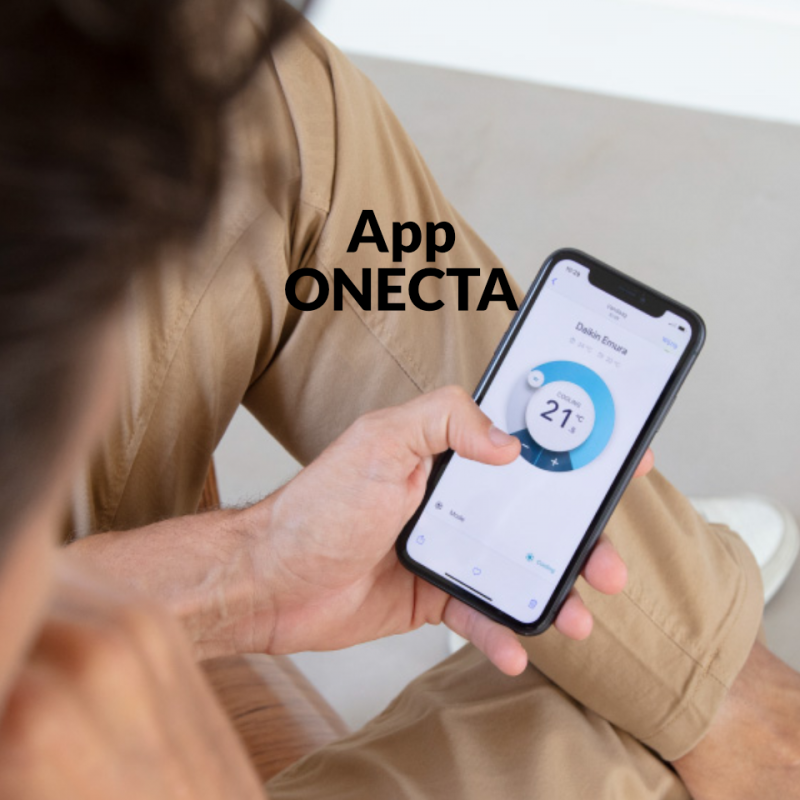

• Onecta: control your indoor units from anywhere via app, local network, or the Internet, and keep track of energy consumption
• Silent operation down to only 20 dBA

Technical Features

• Internal unit catalog code: ATXF71F
• External unit catalog code: ARXF71A
• Power: 24000 Btu
• Wi-Fi included

Technical Specifications

Cooling Capacity

• Min: 7.3 kW
• Nominal: 7.1 kW
• Max: 2.3 kW

Heating Capacity

• Min: 9 kW
• Nominal: 8.2 kW
• Max: 2.3 kW

Nominal Efficiency

• COP: 3.12
• EER: 2.53

Energy Class

• Cooling: A
• Heating: A

Annual Energy Consumption

• Cooling: 486 kWh

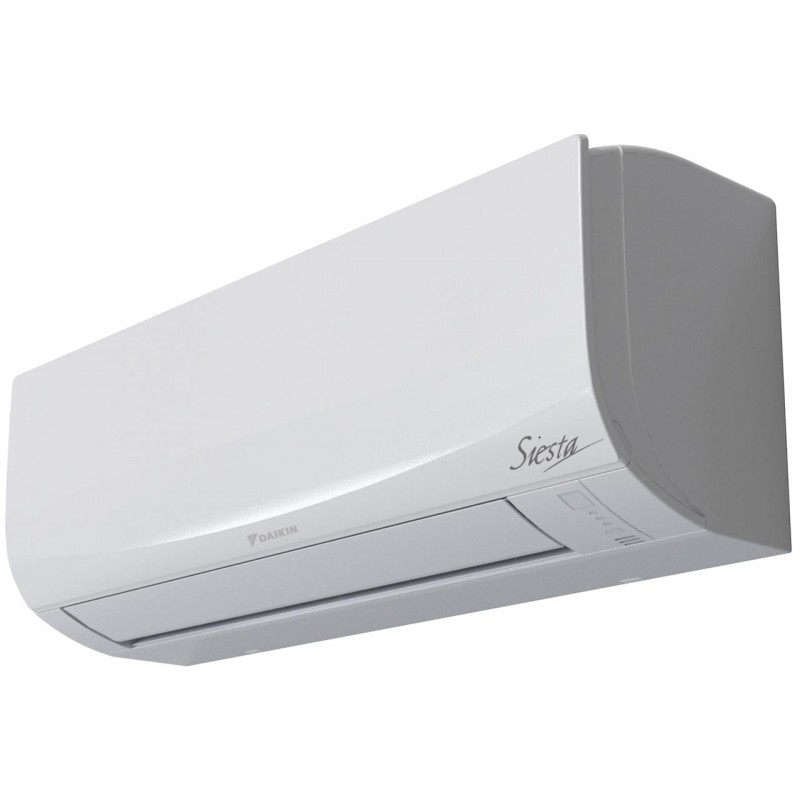

Technical Specifications Indoor Unit

Power Consumption

• Cooling (Nominal): 2.81 kW
• Heating (Nominal): 2.63 kW

Casing

• Color: White

Dimensions

• Height: 295 mm
• Width: 990 mm
• Depth: 263 mm

Weight

• Unit: 13.5 kg

Fan

• Airflow Cooling:
  • High: 17.3 m³/min
  • Medium: 14.8 m³/min
  • Low: 12.2 m³/min
  • Silent Mode: 10.7 m³/min

Sound Power

• Cooling: 62.0 dBA

Sound Pressure Level

• Cooling:
  • High: 46.0 dBA
  • Medium: 42.0 dBA
  • Low: 37.0 dBA
  • Silent Mode: 34.0 dBA
• Heating:
  • High: 45.0 dBA
  • Medium: 41.0 dBA
  • Low: 36.0 dBA
  • Silent Mode: 33.0 dBA

Piping Connections

• Liquid: 6.35 mm
• Gas: 12.7 mm

Filter

• Type: Removable / Washable

Control Systems

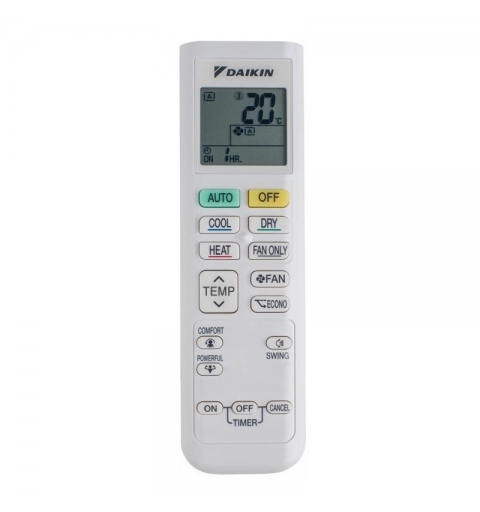

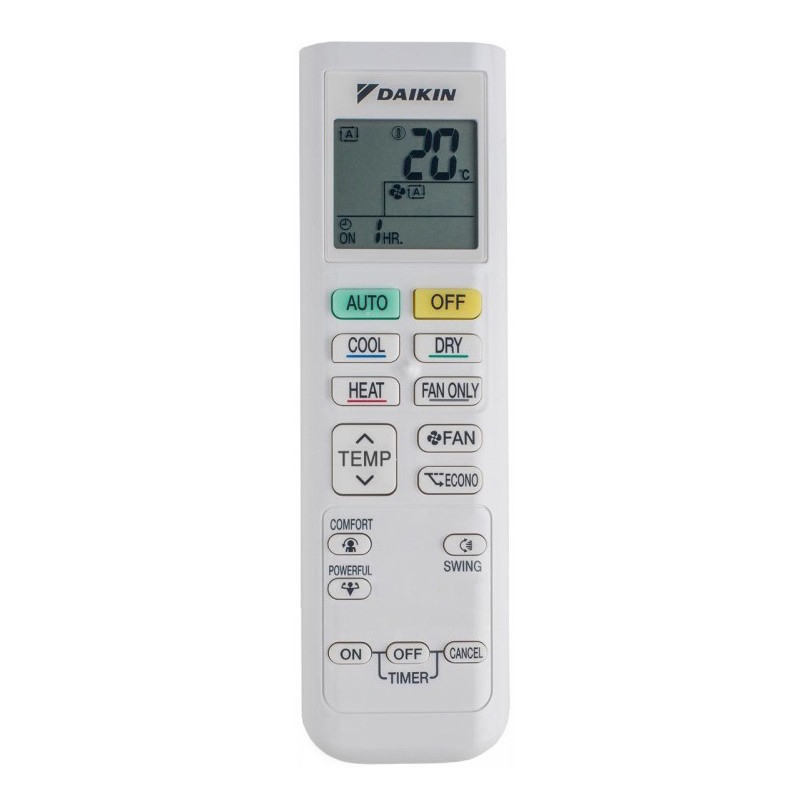

• Infrared Remote Control: ARC470A1

Standard Accessories

• Installation Manual: 1
• User Manual: 1
• General Safety Measures: 1
• Infrared Remote Control: 1
• AAA Dry Batteries: 2
• Remote Control Holder: 1
• Mounting Plate: 1
• Fixing Screws for Indoor Unit: 2

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-440 V

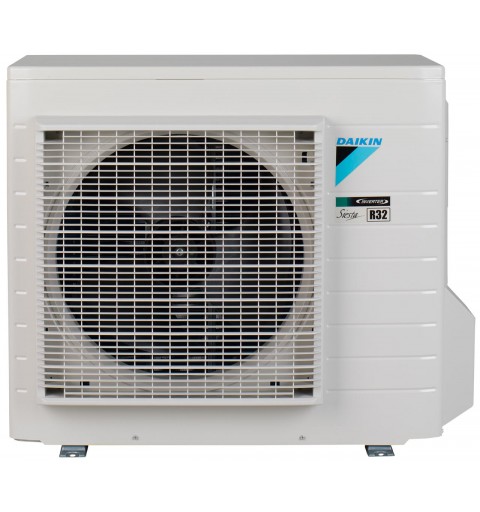

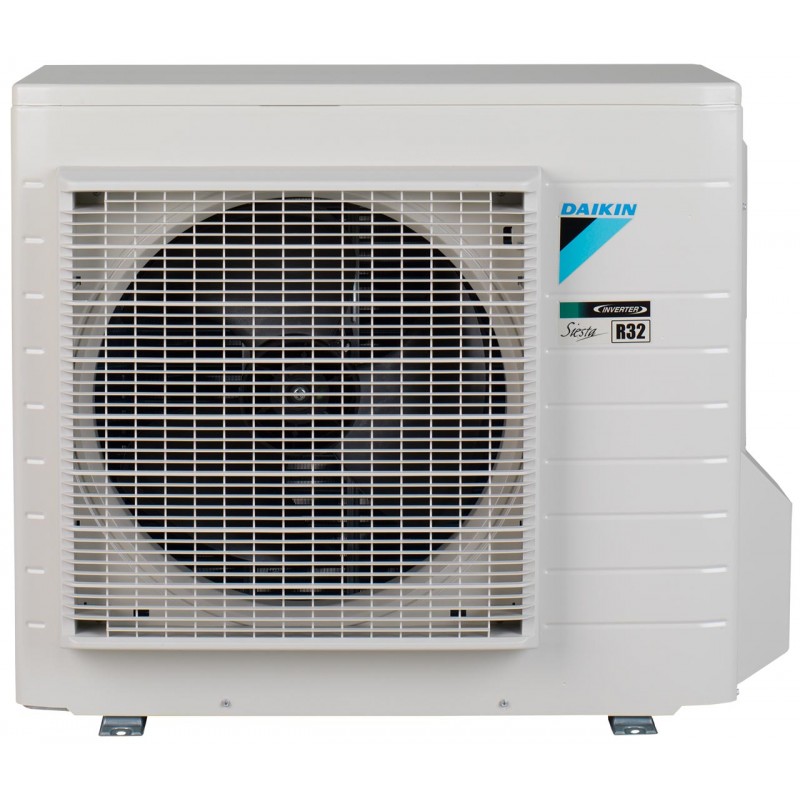

Technical Specifications Outdoor Unit

Dimensions

• Height: 734 mm
• Width: 870 mm
• Depth: 373 mm

Weight

• Unit: 50 kg

Operating Range

• Cooling:
  • Min. Outdoor Temperature: -10°C
  • Max. Outdoor Temperature: 46°C
• Heating:
  • Min. Outdoor Temperature: -15°C
  • Max. Outdoor Temperature: 24°C

Sound Pressure Level

• Cooling:
  • High: 52 dBA
• Heating:
  • High: 65 dBA

Refrigerant

• Type: R-32
• Charge: 1.15 kg
• GWP: 675.0

Piping Connections

• Maximum Length (UE - UI): 30 m
• Additional Refrigerant Charge: 0.02 kg/m (for piping lengths over 10 m)
• Max Elevation Difference (Indoor - Outdoor): 20.0 m

Standard Accessories

• Installation Manual: 1
• Drain Plug: 1
• Refrigerant Charge Label: 1
• Multilingual Fluorinated Greenhouse Gas Labels: 1
• General Safety Measures: 1

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V (20A Maximum Fuse Rating MFA)
