Daikin ATXC50D ARXC50D Air Conditioner 18000Btu 5KW Siesta New Evolution New 2025 A++/A+ Inverter Wifi Ready

Daikin ATXC50D ARXC50D Air Conditioner 18000BTU 5Kw Siesta New Evolution A++/A+ Inverter Wifi Ready R32 White - New for 2025

Daikin New Model Siesta New Evolution 2025 - ATXC-D ARXC-D

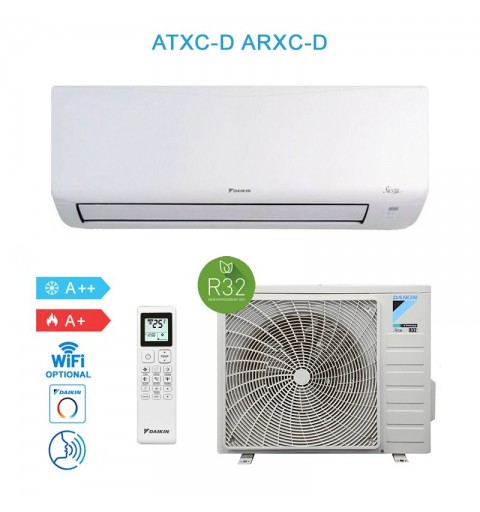

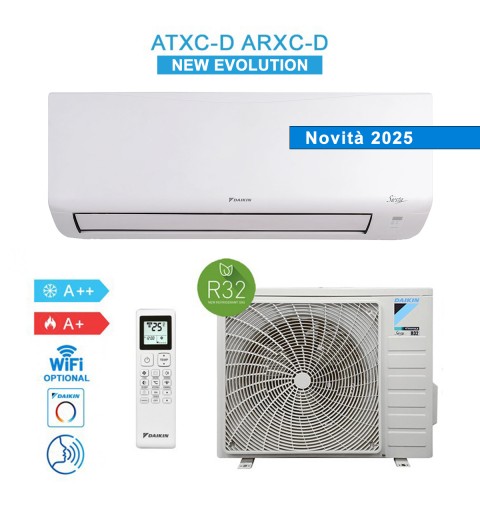

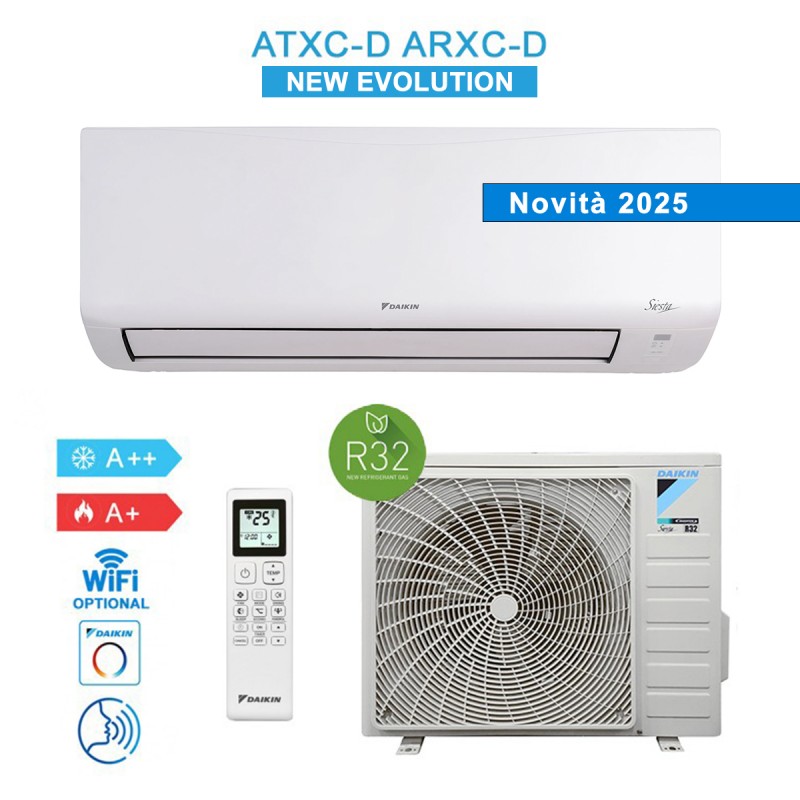

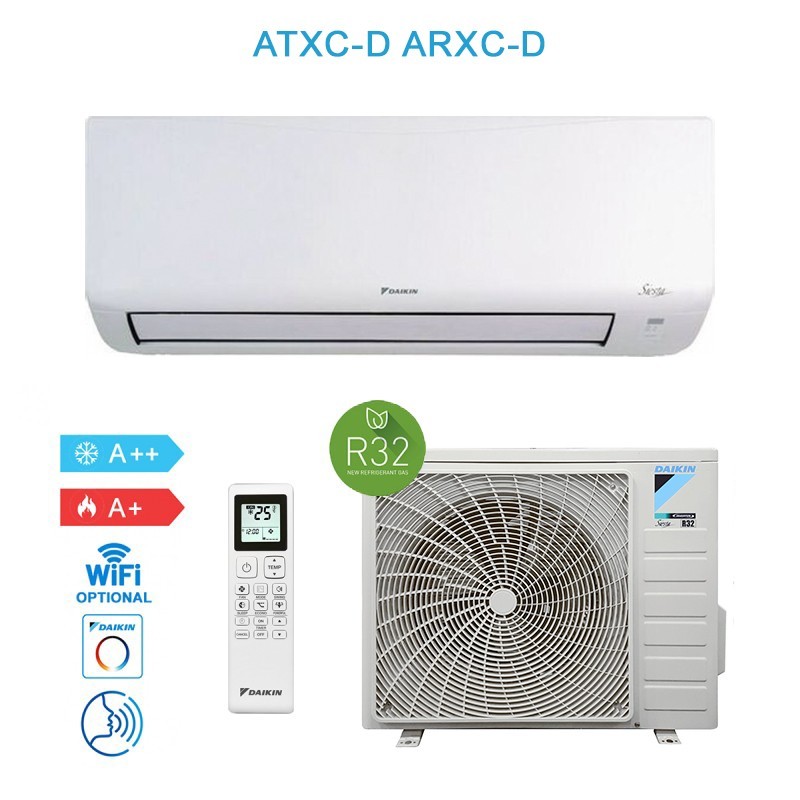

Air Conditioner Kit 18000 BTU, consisting of the indoor unit ATXC50D, the outdoor unit ARXC50D, and the remote control.
Wall-mounted unit with an excellent price-performance ratio.
Optional Wi-Fi module: BRP069B45 Daikin Wi-Fi accessory.

Product Description

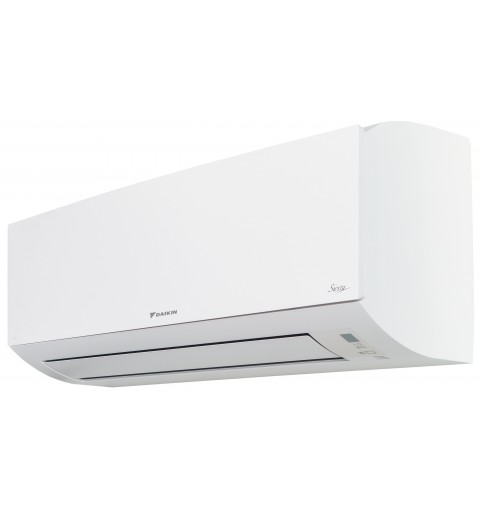

The flat and elegant front panel blends seamlessly with any type of interior decor and is easier to clean.
Optional Wi-Fi: Enables control of the indoor unit from anywhere via the app, local network, or Internet.
Seasonal efficiency values up to A++ in cooling.
Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and directly lowers energy consumption thanks to high energy efficiency.

Product Features

• Daikin outdoor units are durable and robust and can be easily installed on a roof, terrace, or against an exterior wall.
• Equipped with a heat exchanger with anti-corrosion treatment (blue fin) for greater resistance to extreme weather conditions.
• Outdoor units designed for monosplit applications.
• Onecta (optional): Allows remote control of indoor units via the app, local network, or Internet, and monitors energy consumption.
• Silent operation: Down to only 21 dBA.

Technical Specifications

General Specifications

• Indoor unit catalog code: ATXC50D
• Outdoor unit catalog code: ARXC50D
• Power: 18000 BTU
• Wi-Fi Optional (Code: BRP069B45)

Cooling & Heating Capacity

• COP: 3.71
• EER: 3.25
• Energy Class:
  • Cooling: A++
  • Heating: A+

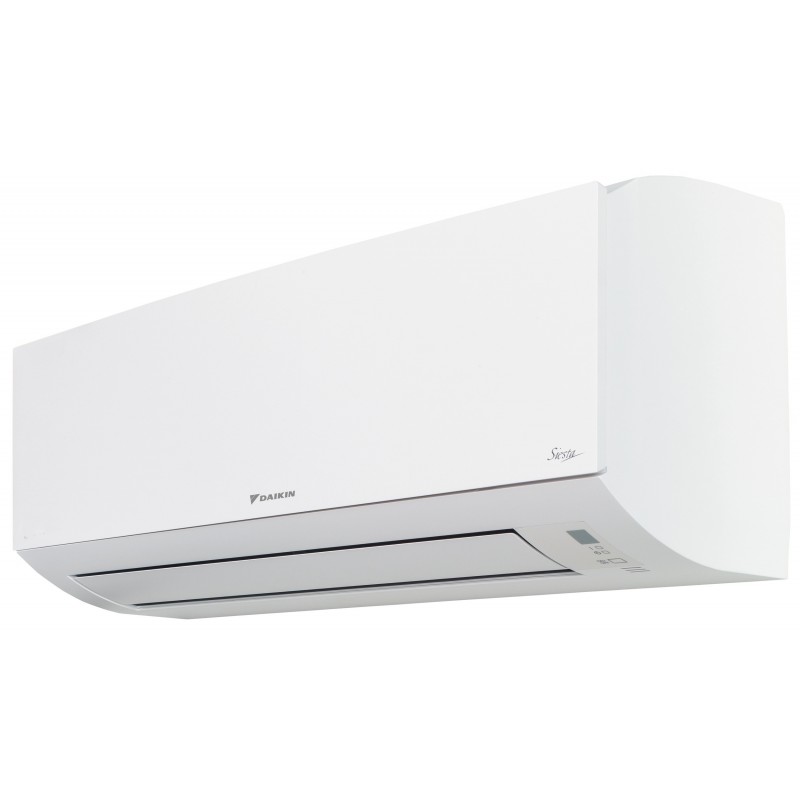

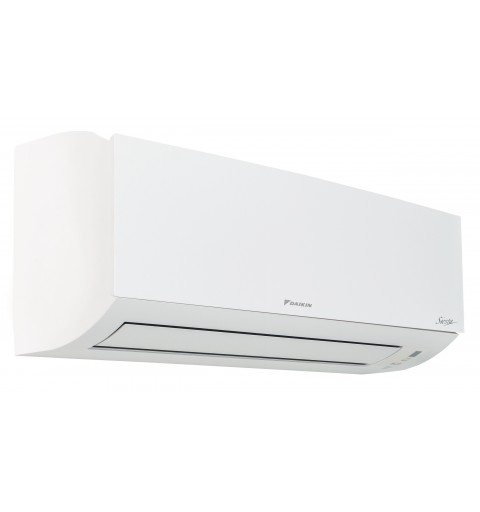

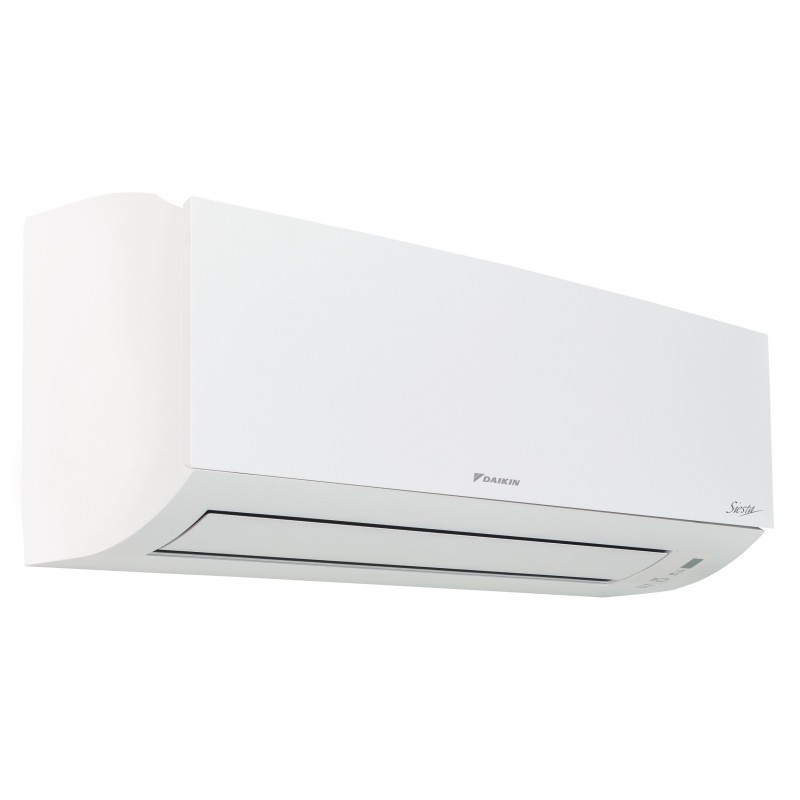

Indoor Unit Specifications

• Power Consumption

  • Cooling (Nominal): 1.57 kW
  • Heating (Nominal): 1.52 kW

• Dimensions

  • Height: 288 mm
  • Width: 770 mm
  • Depth: 234 mm
  • Weight: 9.50 kg

• Airflow Rate (Cooling)

  • High: 12.5 m³/min
  • Medium: 9.9 m³/min
  • Low: 8.1 m³/min
  • Silent Mode: 7.4 m³/min

• Sound Power Level (Cooling): 60.0 dBA

• Sound Pressure Level (Cooling)

  • High: 47.0 dBA
  • Medium: 39.0 dBA
  • Low: 33.0 dBA
  • Silent Mode: 30.0 dBA

• Casing Material: High-impact polyester

• Color: White

• Piping Connections

  • Liquid Pipe Diameter: 6.35 mm
  • Gas Pipe Diameter: 12.7 mm

• Filter Type: Removable / Washable

• Control Systems

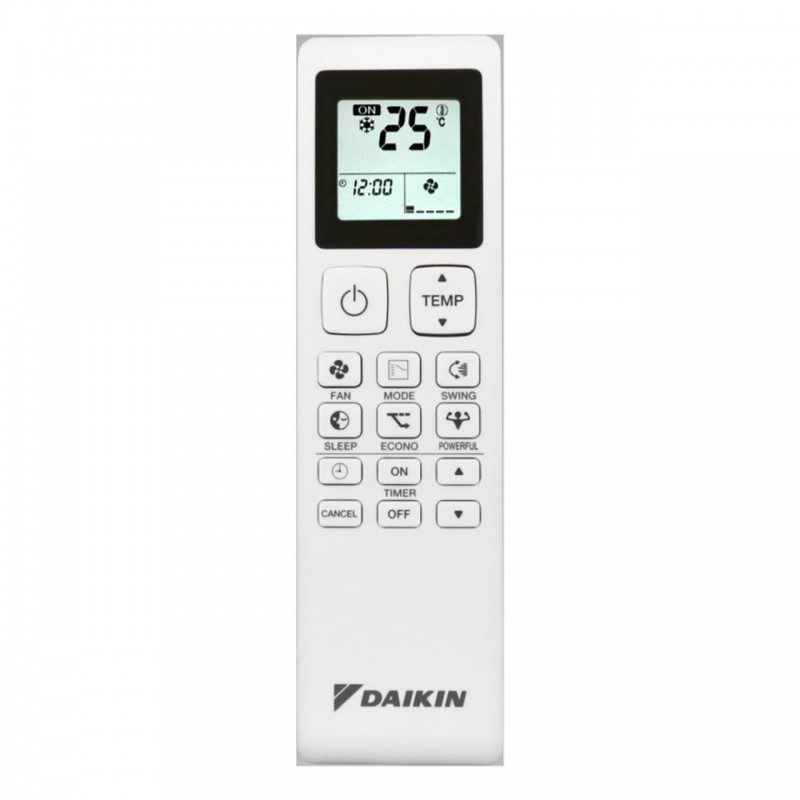

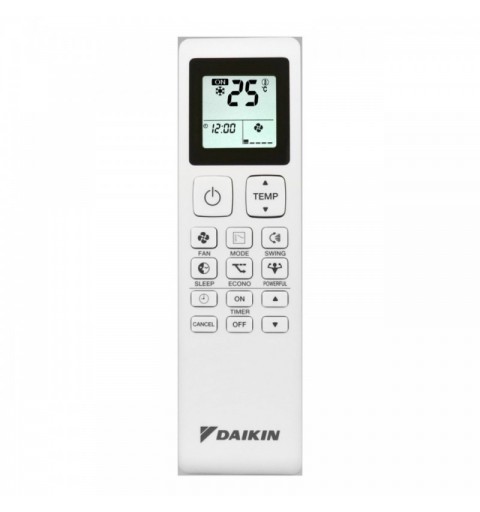

  • Infrared Remote Control: ARC486A2
  • Wired Remote Control: Not included

• Standard Accessories

  • Installation manual: 1
  • User manual: 1
  • General safety measures: 1
  • Infrared remote control: 1
  • AAA dry batteries: 2
  • Remote control holder: 1
  • Mounting plate: 1
  • Indoor unit fixing screws: 2

• Power Supply

  • Phase: 1~
  • Frequency: 50 Hz
  • Voltage: 220-240V

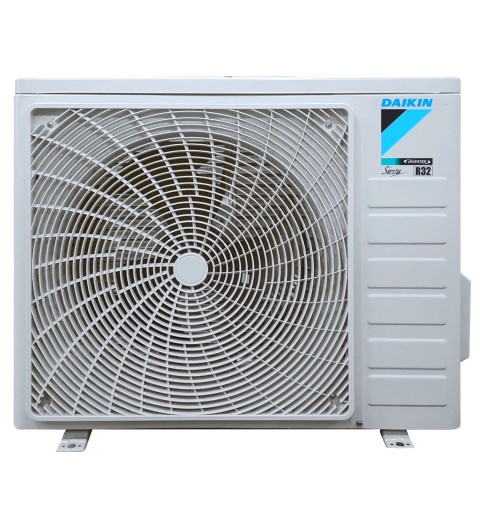

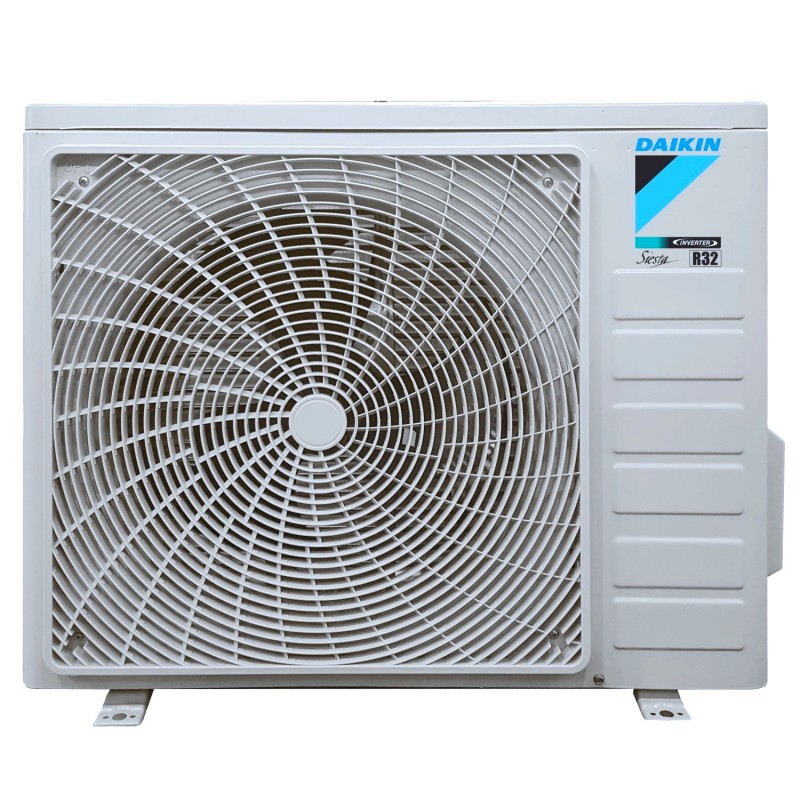

Outdoor Unit Specifications

• Dimensions

  • Height: 615 mm
  • Width: 845 mm
  • Depth: 300 mm
  • Weight: 39.0 kg

• Pipe Length (Outdoor to Indoor)

  • Maximum: 20 m

• Operating Range

  • Cooling (Outdoor Temperature):
    • Min: 10°C BS
    • Max: 46°C BS
  • Heating (Outdoor Temperature):
    • Min: -15°C BU
    • Max: 18°C BU

• Sound Pressure Level (Cooling, High Mode): 51.0 dBA

• Refrigerant

  • Type: R-32
  • Charge: 1.000 kg
  • GWP (Global Warming Potential): 675.0

• Piping Connections

  • Additional refrigerant charge: 0.017 kg/m (for pipe lengths exceeding 7.5m)
  • Height Difference (Indoor - Outdoor, Max): 15.0 m

• Standard Accessories

  • Installation manual: 1
  • Drain plug: 1
  • Refrigerant charge label: 1
  • Multilingual labels on fluorinated greenhouse gases: 1
  • General safety measures: 1

• Power Supply

  • Phase: 1~
  • Frequency: 50 Hz
  • Voltage: 220-240V (16A Maximum Fuse Rating MFA)
