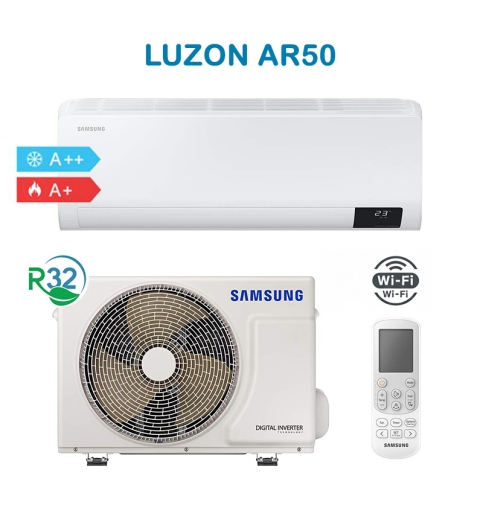

Samsung F-AR12LZN Air Conditioner Monosplit Luzon AR50 12000Btu 3.5Kw Inverter A++/A+ Wifi R32

Samsung F-AR12LZN Air Conditioner Monosplit Luzon AR50 12000Btu 3.5Kw Inverter A++/A+ Wifi R32

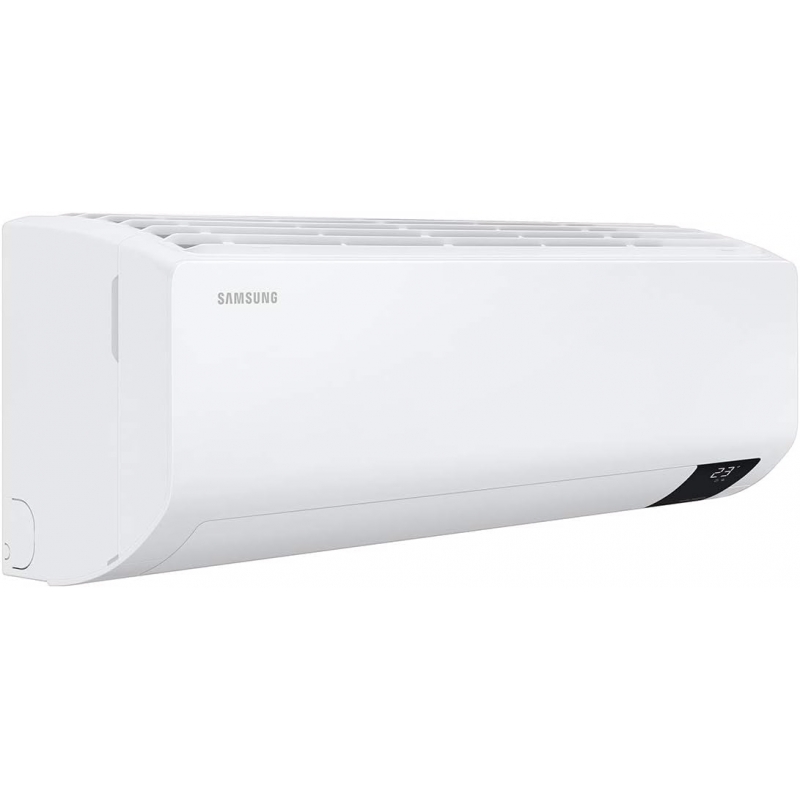

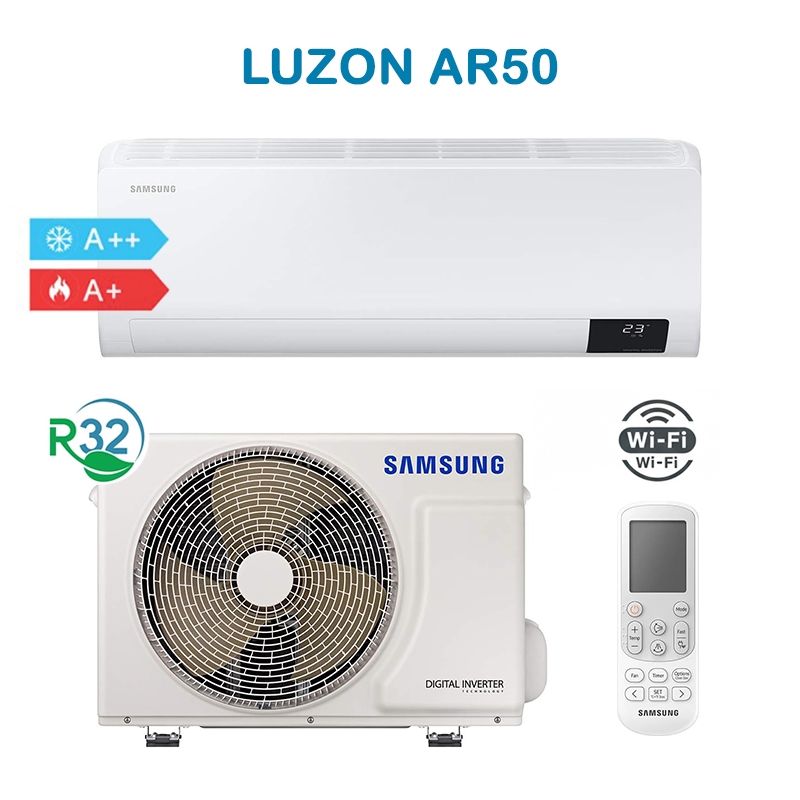

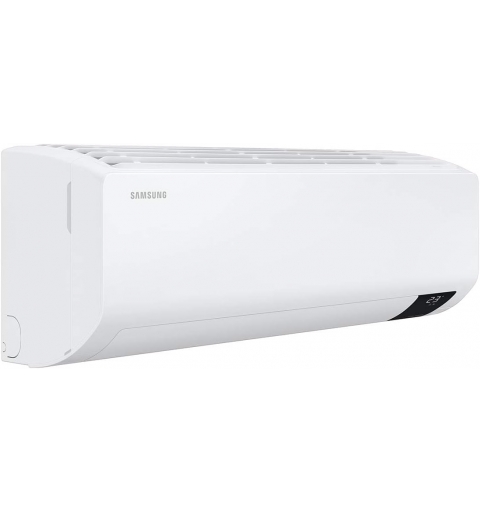

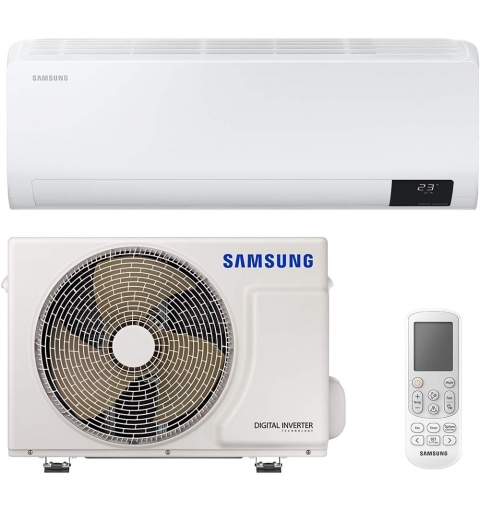

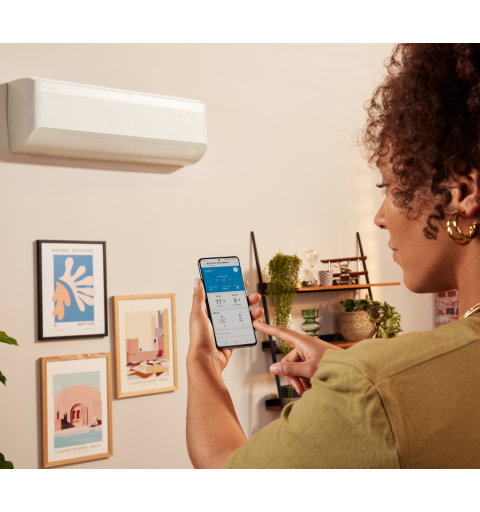

The Samsung Luzon 2024 (Indoor Unit AR12TXHZAWKNEU + Outdoor Unit AR12TXHZAWKXEU) is a wall-mounted monosplit air conditioner with a heat pump and digital inverter compressor. It ensures comfort all year round thanks to high performance, quiet operation, and intelligent energy management via integrated Wi-Fi.

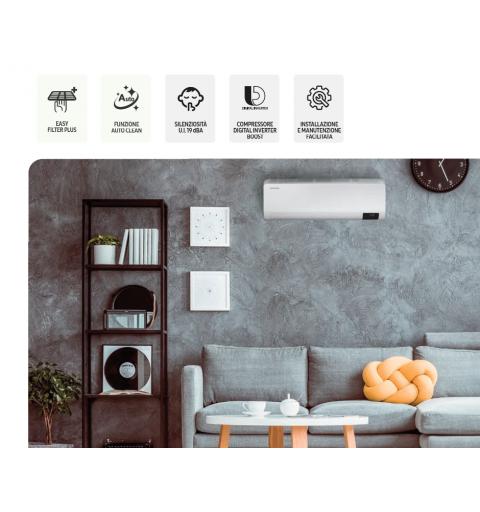

Easy to Clean External Filter

Easy Filter Plus is an external filter located on the top side that can be easily removed for cleaning. Its dense mesh keeps the heat exchanger clean, while the antibacterial coating helps protect you from airborne contaminants.

Against Bacteria and Bad Odors

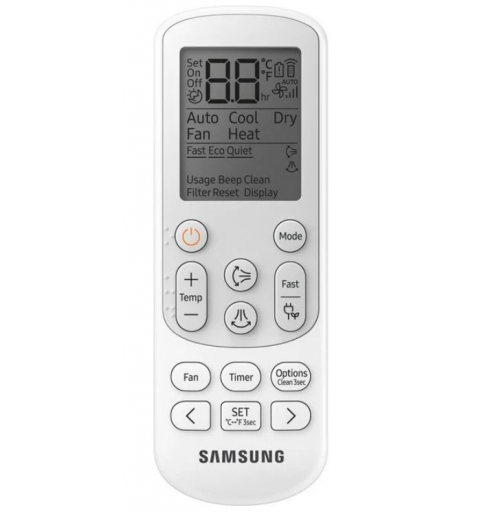

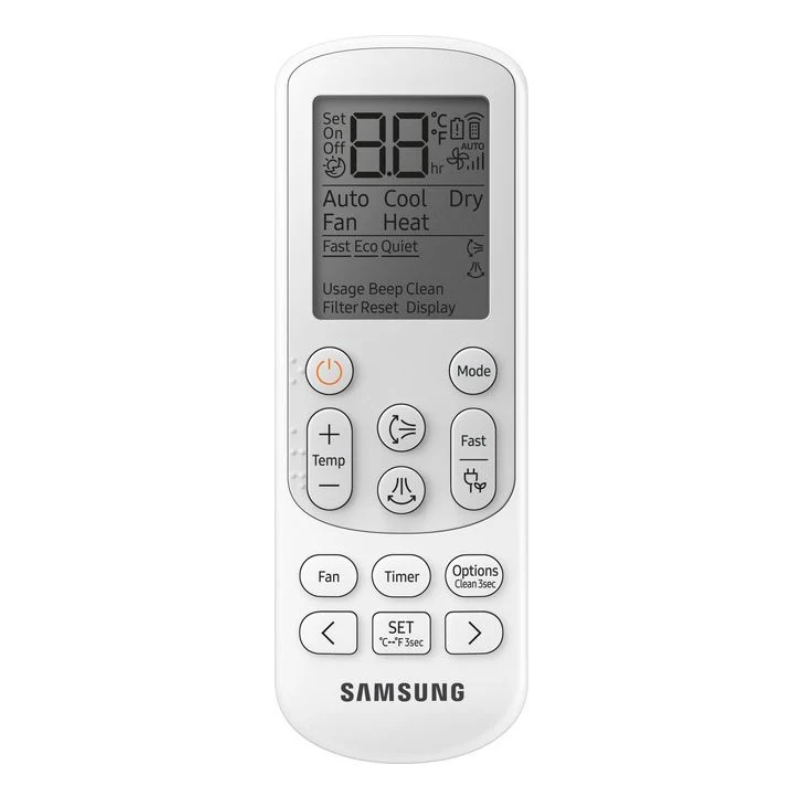

The Auto Clean function, which can be activated via remote control, is useful to prevent humidity from building up inside the unit, thus preventing the formation of bacteria and bad odors.

For a Peaceful Rest

The indoor units reach noise levels as low as 22 dB(A)

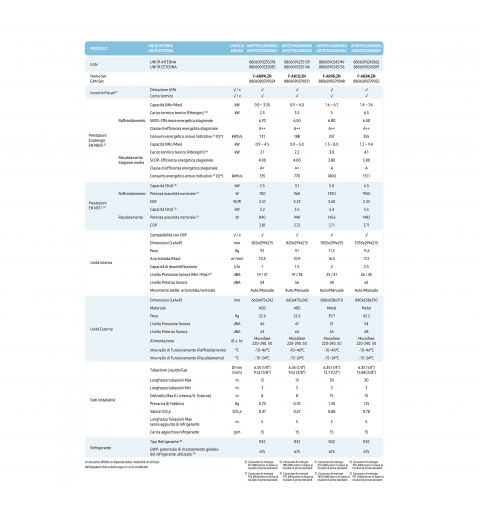

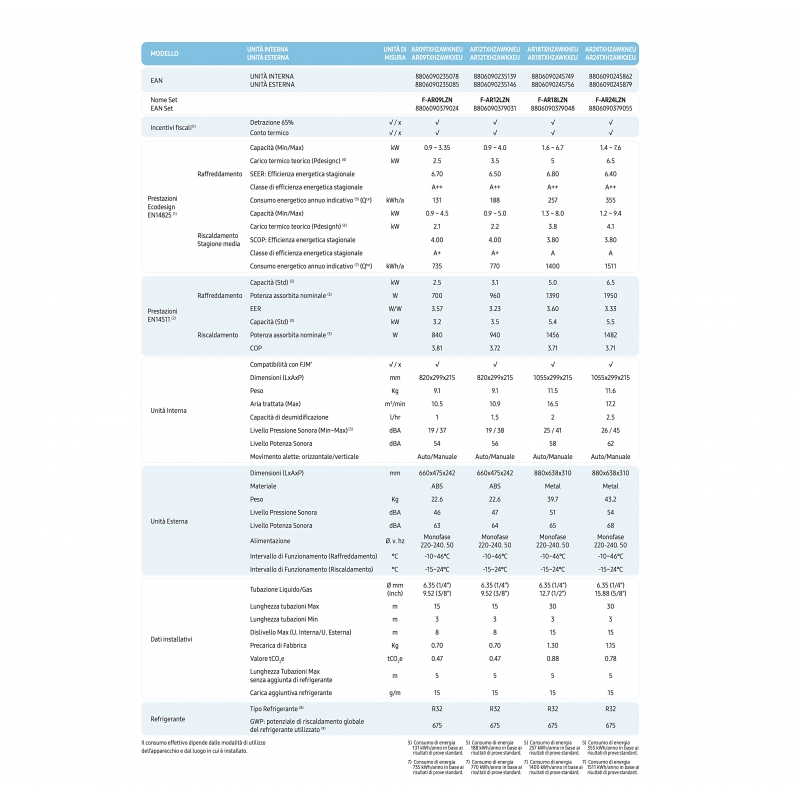

Technical Specifications

Model: F-AR12LZN

EAN: 8806090379031

Indoor Unit Catalog Code: AR12TXHZAWKNEU

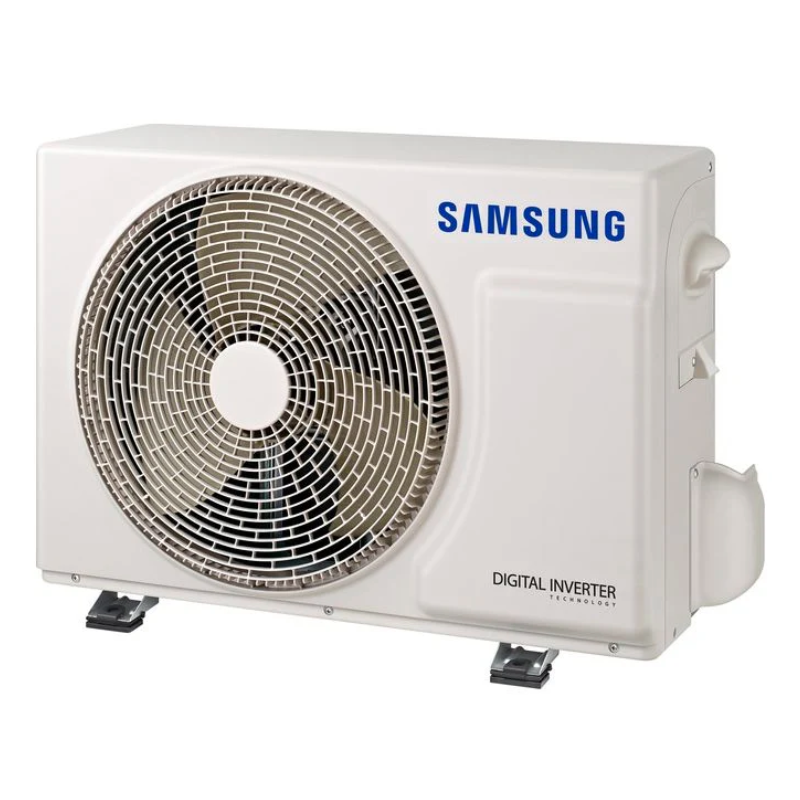

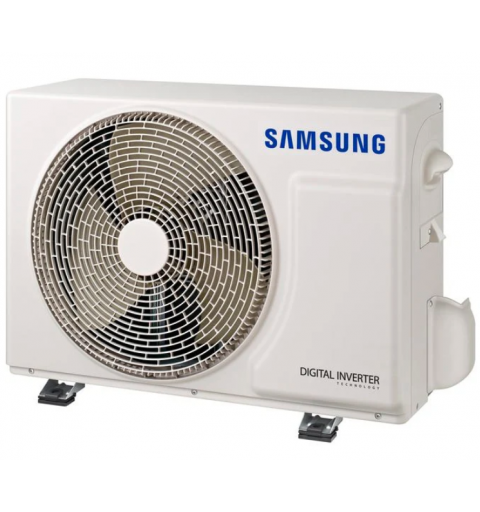

Outdoor Unit Catalog Code: AR12TXHZAWKXEU

Power: 12000 Btu

Blade Movement: Horizontal/Vertical: Auto/Manual

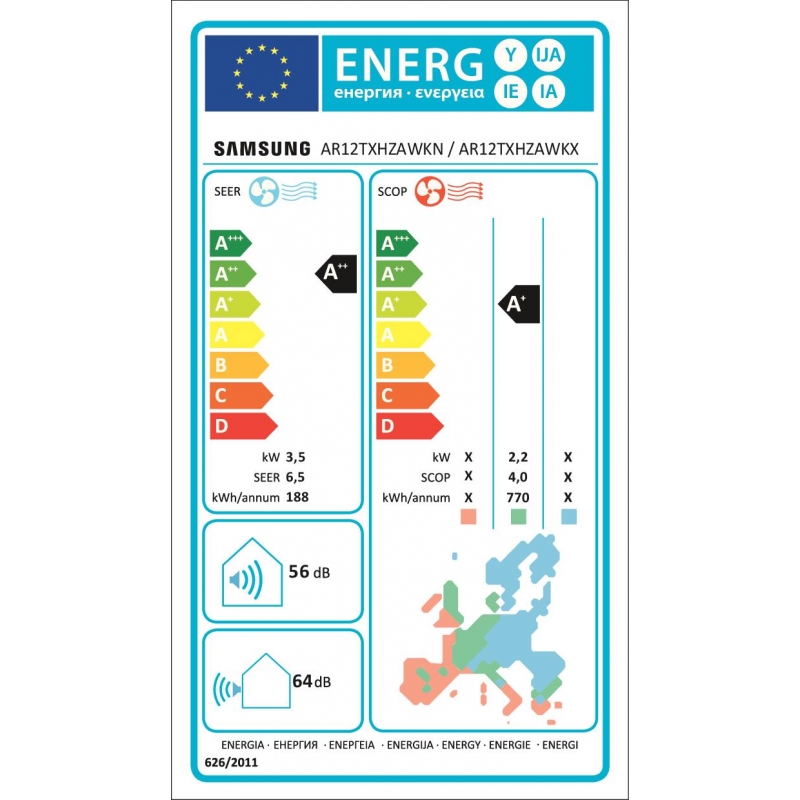

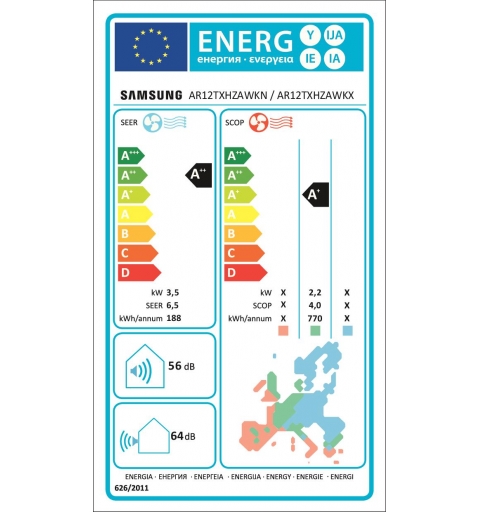

Energy Efficiency

SEER: 6.50

SCOP: 4.00

Energy Efficiency Class in Cooling: A++

Energy Efficiency Class in Heating: A+

Annual Energy Consumption in Cooling: 188 kWh/a

Annual Energy Consumption in Heating: 770 kWh/a

Performance

Cooling Capacity: 3.1 kW

Heating Capacity: 3.5 kW

Cooling Power Consumption: 960 W

Heating Power Consumption: 940 W

Treated Air: 10.9 m3/min

Sound Power Level UI: 56 dB(A)

Sound Pressure Level UI: 19 - 38 dB(A)

Sound Power Level UE: 64 dB(A)

Sound Pressure Level UE: 47 dB(A)

Electrical Data

Power Supply (V,Hz,Ø): 220~240/50/1

Refrigerant Gas: R-32

Operating Limits:

- Cooling: -10° ~ 46° C

- Heating: -15° ~ 24° C

Installation Data

Liquid Pipe Diameter: 6.35 mm (1/4")

Gas Pipe Diameter: 9.52 mm (3/8")

Maximum Pipe Length: 15 m

Minimum Pipe Length: 3 m

Maximum Elevation (Indoor Unit/Outdoor Unit): 8 m

Dimensions and Weight

Indoor Unit Dimensions (LxHxD): 820x299x215 mm

Weight: 9 Kg

Outdoor Unit Dimensions (LxHxD): 660x475x242 mm

Weight: 22.6 Kg
