Daikin ATXC60D ARXC60D Air Conditioner 21000Btu 6KW Siesta New Evolution 2025 A++/A+ Inverter Wifi Ready R32
€949.90 Tax included
Article Code: 614459
2-Year Italian Warranty:

Daikin ATXC60D ARXC60D Air Conditioner 21000Btu 6KW Siesta New Evolution 2025 A++/A+ Inverter Wifi Ready R32
Daikin ATXC60D ARXC60D Air Conditioner 21000Btu 6KW Siesta New Evolution 2025 A++/A+ Inverter Wifi Ready R32

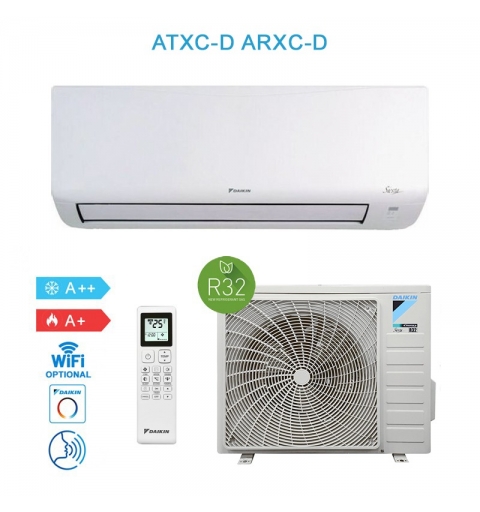

Daikin model Siesta New Evolution 2025 - ATXC-D ARXC-D

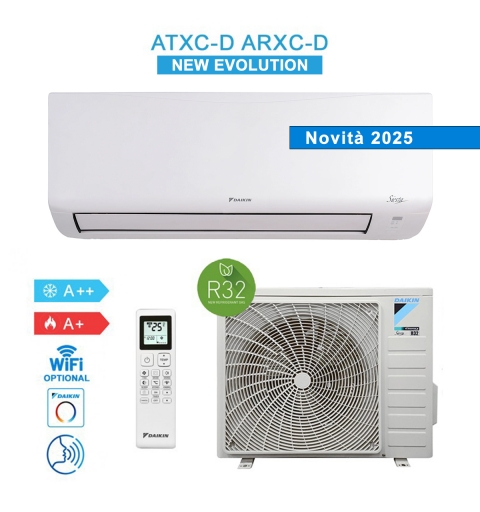

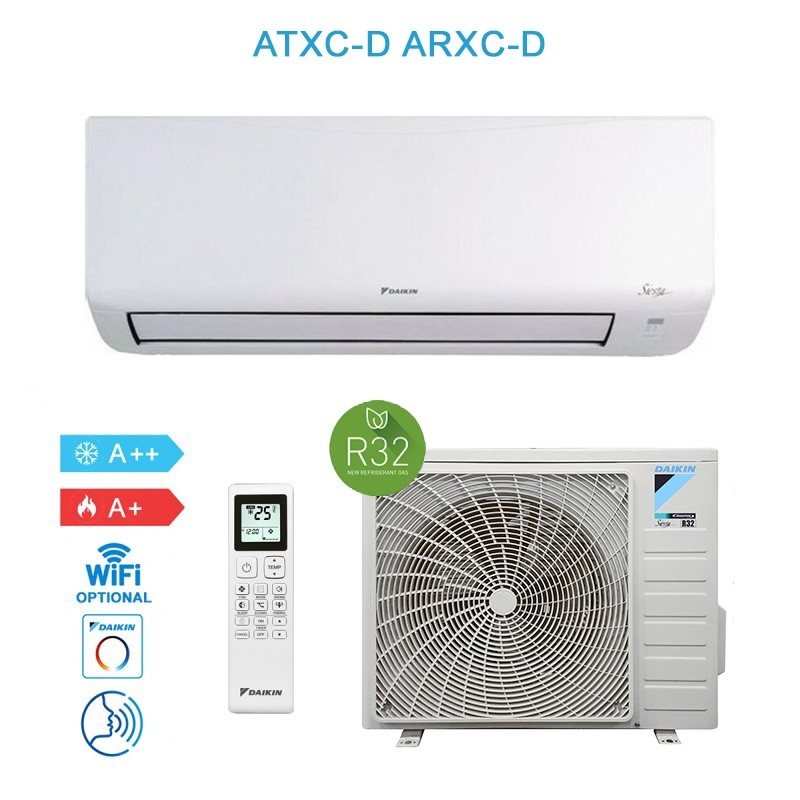

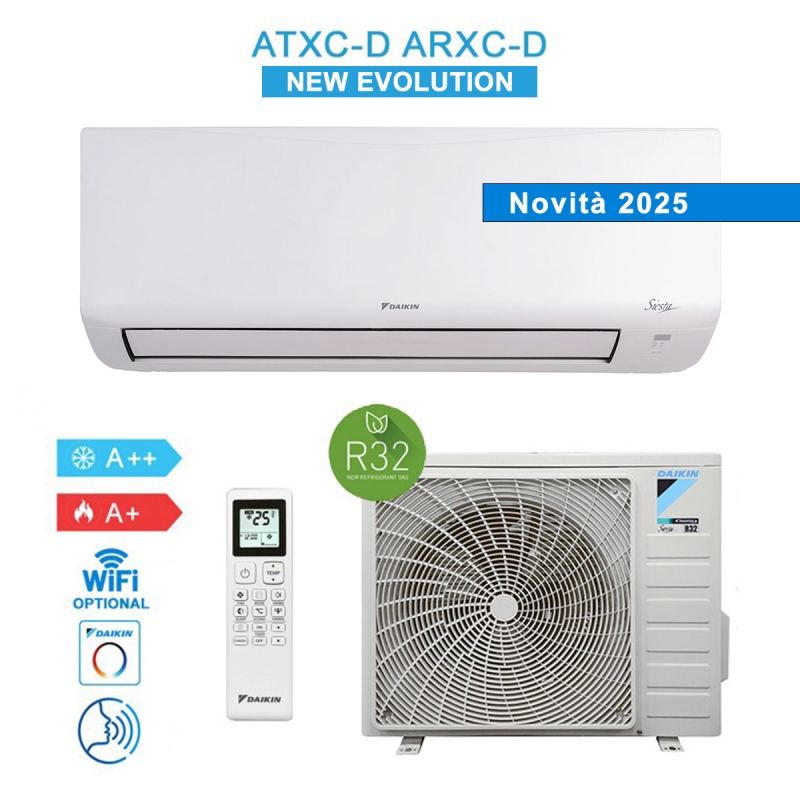

Air Conditioner Kit 21000 btu, consisting of the indoor unit ATXC60D, the outdoor motor ARXC60D and the remote control
Wall unit with excellent value for money
Optional Wi-Fi card: BRP069B45 Daikin Wi-Fi module accessory
____
The flat and elegant front panel easily harmonizes with any type of decor and is easier to clean. The optional Wifi: allows control of the indoor unit from anywhere via app, local network, or the Internet. Seasonal efficiency values up to class A++ in cooling. Choosing a product with R-32 reduces environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption due to high energy efficiency.
Product Features

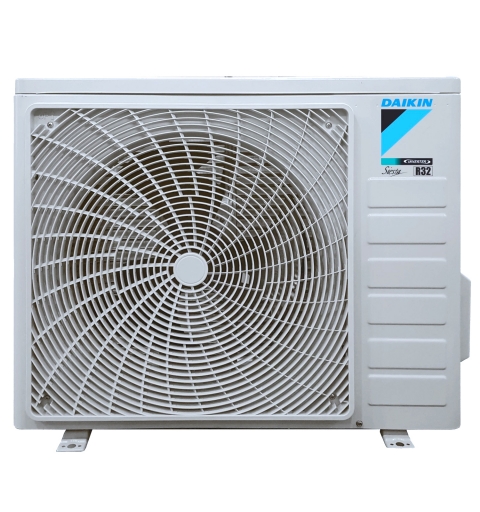

- The outdoor units Daikin are well-made and robust and can be easily installed on a roof or terrace, or simply against an external wall
- The outdoor units Daikin are equipped with a heat exchanger with anti-corrosion treatment (blue fin) that ensures great resistance to the harshest weather conditions
- Outdoor units for monosplit applications
- Choosing a product with R-32 reduces environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption due to high energy efficiency
- Onecta (optional): control your indoor units from anywhere via app, local network, or the Internet and monitor energy consumption
- Quiet operation down to just 21 dBA
Technical Features

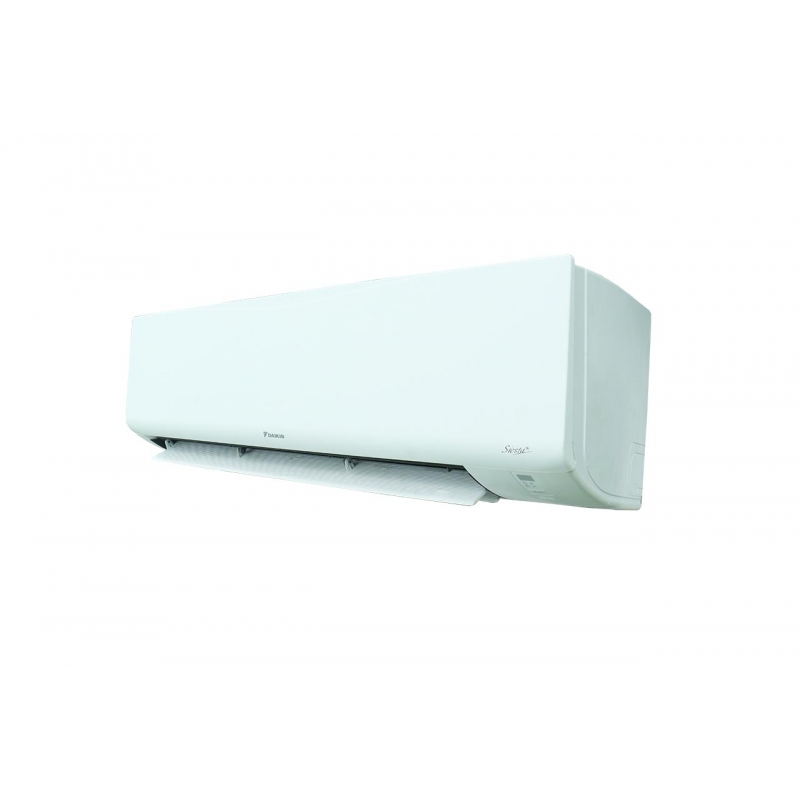

- Indoor unit catalog code: ATXC60D
- Outdoor unit catalog code: ARXC60D
- Power: 21000 Btu
- Wi-Fi Optional (Code BRP069B45)
Technical Specifications
| Cooling Capacity | Min. | kW | 1.80 |
| Max. | kW | 7.00 | |
| Heating Capacity | Min. | kW | 1.48 |
| Max. | kW | 8.00 | |
| Nominal Efficiency | COP | 3.71 | |
| EER | 3.25 | ||
| Energy Class | Cooling | A++ | |
| Heating | A+ | ||
| Annual Energy Consumption | Cooling | kWh/a | 343 |

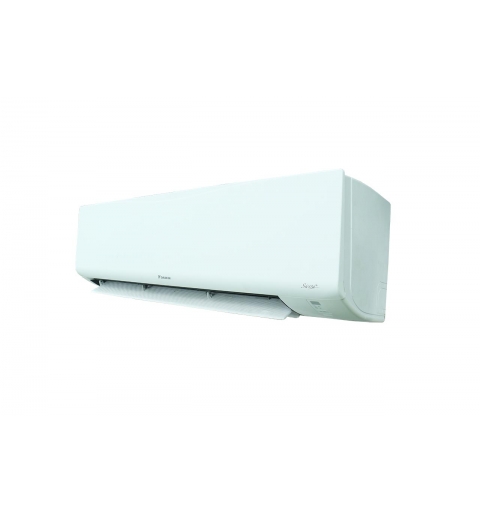

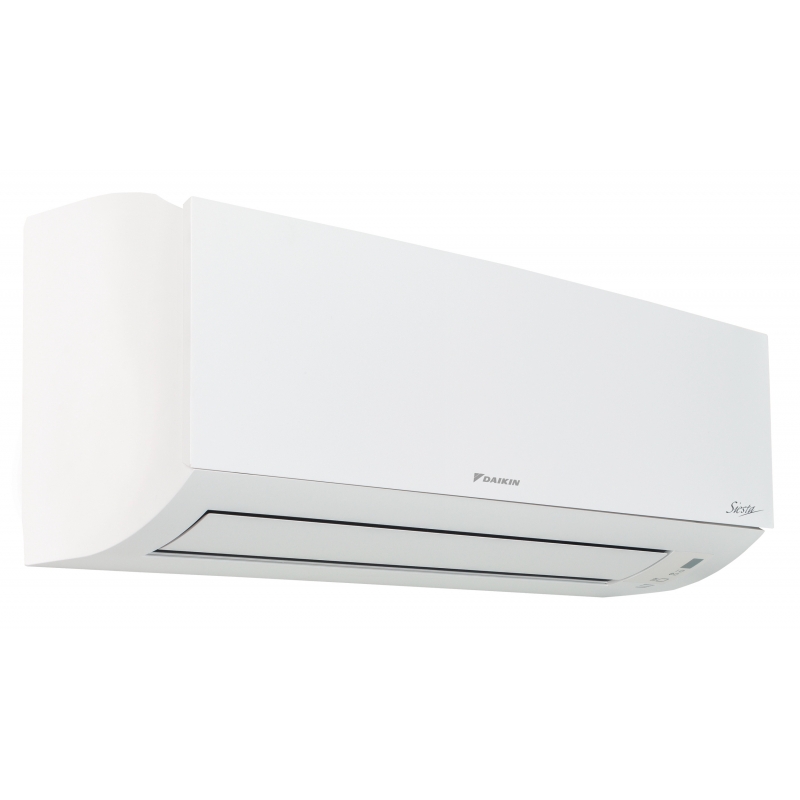

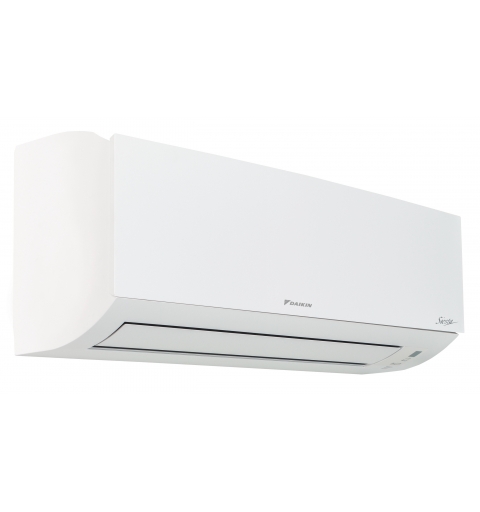

Technical Specifications Indoor Unit
| Description | Mode | Type | Value | Unit |
|---|---|---|---|---|
| Power Consumption | Cooling | Nom. | 1.92 | kW |
| Heating | Nom. | 1.73 | kW | |
| Casing | Colour | White | ||
| Dimensions | Unit | Height | 297 | mm |
| Width | 990 | mm | ||
| Depth | 273 | mm | ||
| Weight | Unit | 13 | kg | |
| Fan | Airflow Cooling | High | 20.4 | m³/min |
| Medium | 14.5 | m³/min | ||
| Low | 12.5 | m³/min | ||
| Quiet Operation | 10.2 | m³/min | ||
| Sound Power | Cooling | 63.0 | dBA | |
| Sound Pressure Level | Cooling | High | 45.0 | dBA |
| Medium | 41.0 | dBA | ||
| Low | 36.0 | dBA | ||
| Quiet Operation | 33.0 | dBA | ||
| Heating | High | 44.0 | dBA | |
| Medium | 40.0 | |||
| Low | 35.0 | |||
| Quiet Operation | 32.0 | dBA | ||
| Piping connections | Liquid | DE | 6.35 | mm |
| Gas | DE | 12.7 | mm | |
| Filter | Type | Removable / Washable | ||

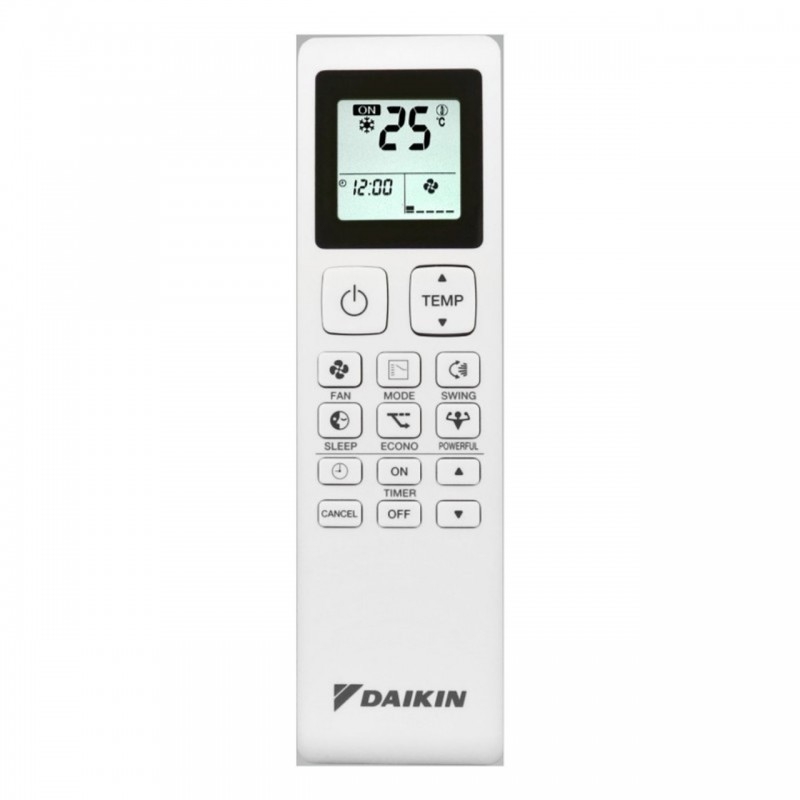

| Control systems | Infrared remote control | ARC486A2 | ||
| Standard Accessories | Installation manual | 1 | ||
| User manual | 1 | |||
| General safety measures | 1 | |||
| Infrared remote control | 1 | |||
| AAA dry batteries | 2 | |||
| Remote control holder | 1 | |||
| Mounting plate | 1 | |||
| Indoor unit mounting screws | 2 | |||
| Power Supply | Phase | 1~ | ||
| Frequency | 50 | Hz | ||
| Voltage | 220-440 | V |

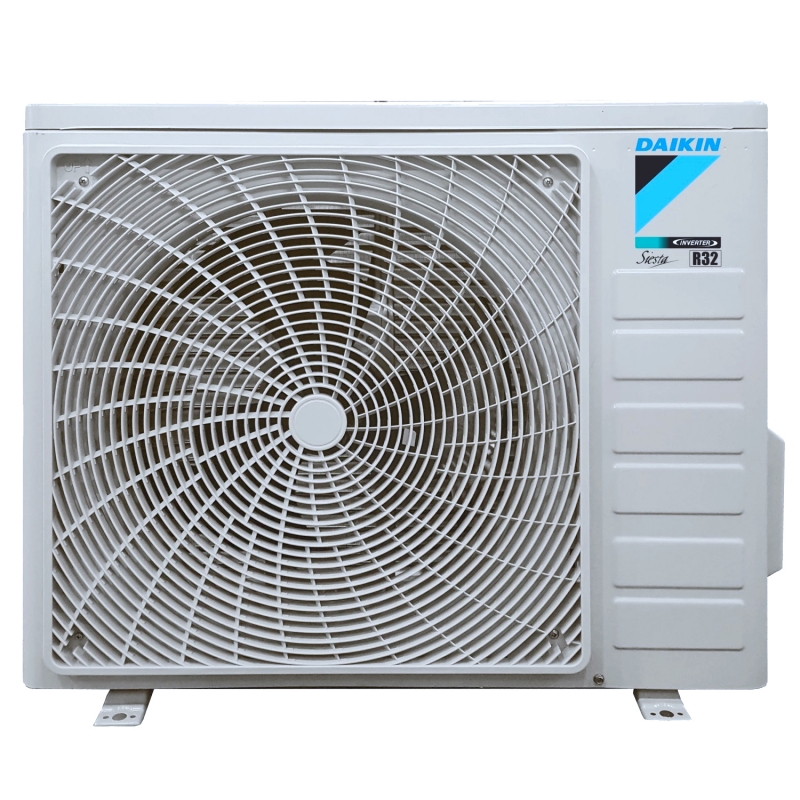

Technical Specifications Outdoor Unit
| Description | Mode | Type | Value | Unit |
|---|---|---|---|---|
| Dimensions | Unit | Height | 615 | mm |
| Width | 845 | mm | ||
| Depth | 300 | mm | ||
| Weight | Unit | 39 | kg | |
| Operating Range | Cooling | Min. outdoor temp. | -10 | °C |
| Max. | 46 | °C | ||
| Heating | Min. outdoor temp. | -15 | °C | |
| Max. | 20 | °C | ||
| Sound Pressure Level | Cooling | High | 54 | dBA |
| Heating | High | 66 | dBA | |
| Refrigerant | Type | R-32 | ||
| Charge | 1.10 | kg | ||
| GWP | 675.0 | |||
| Piping connections | Height difference | max. indoor - outdoor | 20 | m |
| Additional refrigerant charge | 0.017 (for piping lengths over 7.5m) | kg/m | ||
| Standard Accessories | Installation manual | 1 | ||
| Drain plug | 1 | |||
| Refrigerant charge label | 1 | |||
| Multilingual labels on fluorinated greenhouse gases | 1 | |||
| General safety measures | 1 | |||
| Power Supply | Phase | 1~ | ||
| Frequency | 50 | Hz | ||
| Voltage | 220-240 (20A max fuse rating) | V |
____
Advantages
Energy-saving standby mode
Energy consumption is reduced by about 80% in standby mode. If no presence is detected for more than 20 minutes, the system automatically switches to energy-saving mode.
Onecta App
Ability to control the indoor unit from anywhere via app.
Inverter
Inverter-driven compressors adjust the compressor speed to match the actual demand. This helps limit starts and stops, reducing energy consumption (up to 30%) while maintaining more stable temperatures.
Fan-only mode
The unit can also be used in fan-only mode, without cooling or heating.
Comfort Mode
Ensures optimal operation without generating annoying drafts, preventing cold or hot air from being blown directly onto people.
Powerful Mode
Allows for rapid cooling or heating of the environment; once the “Powerful” mode is turned off, the unit returns to the preset mode.
Automatic operation mode switching
Automatically selects cooling or heating mode to maintain the set temperature
Comfortable "sleep" mode
This innovative mode increases comfort by managing temperature fluctuations during the night.
Automatic vertical oscillation
Ability to select automatic vertical movement of the air deflectors, to make airflow and temperature distribution uniform throughout the room.
Automatic fan speed adjustment
Automatically selects the fan speed to reach or maintain the set temperature.
Step fan speed
Allows selection of different fan speed values
Dehumidification program
Manages the reduction of humidity in the air without excessive cooling.
Air filter
Eliminates dust particles dispersed in the air, improving air quality
24-hour timer
Can be set to start the unit at any time within a 24-hour period

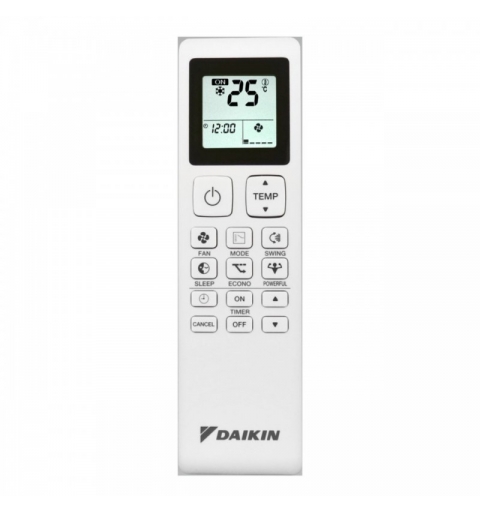

Infrared remote control
Allows control of the air conditioner's functions from a distance
Automatic restart function
After a power interruption, the unit automatically restarts with the original settings.
Self-diagnosis
Simplifies maintenance by indicating system malfunctions or operational anomalies.
