Garanzia3 Gr3V500 3-Year Extended Warranty Coverage for Products up to €500
Gardena 9023-20, 800 W, AC, 4.1 bar, 3700 l/h, Black
Gardena 9023-20 water pump 800 W 4.1 bar 3700 l/h
€168.84 Tax included
Article Code: 610604
2-Year Italian Warranty:

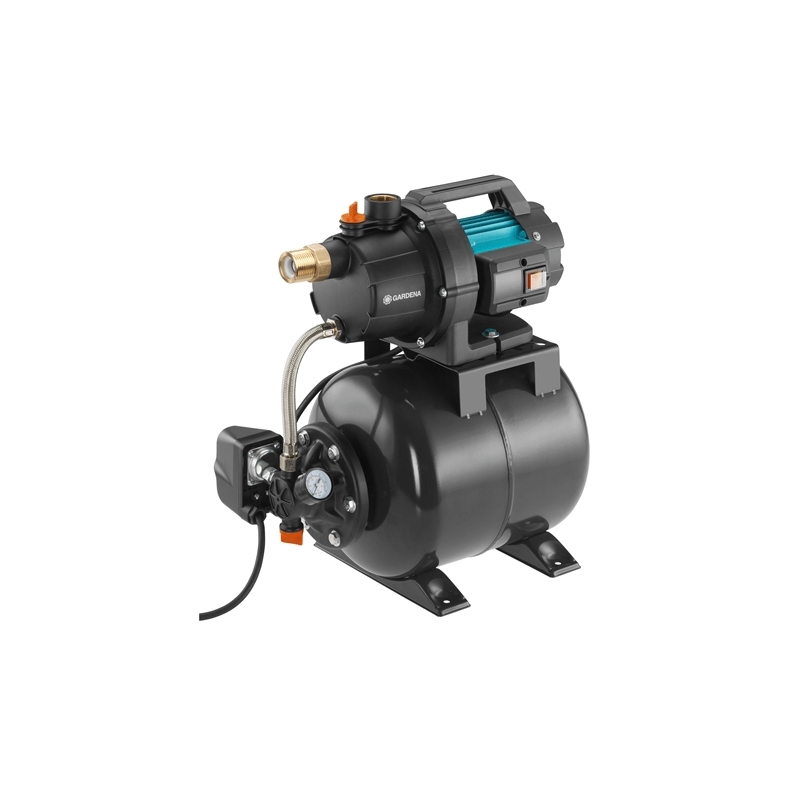

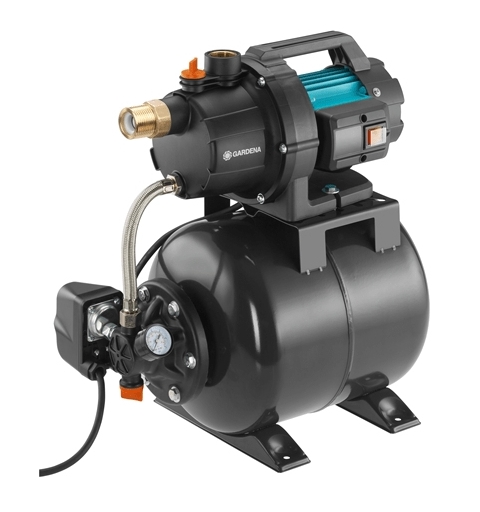

Gardena 9023-20, 800 W, AC, 4.1 bar, 3700 l/h, Black
Sustainable, efficient, and powerful
The Pressure Tank Unit 3700/4 is both sustainable and environmentally friendly, as well as being particularly efficient thanks to its powerful output. The 800 W motor delivers a maximum pressure of 4.1 bar and 3700 litres of water can be pumped per hour. Whether for washing machines, toilets or watering the garden - the water goes exactly where it is needed.
User-friendly and easy to operate
The Pressure Tank Unit is easy to operate as well as being simple to fill or empty the 19-litre water tank with a durable, low-maintenance EPDM membrane.
Robust, safe, and compact
The compact Pressure Tank Unit 3700/4 is space-saving and has an especially durable, glass-fibre reinforced plastic housing and a ceramic double-sealing system. The non-return valve and the high-quality brass threaded inserts ensure problem-free connection, even with fixed piping.
Quick and easy installation

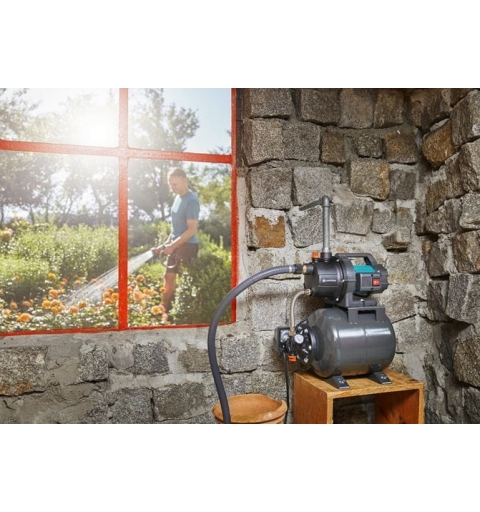

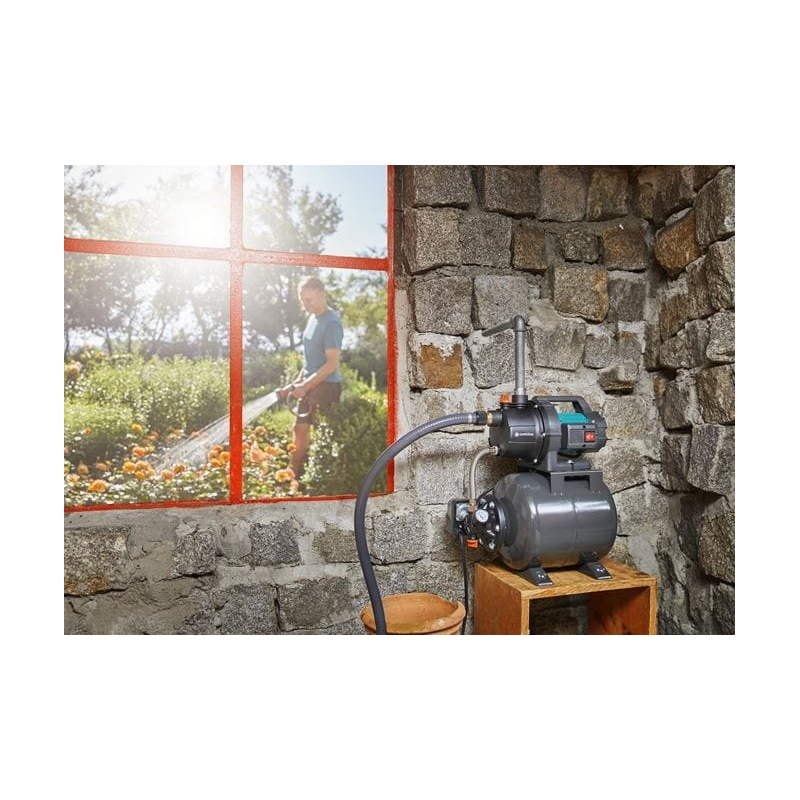

The installation and integration of the Pressure Tank Unit into existing plumbing systems, for example in the laundry room or a garden system, is particularly simple and stress-free.
Pressure gauge and additional G1" double adaptor
In addition to a built-in pressure gauge, the Pressure Tank Unit 3700/4 has an additional G1" double connector outlet. This connection allows the simple and uncomplicated connection of OGS elements for even more versatility.
Brass non-return valve
The essential non-return valve is already included with this product. Thanks to high-quality brass G1" external thread, the unit is compatible with a wide range of pipes and hoses without extra adapters.
Powerful and sustainable water supply for home and garden
The GARDENA Pressure Tank Unit 3700/4 is a sustainable and powerful solution for automated water supply in the home and garden. After a simple installation, the domestic tank unit becomes an integral part of the plumbing system and allows you to use rainwater or well water for watering the garden or as service water in your household, for example for toilets. The water collected in wells, cisterns or rain barrels is moved by the powerful electric pump to where it is needed in the house and garden. The Pressure Tank Unit 3700/4 delivers an impressive output of 4.1 bar at 800 W and can pump up to 3700 litres of water per hour from a depth of up to 7 metres. It has a 19-litre water tank with a low-maintenance EPDM membrane and can be easily filled or emptied manually. A drain plug allows the water to be quickly drained from the tank, for example when frost is forecasted. The compact Pressure Tank Unit from GARDENA not only saves space, but also impresses with a robust glass-fibre reinforced plastic housing and a ceramic double-sealing system with a pump shaft made of stainless steel. An integrated thermal stop switch protects it from any risk of overheating damage. It has a non-return valve and high-quality brass threaded inserts. These aspects not only increase the durability, but also make it easier for you to use the unit as a reliable, low-maintenance permanent fixture in your home's plumbing. The practical pressure gauge always shows the current pressure in the storage tank. The additional G1" double connection outlet makes the use of the Pressure Tank Unit 3700/4 even more versatile, as you can attach high-quality original GARDENA System products and accessories. You receive 5-year warranty from GARDENA on this sustainable, powerful, and German-engineered domestic Pressure Tank Unit with a simple online registration. Feel the power of GARDENA pumps with more than 40 years' experience in drainage, irrigation, and domestic use.
Gardena 9023-20. Proper use: Water-supply, Product colour: Black. Maximum operating pressure: 4.1 bar, Maximum delivery height: 41 m, Flow rate: 3700 l/h. Power: 800 W, Power source type: AC, Power cable type: H05 RNF. Connecting thread type: G1. Quantity per pack: 1 pc(s)
The Pressure Tank Unit 3700/4 is both sustainable and environmentally friendly, as well as being particularly efficient thanks to its powerful output. The 800 W motor delivers a maximum pressure of 4.1 bar and 3700 litres of water can be pumped per hour. Whether for washing machines, toilets or watering the garden - the water goes exactly where it is needed.
User-friendly and easy to operate
The Pressure Tank Unit is easy to operate as well as being simple to fill or empty the 19-litre water tank with a durable, low-maintenance EPDM membrane.
Robust, safe, and compact
The compact Pressure Tank Unit 3700/4 is space-saving and has an especially durable, glass-fibre reinforced plastic housing and a ceramic double-sealing system. The non-return valve and the high-quality brass threaded inserts ensure problem-free connection, even with fixed piping.
Quick and easy installation
The installation and integration of the Pressure Tank Unit into existing plumbing systems, for example in the laundry room or a garden system, is particularly simple and stress-free.
Pressure gauge and additional G1" double adaptor
In addition to a built-in pressure gauge, the Pressure Tank Unit 3700/4 has an additional G1" double connector outlet. This connection allows the simple and uncomplicated connection of OGS elements for even more versatility.
Brass non-return valve
The essential non-return valve is already included with this product. Thanks to high-quality brass G1" external thread, the unit is compatible with a wide range of pipes and hoses without extra adapters.
Powerful and sustainable water supply for home and garden
The GARDENA Pressure Tank Unit 3700/4 is a sustainable and powerful solution for automated water supply in the home and garden. After a simple installation, the domestic tank unit becomes an integral part of the plumbing system and allows you to use rainwater or well water for watering the garden or as service water in your household, for example for toilets. The water collected in wells, cisterns or rain barrels is moved by the powerful electric pump to where it is needed in the house and garden. The Pressure Tank Unit 3700/4 delivers an impressive output of 4.1 bar at 800 W and can pump up to 3700 litres of water per hour from a depth of up to 7 metres. It has a 19-litre water tank with a low-maintenance EPDM membrane and can be easily filled or emptied manually. A drain plug allows the water to be quickly drained from the tank, for example when frost is forecasted. The compact Pressure Tank Unit from GARDENA not only saves space, but also impresses with a robust glass-fibre reinforced plastic housing and a ceramic double-sealing system with a pump shaft made of stainless steel. An integrated thermal stop switch protects it from any risk of overheating damage. It has a non-return valve and high-quality brass threaded inserts. These aspects not only increase the durability, but also make it easier for you to use the unit as a reliable, low-maintenance permanent fixture in your home's plumbing. The practical pressure gauge always shows the current pressure in the storage tank. The additional G1" double connection outlet makes the use of the Pressure Tank Unit 3700/4 even more versatile, as you can attach high-quality original GARDENA System products and accessories. You receive 5-year warranty from GARDENA on this sustainable, powerful, and German-engineered domestic Pressure Tank Unit with a simple online registration. Feel the power of GARDENA pumps with more than 40 years' experience in drainage, irrigation, and domestic use.
Gardena 9023-20. Proper use: Water-supply, Product colour: Black. Maximum operating pressure: 4.1 bar, Maximum delivery height: 41 m, Flow rate: 3700 l/h. Power: 800 W, Power source type: AC, Power cable type: H05 RNF. Connecting thread type: G1. Quantity per pack: 1 pc(s)
| Caratteristiche | |
| Uso appropriato | Fornitura d'acqua |
| Adatto per uso interno | Sì |
| Colore del prodotto | Nero |
| Dettagli tecnici | |
| Durata della garanzia | 5 anno/i |
| Prestazione | |
| Massima pressione operativa | 4,1 bar |
| Altezza massima di aspirazione | 7 m |
| Altezza massima di consegna | 41 m |
| Tasso del flusso | 3700 l/h |
| Massima temperatura acqua | 35 °C |
| Capo consegna | 41 m |
| Gestione energetica | |
| Potenza | 800 W |
| Tipologia alimentazione | AC |
| Tipo di cavo di alimentazione | H05 RNF |
| Ergonomia | |
| Ruote per il trasporto | No |
| Maniglia(e) per il trasporto | Sì |
610604
In Stock
Data sheet
- Product colour
- Black
- Suitable for indoor use
- Yes
- Power
- 800 W
- Quantity per pack
- 1 pc(s)
- Warranty period
- 5 year(s)
- Power source type
- AC
- Carrying handle(s)
- Yes
- Proper use
- Water-supply
- Maximum input water temperature
- 35 °C
- Maximum operating pressure
- 4.1 bar
- Flow rate
- 3700 l/h
- Maximum delivery height
- 41 m
- Maximum suction height
- 7 m
- Power cable type
- H05 RNF
- Delivery head
- 41 m
- Transport wheels
- No
- Connecting thread type
- G1
