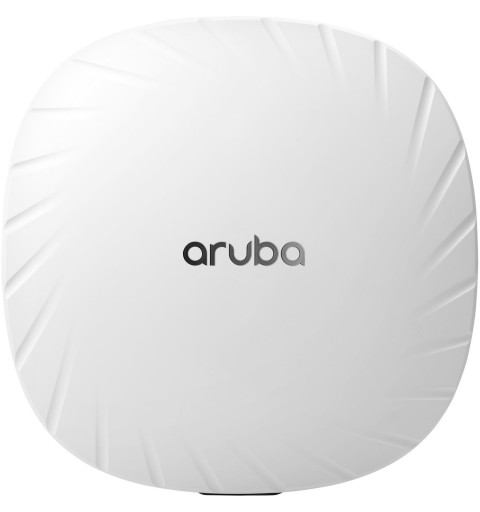

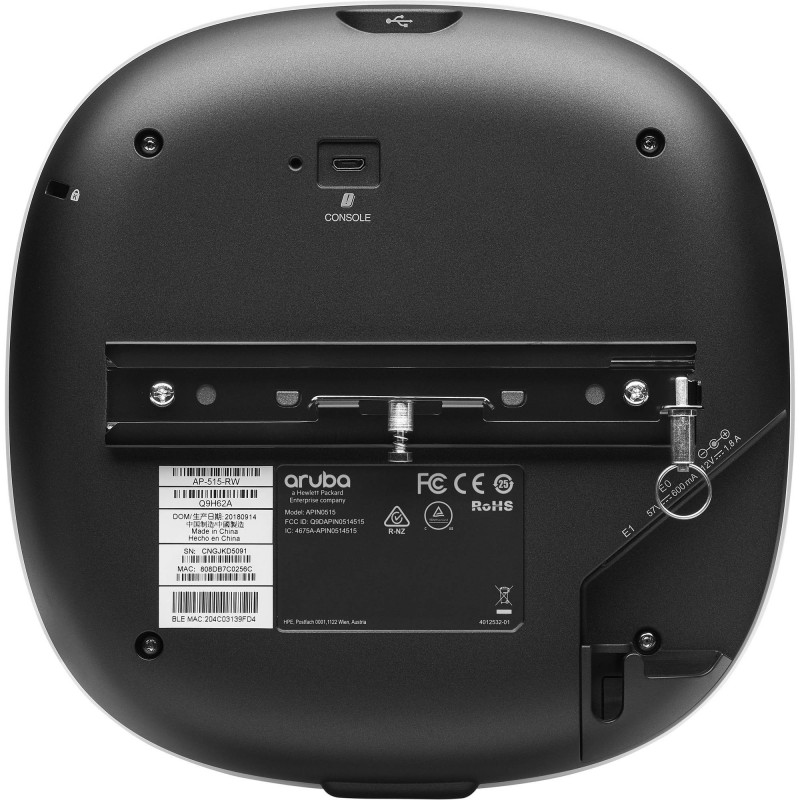

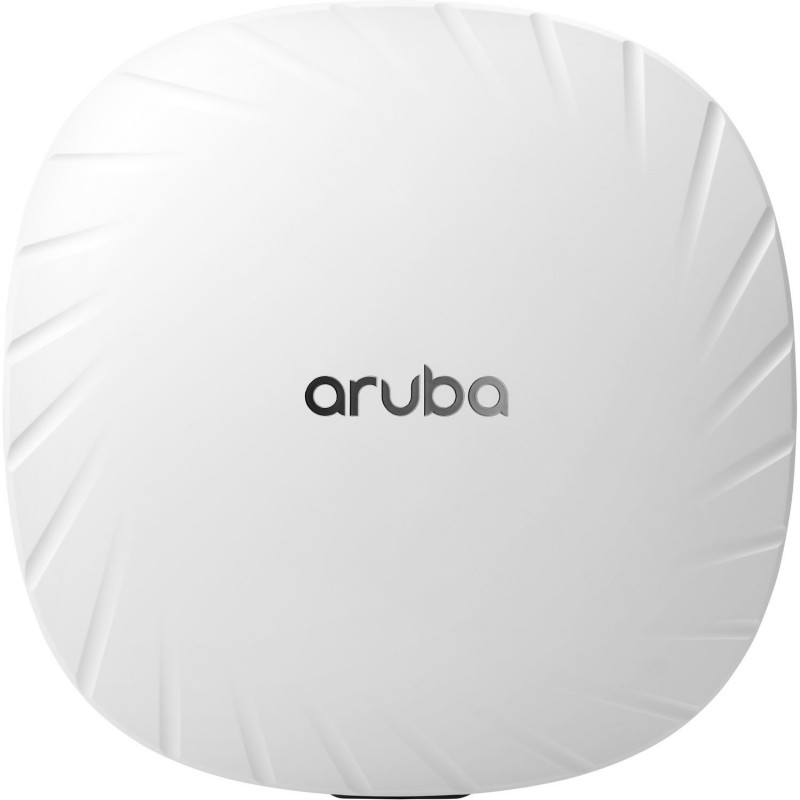

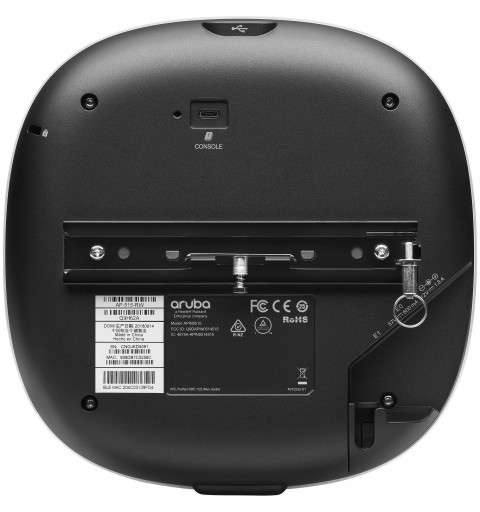

Aruba AP-515 (RW) 5375 Mbit/s White Power over Ethernet (PoE)

The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.

The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Aruba AP-515 (RW). Maximum data transfer rate: 5375 Mbit/s, Maximum data transfer rate (2.4 GHz): 575 Mbit/s, Maximum data transfer rate (5 GHz): 4800 Mbit/s. Security algorithms: WMM, WPA, WPA2. USB connector type: USB Type-A. Power consumption (typical): 16 W. Placement: Ceiling, Product colour: White, Cable lock slot type: Kensington

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	5375 Mbit/s
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Auto MDI/MDI-X	Yes
MIMO	Yes
Spread spectrum method	DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Security
Security algorithms	WMM, WPA, WPA2
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB connector type	USB Type-A
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Power consumption (typical)	16 W
Design
Placement	Ceiling
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	7.5 dBi
Weight & dimensions
Width	200 mm
Depth	200 mm
Height	46 mm
Weight	810 g
Packaging data
Package width	230 mm
Package depth	220 mm
Package height	72 mm
Package weight	1.01 kg
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
Logistics data
Harmonized System (HS) code	85176990
