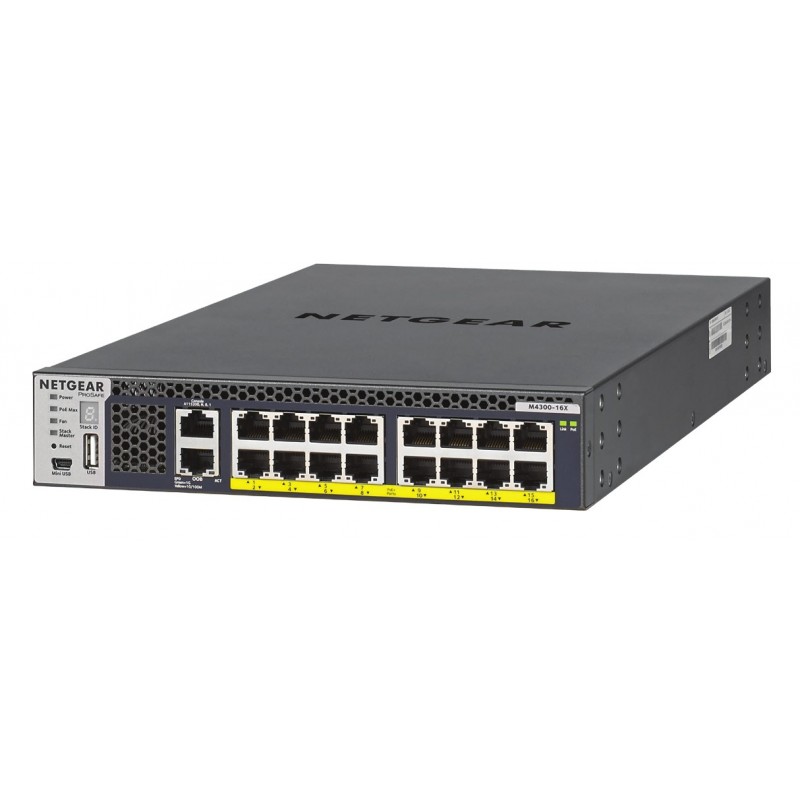

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

NETGEAR M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Auto-sensing	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4093
Data transmission
MAC address table	16000 entries
Switching capacity	320 Gbit/s
Throughput	238 Mpps
Store-and-forward	Yes
Number of queues	8
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	9000
Security
DHCP features	DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication
Multicast features
Multicast support	Yes
Number of multicast groups filtered	4000
Protocols
Routing protocols	OSPF, OSPFv3, RIP, RIP-1, RIP-2
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Airflow direction	Front-to-back airflow
Performance
Physical stacking (units)	8
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Noise level	36 dB
Mean time between failures (MTBF)	690301 h
Power
Power supply included	Yes
Number of power supply units	1
Power consumption (max)	49 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	199 W
Operational conditions
Heat dissipation	186 BTU/h
Weight & dimensions
Width	212 mm
Depth	345 mm
Height	44 mm
Weight	3.22 kg
Logistics data
Harmonized System (HS) code	85176990
